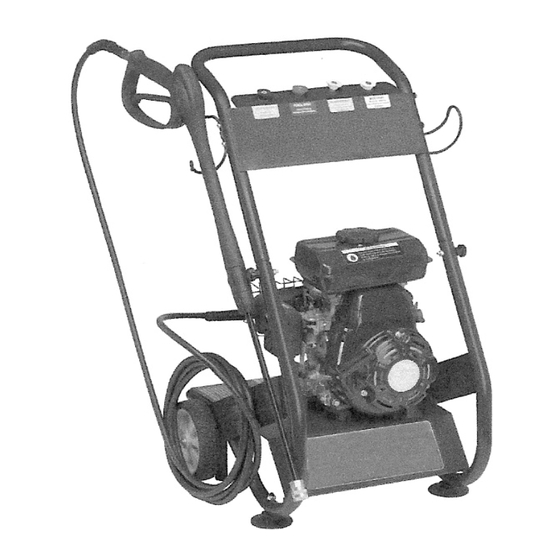

GAS PRESSURE WASHER
ASSEMbly And OPERAtInG InStRUctIOnS
your warranty is voided if you do not put engine oil in the Engine's crankcase
prior to its first use.
Before each use, check the oil level. Never run the Engine with low or no engine oil.
Running the Engine with low or no oil will permanently damage the unit.
Diagrams within this manual may not be drawn proportionally.
Due to continuing improvements, actual product may differ slightly from the product described herein.
distributed exclusively by Harbor Freight tools
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE tHIS MAnUAl.
Copyright
2007 by Harbor Freight Tools
©
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.
2.5 HP - 1300 PSI
Model
cAUtIOn
3491 Mission Oaks Blvd., Camarillo, CA 93011
cover Revised 07h
95156
. All rights reserved. No portion of this
®
.
®
Advertisement
Table of Contents
Related Manuals for Pacific hydrostar 95156
Summary of Contents for Pacific hydrostar 95156
-
Page 1: Assembly And Operating Instructions
GAS PRESSURE WASHER 2.5 HP - 1300 PSI Model 95156 ASSEMbly And OPERAtInG InStRUctIOnS cAUtIOn your warranty is voided if you do not put engine oil in the Engine’s crankcase prior to its first use. Before each use, check the oil level. Never run the Engine with low or no engine oil. -
Page 2: Specifications
Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury. SAVE tHESE InStRUctIOnS WORK AREA Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. REV 07h SKU 95156 For technical questions, please call 1-800-444-3353. Page 2... -
Page 3: Personal Safety
Any tool that cannot be controlled with its power switch is dangerous and must be replaced. Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users. SKU 95156 For technical questions, please call 1-800-444-3353. Page 3... -
Page 4: Specific Safety Rules And Precautions
Pressure Washer unattended when it is running. Turn off the Engine before leaving. do not allow children and other unauthorized people to handle or play with the Pressure Washer. SKU 95156 For technical questions, please call 1-800-444-3353. Page 4... -
Page 5: Mechanical Precautions
Engine and Pressure Washer to completely cool. then, remove the spark plug from the Engine. do not alter or adjust any part of the Pressure Washer or Engine that is as- sembled and supplied by the manufacturer. SKU 95156 For technical questions, please call 1-800-444-3353. Page 5... -
Page 6: Chemical Precautions
The brass components of this product contain lead, a chemical known to the State of California to cause birth defects (or other reproductive harm). (California Health & Safety code § 25249.5, et seq.) SKU 95156 For technical questions, please call 1-800-444-3353. Page 6... -
Page 7: Assembly Instructions
15W-40 SAE grade engine oil. To do so, unscrew and remove the Engine Oil Dipstick (30). Pour approximately 1 quart of engine oil into the Dipstick Hole. Do not overfill. (See Figure A.) SKU 95156 For technical questions, please call 1-800-444-3353. Page 7... -
Page 8: Fill The Fuel Tank
Then, replace the Fuel Cap. Thereafter, check the Fuel Tank (102) for the amount of unleaded gasoline. When necessary, refill the Fuel Tank. (See Figure b.) WARNING! Never attempt to fill the Fuel Tank (102) when the Engine is running. SKU 95156 For technical questions, please call 1-800-444-3353. Page 8... -
Page 9: Attach The Wheels
Attach the Wheels: Remove the two Nuts (191) by turning each one counterclockwise. Press each Wheel (194) onto the axle. Secure them using the Nuts (191). (See Figure C). REV 08b SKU 95156 For technical questions, please call 1-800-444-3353. Page 9... -
Page 10: Spray Nozzle Selection
(See Figure d.) 40° low Pressure (blAcK): Provides low pressure spray and a wide cover- age. Use primarily when operating the chemical injector to apply chemicals. (See Figure d.) SKU 95156 For technical questions, please call 1-800-444-3353. Page 10... -
Page 11: Operating Instructions
Check to make sure the Fuel Tank (102) is filled with unleaded gasoline. Also, make sure the Engine and Pump unit have the proper level of oil. (See Figures A, b, and c.) SKU 95156 For technical questions, please call 1-800-444-3353. Page 11... -
Page 12: Cleaning Techniques
Make sure the hold the Nozzle (200) far enough away from the surface to avoid damage to the surface. (See Figure d.) SKU 95156 For technical questions, please call 1-800-444-3353. Page 12... - Page 13 When finished using the Pressure Washer, turn the Engine’s Power Switch (86) to its “OFF” position. Make sure to allow the Pressure Washer and its Engine to completely cool before moving the Pressure Washer or storing the unit. (See Figure b.) SKU 95156 For technical questions, please call 1-800-444-3353. Page 13...
-
Page 14: Inspection, Maintenance, And Cleaning
Refer to the Engine manufacturer’s manual for complete inspection, maintenance, and cleaning instructions. CAUTION! All maintenance, service, or repairs not mentioned in this manual must only be performed by a qualified service technician. SKU 95156 For technical questions, please call 1-800-444-3353. Page 14... -
Page 15: Troubleshooting
TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISKS AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. SKU 95156 For technical questions, please call 1-800-444-3353. Page 15... -
Page 16: Parts List
Air Cleaner Bracket Needle Valve Air Cleaner Foam Main Jet Air Cleaner Cover Main Nozzle Self Tapping Screw (ST4 x 10) Mixture Chamber Body Nut (M6) Choke Unit Oil Box SKU 95156 For technical questions, please call 1-800-444-3353. Page 16... - Page 17 High Pressure Hose O-Ring (12.4 x 1.8 x 1) High Pressure Gun Screw (ZG) Nozzle Support Sheet Trigger Single Direction Valve Crest Pole Spray Wand Spring Handle Single Direction Valve Chemical Hose SKU 95156 For technical questions, please call 1-800-444-3353. Page 17...
-
Page 18: Assembly Diagram
ASSEMbly dIAGRAM Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. SKU 95156 For technical questions, please call 1-800-444-3353. Page 18... - Page 19 ASSEMbly dIAGRAM - cOntInUEd SKU 95156 For technical questions, please call 1-800-444-3353. Page 19...
- Page 20 ASSEMbly dIAGRAM - cOntInUEd SKU 95156 For technical questions, please call 1-800-444-3353. Page 20...
-
Page 21: Emission Control System Warranty
(d) improper or inadequate maintenance of any warranted parts (e) repairs performed outside of the authorized warranty service dealers alterations by changing, adding to or removing parts from the engine. SKU 95156 For technical questions, please call 1-800-444-3353. Page 21... - Page 22 System (if so equipped) Exhaust pipe stud. Muffler. iii) Catalytic converter (if so equipped). Miscellaneous items Used in Above Systems Vacuum, temperature and time sensitive valves and switches. Hoses, belts, connectors, and assemblies. SKU 95156 For technical questions, please call 1-800-444-3353. Page 22...
- Page 23 This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353 SKU 95156 For technical questions, please call 1-800-444-3353. Page 23...
