Pacific hydrostar PACIFIC HYDROSTRAR 97005 Set Up And Operating Instructions Manual

Pacific hydrostar PACIFIC HYDROSTRAR 97005 Set Up And Operating Instructions Manual

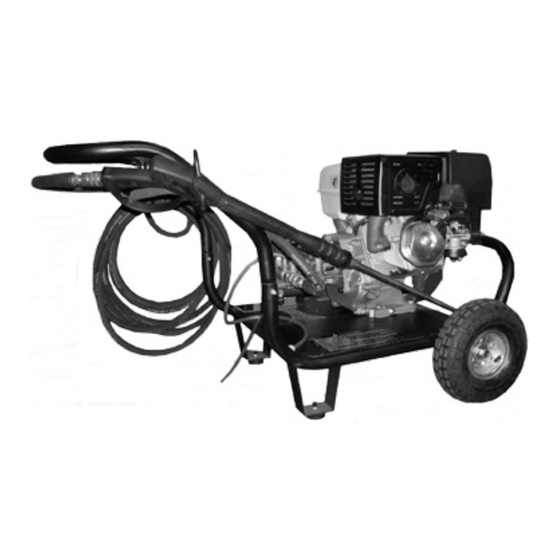

Gasoline pressure washer 13 hp - 4,000 psi
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GASOLINE PRESSURE WASHER
SEt UP, OPERAtING, ANd SERvIcING INStRUctIONS
visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAvE tHIS MANUAL.
©
Copyright
2007 by Harbor Freight Tools
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
13 HP - 4,000 PSI
Model
®
. All rights reserved. No portion of this manual or any artwork
97005
Using an engine indoors cAN KILL YOU IN
MINUtES.
Engine exhaust contains carbon monoxide.
this is a poison you cannot see or smell.
NEvER use inside
a home or garage,
EvEN IF doors and
windows are open.
Only use OUtSIdE
and far away from
windows, doors, and
vents.
Manual Revised 11h

Advertisement

Table of Contents
loading

Related Manuals for Pacific hydrostar PACIFIC HYDROSTRAR 97005

Summary of Contents for Pacific hydrostar PACIFIC HYDROSTRAR 97005

  • Page 1 Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.

  • Page 2: Table Of Contents

    tAbLE OF cONtENtS Important Safety Information...3 Set-Up Precautions...4 Operating Precautions...4 Basic Specifications...6 Unpacking...7 Set-Up Instructions...7 Operating Instructions...8 Starting the Engine...9 Operating tips...11 Technical Specifications...14 Servicing...14 troubleshooting...17-18 Pump Parts List...19 Pump Assembly diagram...20 Engine Parts List...21-22 Engine Assembly diagram...23 Frame, Lance, Hose, Wheel Parts List & Assembly diagram...24 Warranty Information...25-26 SKU 97005 For technical questions, please call 1-800-444-3353.

  • Page 3: Important Safety Information

    SAvE tHIS MANUAL Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number).

  • Page 4: Set-Up Precautions

    SEt UP PREcAUtIONS Gasoline fuel and fumes are flammable, and potentially explosive. Use proper fuel storage and handling procedures. Do not store fuel or other flammable materials nearby. Have multiple ABC class fire extinguishers nearby. This equipment may not have a spark arresting muffler included.
  • Page 5 necessary when near the engine’s magneto or recoil starter. Use only accessories that are recommended by Harbor Freight Tools for your model. Accessories that may be suitable for one piece of equipment may become hazardous when used on another piece of equipment.

  • Page 6: Service Precautions

    Pressure Washer itself. do not direct the water jet at yourself, others or pets. Do not use the Pressure Washer to pump gasoline, kerosene, or any other flammable or corrosive liquids. Do not leave the Pressure Washer unattended while the machine is running.

  • Page 7: Basic Specifications

    Maintain labels and nameplates on the equipment. These carry impor- tant information. If unreadable or missing, contact Harbor Freight Tools for a replacement. Have the equipment serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the equip- ment is maintained.

  • Page 8: Unpacking

    UNPAcKING When unpacking, check to make sure that the item is intact and undamaged. If any parts are missing or broken, please call Harbor Freight Tools at 1-800-444-3353 as soon as possible. SEt UP INStRUctIONS Read the ENtIRE IMPORtANt SAFEtY INFORMAtION...

  • Page 9: Operating Instructions

    INLEt cONNEctOR (59) OUtLEt cONNEctOR (55) dEtERGENt HOSE FIGURE c SPRAY GUN (6) HOSE (8) Attach the Hose (8) to the Spray Gun (6). Connect the other end of the Hose to the Outlet Connector (55). Connect a garden hose to the Inlet Connector (59).

  • Page 10: Starting The Engine

    Starting the Engine Inspect engine and equipment looking for damaged, loose, and missing parts before set up and starting. If any problems are found, do not use equipment until fixed properly. checking Engine Oil Level cAUtION! Your Warranty is VOID if the engine’s Crankcase (13) is not properly filled with oil before each use.
  • Page 11 Mix fuel stabilizer (not included) with 89 octane (or better) unleaded gaso- line according to fuel stabilizer direc- tions. Fill the Fuel Tank (101) to about 1 inch under the lip of the gasoline tank with the stabilized unleaded gasoline mixture.

  • Page 12: Operating Tips

    Choke (41) to its “RUN” position. (See Figure E.) Pressure Washer Operation IMPORtANt! NEvER allow the Pressure Washer to sit idle with the Engine running for longer than two minutes. The unit will build up heat when it is on standby mode.
  • Page 13 Washer to clean patio paving slabs, it is advisable to test a small area first. Some paving slabs are manufactured from inferior materials and the use of a Pressure Washer could damage the surface. Using the detergent Hose Fill a suitable container with pressure washer detergent.
  • Page 14 If detergent is to be applied, use only pressure washing detergent. Other detergents may clog or damage the Pressure Washer. Apply the deter- gent at low pressure. Allow the deter- gent several minutes to sit and soak into the work surface. This will im- prove cleaning efficiency.

  • Page 15: Technical Specifications

    tEcHNIcAL SPEcIFIcAtIONS 13 HP / OHV Recoil Start Engine Type Air Cooled 3600 RPM Displacement 390cc Rotation viewed from PTO Counterclockwise (power takeoff - the output (Facing the Shaft) shaft) Type 89+ octane unleaded gasoline Fuel Capacity 1.7 Gallons SAE 25W (above 32° F) Type Engine SAE 15W-40 (at 32°...
  • Page 16 Remove the Drain Plug (14) and, if possible, tilt the Crankcase slightly to help drain the oil out. Recycle used oil. Replace the Drain Plug (14) and tighten it. Refill the oil to the proper level follow- ing the instructions under the “Start- ing the engine”...
  • Page 17 emery paper. If the white insulator is cracked or chipped, the spark plug needs to be replaced. When installing a new spark plug, ad- just the plug’s gap to the specification on the Technical specification chart. Do not pry against the electrode, the spark plug can be damaged.

  • Page 18: Troubleshooting

    Problem Engine will not start FUEL RELATED: No fuel in tank or fuel valve closed. Choke not in start position, especially with cold engine. Low quality or deteriorated, old gasoline. Carburetor not primed. Dirty fuel passageways blocking fuel flow. Carburetor needle stuck. Fuel can be smelled in the air.

  • Page 19: Troubleshooting

    Problem Engine misfires Spark plug wire loose. Incorrect spark plug gap or damaged spark plug. Defective spark plug wire. Old or low quality gasoline. Incorrect compression. Engine stops Low oil shutdown. suddenly Fuel tank empty or full of impure or low quality gasoline.

  • Page 20: Pump Parts List

    PLEASE REAd tHE FOLLOWING cAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF...

  • Page 21: Pump Assembly Diagram

    PUMP ASSEMbLY dIAGRAM SKU 97005 For technical questions, please call 1-800-444-3353. Page 21...

  • Page 22: Engine Parts List

    Part description Starter Handle Flange Bolt (M6 x 8) Engine Switch Fan Cover Flange Bolt (M6 x 12) Shroud Starter Pulley Cooling Fan Flange Nut (M16) Wire Harness Clip Flywheel Oil Seal (35 x 52 x 8) Crank Case Assy. Drain Plug Amplifier Drain Lug Washer...
  • Page 23 Part description Exhaust Pipe Gasket Exhaust Pipe Muffler Stay Spark Arrester Muffler Muffler Guard Tapping Screw (M5 x 8) Flange Bolt (M8 x 40) Oil Cap Crank Case Cover Case Cover Packing Dowel Pin (8 x 12) Dipstick Governor Kit Piston Pin Clip Piston Pin Pistion Ring Set Assy.

  • Page 24: Engine Assembly Diagram

    ENGINE ASSEMbLY dIAGRAM SKU 97005 For technical questions, please call 1-800-444-3353. Page 24...

  • Page 25: Frame, Lance, Hose, Wheel Parts List & Assembly Diagram

    FRAME, LANcE, HOSE, WHEEL PARtS LISt & ASSEMbLY dIAGRAM SKU 97005 For technical questions, please call 1-800-444-3353. Page 25...

  • Page 26: Day Warranty

    The California Air Resources Board (herein CARB), the United States Environmental Protection Agency (herein EPA), and Harbor Freight Tools (herein HFT) are pleased to explain the emission control system warranty on your 1995 and later Small Off-Road Engine (herein engine). In California, the engine must be designed, built and equipped to meet the State’s stringent anti-...
  • Page 27 coverage Exclusions Warranty claims shall be filed in accordance with the provisions of the HFT warranty policy explained in the box at the top of the previous page. HFT shall not be liable for any loss of use of the engine, for any alternative usage, for any damage to goods, loss of time, or inconvenience.
