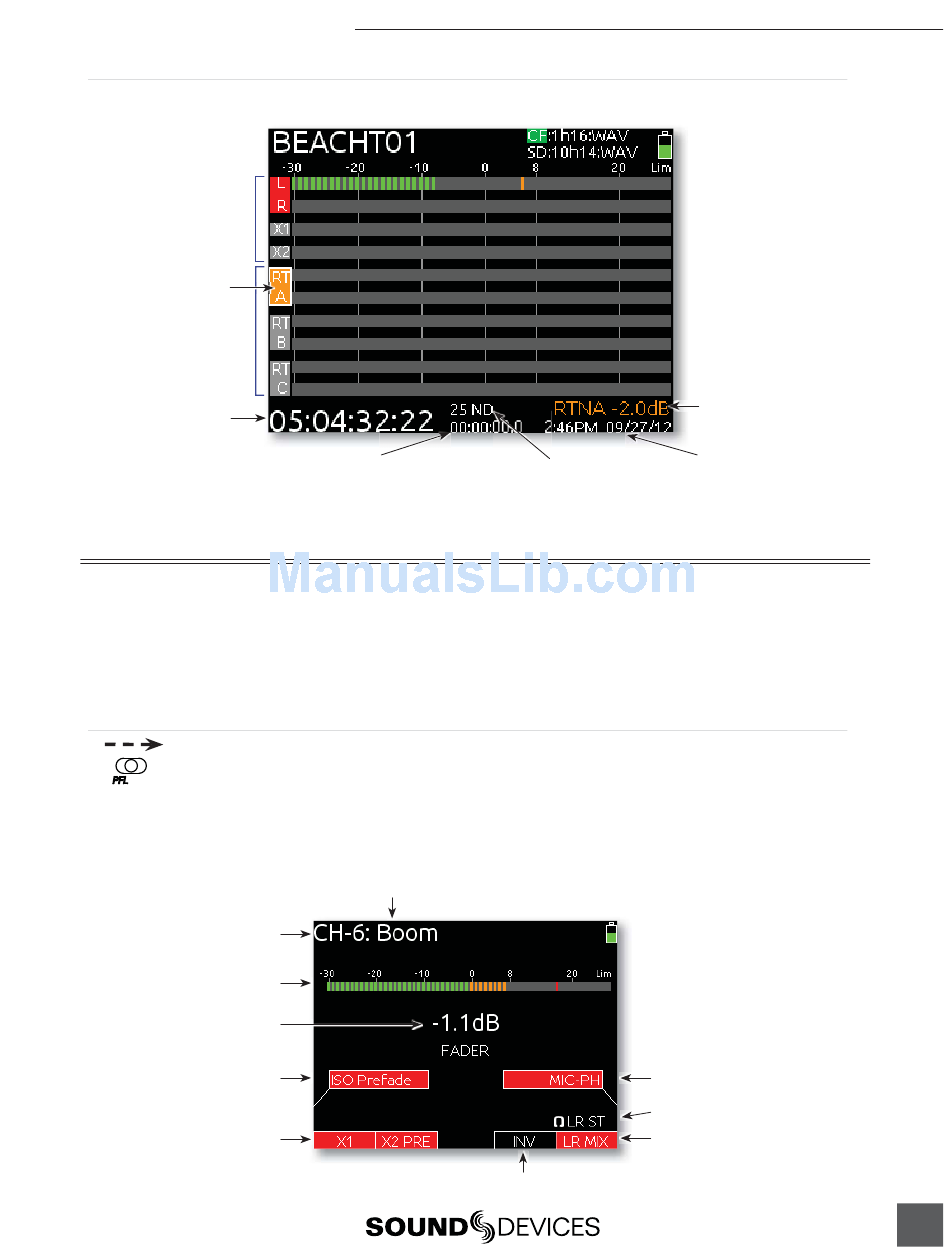

RTN Screen

When the Meters butt on is pressed from the Main Screen, the RTN Screen is shown.
Bus tracks
RTN during gain adjustment
Return inputs
SMPTE Timecode

Input Setup and Control

The 664 has six, full-featured audio inputs on XLR connectors (six additional inputs on TA3 connec-
tors with the optional CL-6 Input Expander att ached). Each analog input has a wide gain range to
accommodate nearly all signal types, from microphones to line-level sources. Inputs can be used as ei-
ther balanced or unbalanced connections. To unbalance, tie pin-3 to pin-1 of the XLR connector. There
is no change in gain between unbalanced and balanced connections into the 664.

Input Settings Screen

Each input's sett ings are accessed through its Input Sett ings Screen. To access the Input Sett ings screen
for an input, slide the Input Selector Switch to the right. The LCD will display information pertaining
to the selected input and provide access to .
Input/Track Number
2) Input Meter
Current Fader Gain
1) ISO Track Status
4) Aux Bus Assignment
Absolute recording time Timecode frame rate
input/Track Name
6) Input Polarity
664 User Guide and Technical Information
Return gain (during adjustment)
Time and date
3) Input Selection
Headphone Source / Level
5) LR Bus Assignment
