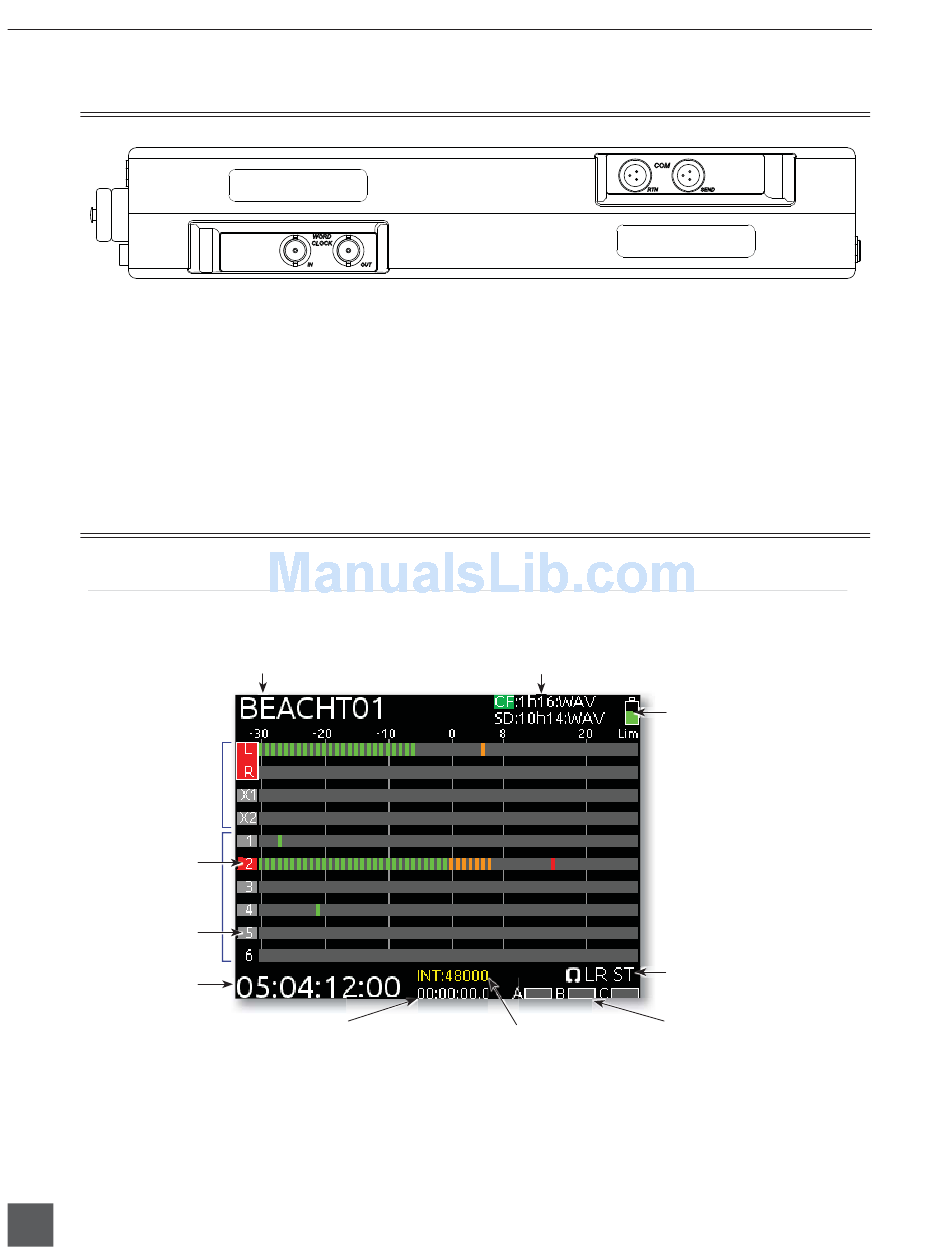

Rear Panel Descriptions

BNC Word Clock Input
1)
Accepts word clock rates between 32 kHz and
48.048 kHz for synchronizing the internal re-
corder to external digital audio devices.
BNC Word Clock Output
2)
Provides word clock signal to synchronize
external digital audio devices to the 664.

Screen Overview

Main Screen

The Main Screen displays important information at-a-glance. The Main Screen can be accessed quickly
from any other screen by pressing the Meters butt on.
Bus tracks
Armed track
Input tracks
Unarmed track
SMPTE Timecode
6
v. 1.0 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
Current take
Absolute recording time
TA3 COM Send
3)
Unbalanced, stereo, line-level output. Program
assigned to COM output from Setup Menu.
TA3 COM Return
4)
Line-level input for return feed from on-set
communications sources.
Media information
Sample rate information
Power source level
Monitor (Headphone) information
RTN levels
