User Manual

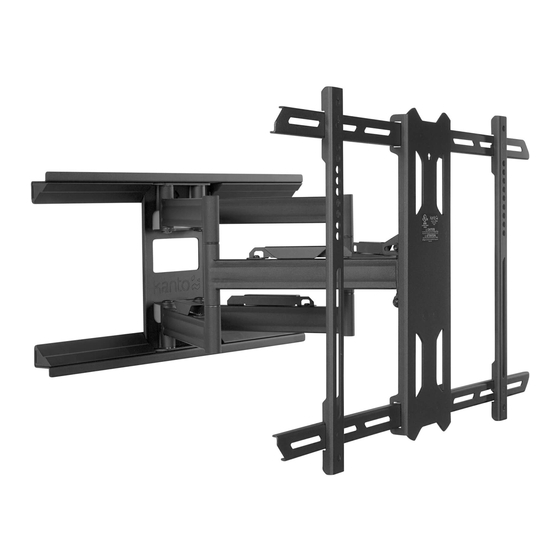

PDX650/PDX650W TV Mount
FULL MOTION FLAT PANEL TV MOUNT
200 x 100
to
+15°/−3°
600 x 400
125 lbs
37" - 70"
±80°
1.9–21.8"
(57 kg)
(5–55cm)
VESA
COMPLIANT
Supporting your digital lifestyle

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDX650 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kanto PDX650

  • Page 1 English User Manual PDX650/PDX650W TV Mount FULL MOTION FLAT PANEL TV MOUNT 200 x 100 +15°/−3° 600 x 400 125 lbs 37” - 70” ±80° 1.9–21.8” (57 kg) (5–55cm) VESA COMPLIANT ™ Supporting your digital lifestyle...
  • Page 2 Setup - Step 1 ......4 Other Kanto Products ..... . 8 Setup - Step 2 .
  • Page 3 Supplied Parts and Hardware Wall Plate A: M5 x 12mm B: M5 x 30mm C: M6 x 16mm D: M6 x 35mm E: M8 x 25mm Bolt Bolt Bolt Bolt Bolt F: M8 x 40mm G: Plastic Spacer H: Plastic Spacer I: Plastic Spacer J: M5/M6 Washer Bolt...
  • Page 4 I, depending on the selected bolt) to ensure a proper fit. You can use spacers inside or outside the bracket arm, as Kanto provides 3 bolt diameters (Metric sizes M5, M6 and shown in Diagram B. M8) in various lengths.
  • Page 5 Step 2: Prepare “H” Assembly and Attach to TV Next, you will create the “H” Assembly and attach it to the bracket arms mounted to your television. Step 2.1 Prepare the “H” Assembly. Step 2.2 Attach the “H” Assembly. Remove the four small M3 screws from the back of the Generally, you will center the “H”...
  • Page 6 Step 3: Mount Wall Plate Wood Stud Wall Brick or Concrete Wall The Wall Plate must be mounted to two wood studs. Use Using the Wall Plate as a template, mark four holes at your a stud sensor to locate the two studs, clearly marking the desired height (toward the outer edge of the Wall Plate).
  • Page 7 +15°/-3 ° Step 6: Tilt the TV The PDX650 and PDX650W will tilt +15°/−3° to provide the ideal viewing angle. Loosen the four Tilt Nuts on both sides of the Tilt Head Plate and tilt the TV to the desired angle (See Diagram I).
  • Page 8 The information in the owner’s manual has been carefully checked and is believed to be accurate. However, Kanto assumes no responsibility for any inaccuracies that may be contained in the manual. In no event will Kanto, be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
