Summary of Contents for Fisher & Paykel HS60CIWX3

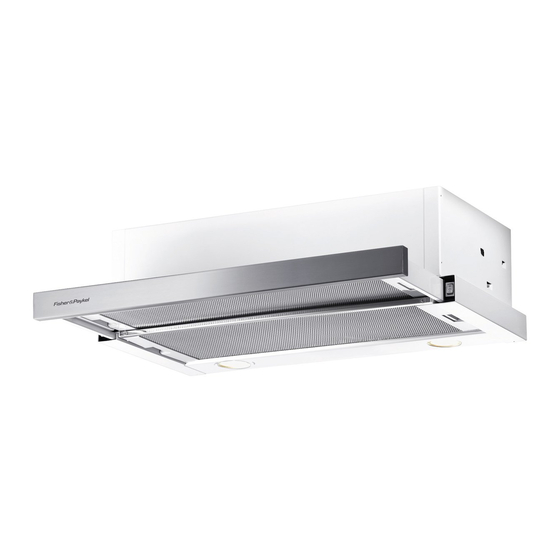

- Page 1 Installation instructions Slideout rangehood User guide HS60CIWX3, HS90CIWX3, HS60CSX3, HS90CSX3, HS60CSRX3 models NZ AU...
-
Page 2: Table Of Contents
Contents Safety and warnings Installation instructions Getting started quickly Cleaning and maintenance Manufacturer’s Warranty Customer Care Important! SAVE THESE INSTRUCTIONS The models shown in this User Guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our local website listed on the back cover or contact your local Fisher &... -
Page 3: Safety And Warnings
Safety and warnings Important! Please read the entire set of instructions before installing the rangehood. ■ ■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, ■ ■ sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 4: Installation Instructions
All of above and including: 2 x charcoal filter ■ ■ 1 x 40 mm SS handle ■ ■ HS60CIWX3 All of above and including: 1 x 40 mm white glass handle ■ ■ HS90CIWX3 All of above and including: 1 x 40 mm white glass handle ■... -
Page 5: Ducting Options
Installation instructions Warning! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. Height of rangehood Please read the entire instructions BEFORE installing the rangehood. Ascertain the desired installation height of the rangehood. Not les 650 mm ■... - Page 6 Installation instructions Preparing the rangehood for installation Ensure the overhead cabinets are built according to Fig.7 (below). Before drilling any holes, check that the area behind the surface to be drilled is clear of any electrical cables or pipes etc. Recirculated installation Fig.4 Preparing for install If the rangehood is to be installed as a recirculated hood,...
-
Page 7: Getting Started Quickly
Getting started quickly Control panel features Light switch: the light can Fan switch: the fan can be run at be operated independently different speeds depending on from the fan. the cooking requirements. Fig.9 Light switch Fig.10 Fan switch Operating instructions Pull out the grill (A) more than 50 mm. -
Page 8: Cleaning And Maintenance
Cleaning and maintenance Caution! Never use abrasive or oil based liquid cleaners. General maintenance The manufacturer is not liable for any damage caused by not following these instructions. The rangehood should be cleaned regularly using warm water with soap or mild liquid detergents. - Page 9 Cleaning and maintenance Charcoal filter Charcoal filters are designed to remove grease and odours from cooking vapours, prior to the cleansed air re-entering the kitchen (when the rangehood is in recirculating mode). Charcoal filters are disposable items and it is recommended that these should be replaced every two months depending on use.
-
Page 10: Manufacturer's Warranty
Manufacturer’s Warranty You automatically receive a 2 year Manufacturer’s Warranty with the purchase of this Product covering parts and labour for servicing within the country of purchase. Fisher & Paykel undertakes to: Repair or, at its option, replace without cost to the owner either for material or labour any part of the Product, the serial number of which appears on the Product, which is found to be defective within TWO YEARS of the date of purchase. -
Page 11: Customer Care
Customer Care Before you call for service or assistance… Check the things you can do yourself. Refer to your User Guide and check: Your appliance is correctly installed. You are familiar with its normal operation. If after checking these points you still need assistance, please refer to your nearest Fisher & Paykel Authorised Repairer, or contact us through our local website listed on the back cover. - Page 12 www.fisherpaykel.co.nz www.fisherpaykel.com.au Copyright © Fisher & Paykel 2012. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time.
