Page 1: Installation Instructions

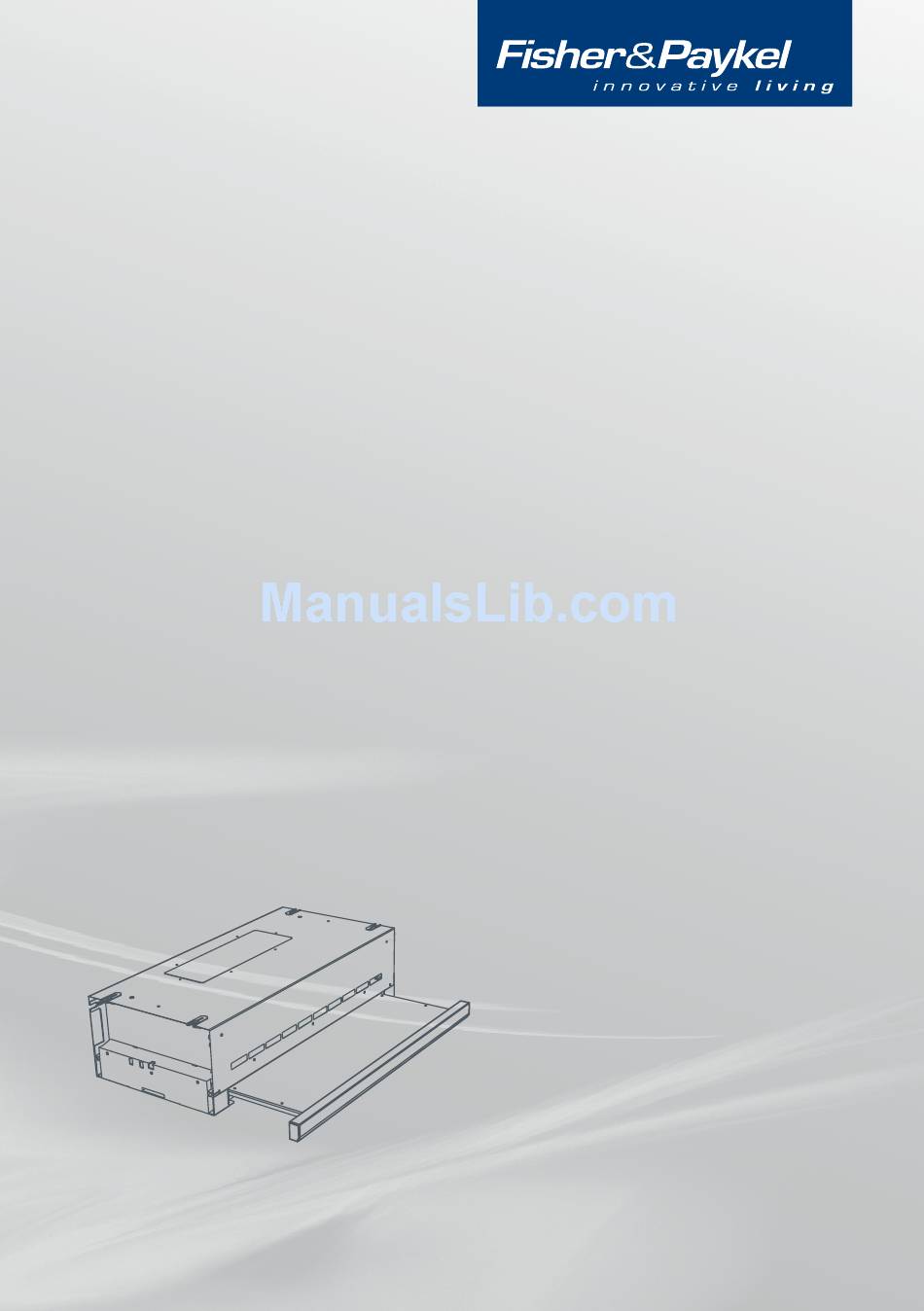

Installation instructions and user guide Slideout rangehood HS60CSW1, HS60CSX1, HS60CIW1, HS60CIX1 models NZ AU... -
Page 2: Table Of Contents
Contents Safety and warnings Installation instructions Getting started quickly Cleaning and maintenance Manufacturer’s warranty Customer care Important! SAVE THESE INSTRUCTIONS The models shown in this user guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our local website listed on the back cover or contact your local Fisher &... -
Page 3: Safety And Warnings
Important! Please read the entire set of instructions before installing the rangehood. This rangehood is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the rangehood. There must be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels. -
Page 4: Installation Instructions
Installation instructions Thank you for purchasing a quality Fisher & Paykel rangehood. Each rangehood is tested and approved before it leaves the factory, ensuring our high standard of quality control is met. Contents of packaging 1 x rangehood 1 x installation instructions 4 x Spacer Tube 25.4 mm 4 x Screw 8x1.5”... -
Page 5: Ducting Options
Installation instructions Height of rangehood Please read the entire instructions BEFORE installing the rangehood. Ascertain the desired installation height of the rangehood. When installing the rangehood, the lower edge of the unit must be a minimum of 600 mm (650 mm for gas cooker) above the cooking surface. -
Page 6: Mounting The Rangehood
Installation instructions Preparing the rangehood for installation Ensure the overhead cabinets are built according to Fig.5 (below). Before drilling any holes, check that the area behind the surface to be drilled is clear of any electrical cables or pipes etc. Recirculating If the rangehood is to be installed as a recirculating hood, the knockouts shown in Fig.4... - Page 7 Mounting to cabinetry sides Fix rangehood to your wall units, with 2 screws in each side into the vertical panels. To do this: Slide out the drawer and remove filter. You will see two mounting holes running through the moulded sides. Remove thin plastic skin (A) from each side fixing hole (see Fig.7).
-
Page 8: Getting Started Quickly
2 speed Axial fan switch 3 speed Centrifugal switch HS60CSX1, HS60CSW1 HS60CIX1, HS60CIW1 Fig.9 Control panels Light switch: the light can be operated independently from the fan. Fan switch: the fan can be run at different speeds depending on the cooking requirements. -
Page 9: General Maintenance
Cleaning and maintenance Caution! Never use abrasive or oil based liquid cleaners. General maintenance The manufacturer is not liable for any damage caused by not following these instructions. The rangehood should be cleaned regularly using warm water with soap or mild liquid detergents. -
Page 10: Manufacturer's Warranty
Manufacturer’s warranty When you purchase any new Fisher & Paykel rangehood you automatically receive a two year Manufacturer’s Warranty covering parts and labour for servicing. Fisher & Paykel undertakes to Repair or, at its option, replace without cost to the owner either for material or labour any part of the Product, the serial number of which appears on the Product, which is found to be defective within TWO YEARS from the date of purchase. -
Page 11: Product Details
Check the things you can do yourself. Refer to your User Guide and check: Your appliance is correctly installed. You are familiar with its normal operation. If after checking these points you still need assistance, please refer to your nearest Authorised Service Centre, or contact us through our local website listed on the back cover. - Page 12 Copyright © Fisher & Paykel 2008. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available.
