Fisher & Paykel HS60LXW4 Quick Reference Manual

QUICK REFERENCE GUIDE >

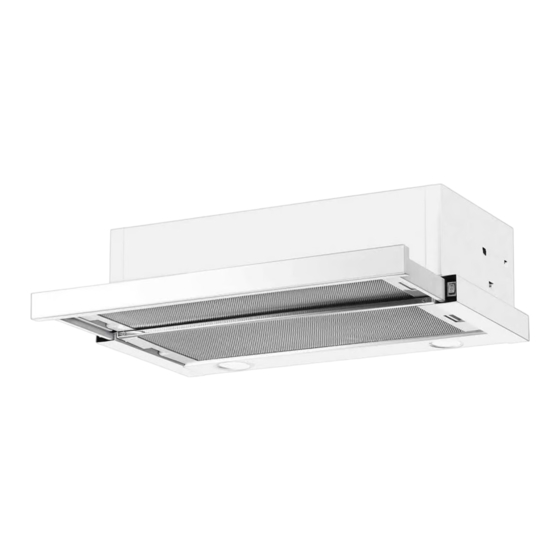

HS60LXW4
Wall Rangehood, 60cm,
Telescopic
Series 3 | Contemporary
White
The wall chimney rangehood has contemporary styling, extracting
steam, grease and cooking odours quietly and efficiently.
With two fan speeds, select the ideal extraction rate for your
cooking
Slides out for use when you need it, with maximum air
movement of 180m³/hr
Dishwasher safe filters that are easy to remove and clean
DIMENSIONS
Height
Width
Depth
FEATURES & BENEFITS
Easy installation
This rangehood can be either externally ducted through the top
or back or can recirculate air internally through its filters, making
it perfect for apartments.
Simple to use
Intuitive controls responds to the touch of your finger. Two
halogen spotlights provide clear illumination over the entire
cooking surface.
Easy cleaning
Two filters, consisting of layers of aluminium mesh, effectively
trap grease particles during extraction. They are easy to remove
and dishwasher safe, or can be cleaned by hand in hot soapy
181-185mm
water.
598mm
Seamless integration
280 - 460mm With the white glass front panel handles and a brushed stainless
steel finish, this rangehood is designed to match the rest of the
Fisher & Paykel's kitchen appliance family.
SPECIFICATIONS
Accessories
40mm Stainless handle
40mm white glass handle
70mm Stainless handle
Aluminium filter
Eave ducting kit
Handle required for
Light bulb
Recirculation carbon filter
Roof ducting kit
Side wall ducting kit
Fan ratings
Maximum air movement
Maximum sound rating
Installation and cleaning
Dishwasher safe filters
Ducted
Recirculation
Date: 14.07.2022 > 1
792405 (included installed)
792394 (included)
792399 (not included)
792391
PD-RHK125E
HS60 Part No.792399
791822
792390
PD-RHK125T
PD-RHK125W
180m³/hr
64dBA
2
Top and back extraction
Optional - top and back
