Supero SC815TQ-700VB User Manual

Sc815 chassis series
Hide thumbs Also See for Supero SC815TQ-700VB:
Table of Contents

Advertisement

Quick Links

Download this manual
S
UPER
SC815 CHASSIS
SC815TQ-700V(B)
SC815TQ-700CV(B)
SC815TQ-R650CV(B)
SC815TQ-560V(B)
SC815TQ-560CV(B)
USER'S MANUAL
Series
SC815S-700V(B)
SC815S-700CV(B)
SC815S-R650CV(B)
SC815S-560V(B)
SC815S-560CV(B)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Supero SC815TQ-700VB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supero Supero SC815TQ-700VB

Summary of Contents for Supero Supero SC815TQ-700VB

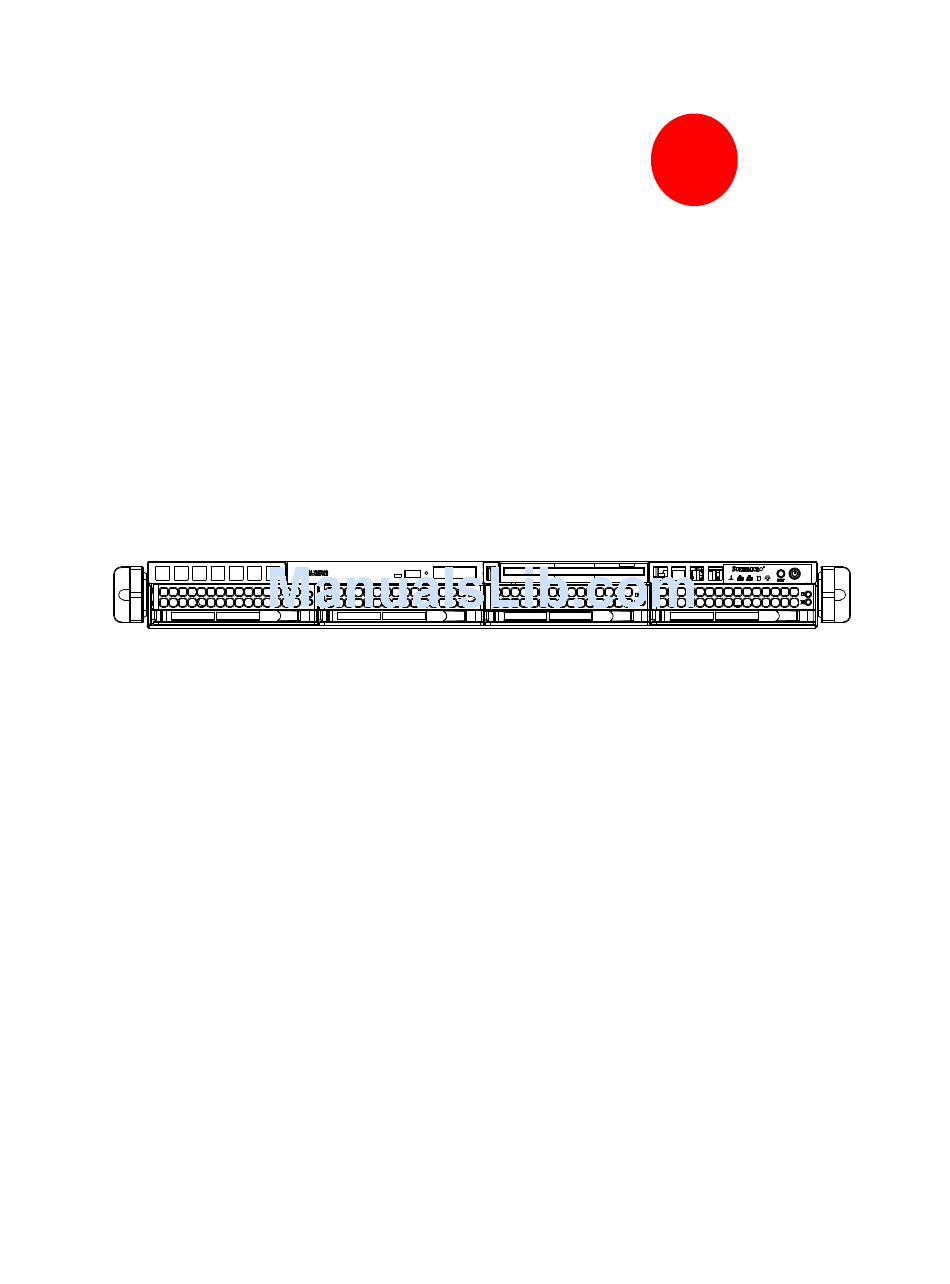

  • Page 1 UPER SC815 CHASSIS Series SC815TQ-700V(B) SC815S-700V(B) SC815TQ-700CV(B) SC815S-700CV(B) SC815TQ-R650CV(B) SC815S-R650CV(B) SC815TQ-560V(B) SC815S-560V(B) SC815TQ-560CV(B) SC815S-560CV(B) USER’S MANUAL...
  • Page 2 Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 SC815 1U chassis. Installa- tion and maintenance should be performed by experienced technicians only. Supermicro’s SC815 1U chassis features a unique and highly-optimized design for dual-core Xeon platforms. The chassis is equipped with a 700W, 650W or 560W high effi...
  • Page 4 SC815 Chassis Manual Notes...

  • Page 5: Preface

    Preface Manual Organization Chapter 1: Introduction The fi rst chapter provides a checklist of the main components included with this chassis and describes the main features of the SC815 chassis. This chapter also includes contact information. Chapter 2: System Safety This chapter lists warnings, precautions, and system safety.
  • Page 6 SC815 Chassis Manual Compatible Backplanes This section lists compatible cables, power supply specifi cations, and compatible backplanes. Not all compatible backplanes are listed. Refer to our Web site for the latest compatible backplane information. Appendix A: Chassis Cables Appendix C: Power Supply Specifi cations Appendix C: SAS 815TQ Backplane Manual Appendix D: SCA 813S Backplane Manual...

  • Page 7: Table Of Contents

    Table of Contents ......................iii Chapter 1: Introduction Overview ......................1-1 Shipping List ....................1-1 Chassis Features .................... 1-2 Contacting Supermicro ................... 1-3 Chapter 2: System Safety Overview ......................2-1 Warnings and Precautions ................2-1 Preparing for Setup ..................2-1 Electrical Safety Precautions ................
  • Page 8 SC815 Chassis Manual Chapter 5: Chassis Setup Overview ......................5-1 Installation Steps .................... 5-1 General Maintenance ................5-1 lnstallation Step 1: Remove Chassis Cover and Front Bezel ......5-2 To remove the chassis cover ..............5-2 The Front Bezel ..................5-3 To remove the front bezel ...............
  • Page 9 Preface Installing the chassis into a rack .............. 6-8 Installing the chassis into a Telco rack ........... 5-3 Appendices Appendix A: SC815 Chassis Cables ................ A-1 Appendix B: SC815 Power Supply Specifi cations ........... B-1 Appendix C: SAS 815TQ Backplane ..............C-1 Appendix D: SCA 813S Backplane .................
  • Page 10 SC815 Chassis Manual Notes...

  • Page 11: Overview

    Chapter 1 Introduction Overview Supermicro’s SC815 1U chassis features a unique and highly-optimized design. The chassis is equipped with high effi ciency power supply. High performance fans provide ample optimized cooling for FB-DIMM memory modules and 4 hot-swap drive bays offer maximum storage capacity in a 1U form factor.

  • Page 12: Chassis Features

    SC815 Chassis Manual Chassis Features The SC815 1U high performance chassis includes the following features: The SC815 Chassis supports a DP Dual-core Xeon processor. Please refer to the motherboard specifi cations pages on our web site for updates on supported processors.

  • Page 13: Contacting Supermicro

    Chapter 1: Introduction Contacting SuperMicro Headquarters Address: SuperMicro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: SuperMicro Computer B.V.
  • Page 14 SC815 Chassis Manual Notes...

  • Page 15: Chapter 2: System Safety

    Chapter 2: System Safety Chapter 2 System Safety Overview This chapter provides a quick setup checklist to get your chassis up and running. Following the steps in order given should enable you to have your chassis setup and operational within a minimal amount of time. This quick set up assumes that you are an experienced technician, famailiar with common concepts and terminology.

  • Page 16: Electrical Safety Precautions

    SC815 Chassis Manual Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SC815 from damage: Be aware of the locations of the power on/off switch on the chassis as well as the room’s emergency power-off switch, disconnection switch or electri- cal outlet.

  • Page 17: General Safety Precautions

    Chapter 2: System Safety DVD-ROM Laser: CAUTION - this server may have come equipped with a DVD-ROM drive. To prevent direct exposure to the laser beam and hazard- ous radiation exposure, do not open the enclosure or use the unit in any unconventional way.
  • Page 18 SC815 Chassis Manual Keep all components and printed circuit boards (PCBs) in their antistatic bags until ready for use. Touch a grounded metal object before removing any board from its anti- static bag. Do not let components or PCBs come into contact with your clothing, which may retain a charge even if you are wearing a wrist strap.

  • Page 19: Chapter 3: Chassis Components

    SAS/SATA or SCSI. For more information regarding compat- ible backplanes, view the appendices found at the end of this manual. In addition, visit our Web site for the latest information: http://www.supermicro.com. Fans The SC815 chassis accepts four system fans with an optional fi fth fan. System fans for SC815 chassis are powered from the serverboard.

  • Page 20: Where To Get Components

    Supermicro Authorized Distributors / System Integrators / Resellers. A list of Supermicro Authorized Distributors / Sys- tem Integrators /Reseller can be found at: http://www.supermicro.com. Click the...

  • Page 21: Chapter 4: System Interface

    Chapter 4: System Interface Chapter 4 System Interface Overview There are several LEDs on the control panel as well as others on the drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specifi...

  • Page 22: Control Panel

    Chassis Manual Control Panel Buttons There are two push-buttons located on the front of the chassis. These are (in order from left to right) a reset button and a power on/off button. Reset: The reset button is used to reboot the system. Power: The main power switch is used to apply or remove power from the power supply to the server system.

  • Page 23: Drive Carrier Leds

    Chapter 4: System Interface NIC2: Indicates network activity on GLAN2 when fl ashing. NIC1: Indicates network activity on GLAN1 when fl ashing. HDD: Indicates IDE channel activity. SAS/SATA drive, SCSI drive, and/or DVD-ROM drive activity when fl ashing. Power: Indicates power is being supplied to the system's power supply units.

  • Page 24: Scsi

    Chassis Manual connection to the SATA backplane enables this LED to blink on and off when that particular drive is being accessed. Red: The red LED to indicate an SAS/SATA drive failure. If one of the SAS/ SATA drives fail, you should be notifi ed by your system management software. SCSI Drives Each SCSI drive carrier has two LEDs.

  • Page 25: Chapter 5: Chassis Setup

    Chapter 5: Chassis Setup and Maintenance Chapter 5 Chassis Setup and Maintenance Overview This chapter covers the steps required to install components and perform maintenance on the chassis. The only tool you will need to install components and perform maintenance is a Phillips screwdriver. Print this page to use as a reference while setting up your chassis.

  • Page 26: To Remove The Chassis Cover

    Chassis Manual Installation Step 1: Remove the Chassis Cover and Front Bezel Remove this screw (if necessary) Release Tab Figure 5-1: Removing the Chassis Cover To remove the chassis cover: 1. Press the release tabs to remove the cover from the locked position. Press both tabs at the same time.

  • Page 27: The Front Bezel

    Chapter 5: Chassis Setup and Maintenance Front Bezel Release Knob Bezel pins Bezel Lock Figure 5-2: Removing the Front Bezel The Front Bezel If your system has an optional front bezel attached to the chassis, you must remove it to access the drive bays. A fi lter located within the bezel can be removed for cleaning or replacement.

  • Page 28: 5-4 Installation Step 2: Install Hard Drives

    Chassis Manual 5-4 Installation Step 2: Install Hard Drives Figure 5-3: Removing Hard Drive To remove hard drive trays from the chassis 1. Press the release button on the drive tray. This extends the drive bay handle. 2. Use the handle to pull the drive out of the chassis.

  • Page 29: To Install A Hard Drive To The Hard Drive Tray

    Chapter 5: Chassis Setup and Maintenance Dummy Drive Drive Tray Figure 5-4: Chassis Drive Tray The drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airfl ow for the drive bays.
  • Page 30 Chassis Manual SAS/SATA or SCSI Hard Drive Drive Tray Figure 5-6: Removing Hard Drive 3. Install a new drive into the carrier with the printed circuit board side facing down so that the mounting holes align with those in the carrier. 4.

  • Page 31: Installation Step 3: Dvd Adn Floppy Drive Installation

    Chapter 5: Chassis Setup and Maintenance Installation Step 3: DVD and Floppy Drive Installation Most SC815 chassis models include a DVD-ROM and space for an optional fl oppy drive. The DVD-ROM is usually pre-installed. To install or replace a DVD or Floppy Drive 1.

  • Page 32: Installation Step 4: Installing The Motherboard

    Chassis Manual Installation Step 4: Installing the Motherboard Permanent Standoffs Optional Standoffs Figure 5-8: Chassis Standoffs Permanent and Optional Standoffs Standoffs prevent short circuits by securing space between the motherboard and the chassis surface. The SC815 chassis includes permanent standoffs in locations used by most motherboards.

  • Page 33: To Install The Motherboard

    Chapter 5: Chassis Setup and Maintenance To install the motherboard: 1. Review the documentation that came with your motherboard. Become familiar with component placement, requirements, and precautions. 2. Disconnect the power supply and lay the chassis on a fl at surface. 3.

  • Page 34: I/O Slot Setup

    Chassis Manual I/O Slot Setup SC815 chassis include I/O slots for add-on cards and expansion cards. "C" models (like SC815TQ-700CV) include one full width slot. All other models include one full width slot and one low-profi le slot. I/O Panel Lever Flap I/O Panel Figure 5-9: SC815 Chassis Rear...

  • Page 35: Installations Step 5: Installing The Air Shroud And Checking Air Flow

    Chapter 5: Chassis Setup and Maintenance Installation Step 5: Installing the Air Shroud and Checking Air Flow Optional Flap Figure 5-11: Air Shroud Front (Fan Side) Air shrouds concentrate airfl ow to maximize fan effi ciency. The SC815 chassis air shroud does not require screws to set up.

  • Page 36: To Install The Air Shroud

    Chassis Manual To install the air shroud 1. Remove the chassis cover. 2. If your motherboard uses between 9 and 16 DIMMS, skip this step. If your moth- erboard uses 8 DIMMS, you must remove the optional fl ap. To do so: a.

  • Page 37: System Fans

    Chapter 5: Chassis Setup and Maintenance System Fans Figure 5-13: System Fan Four heavy duty fans provide cooling for the chassis. These fans circulate air through the chassis as a means of lowering the chassis' internal temperature. In models with counter-rotating fans, each fan unit is actually made up of two fans joined back-to-back, which rotate in opposite directions.

  • Page 38: Replacing A System Fan

    Chassis Manual Note: The SC815 Chassis includes four pre-installed fans. An extra slot is included for an optional fi fth fan. Figure 5-14: Chassis Fans (with optional fi fth fan) Replacing a system fan 1. If necessary, open the chassis while the power is running to determine which fan has failed.

  • Page 39: Power Supply

    If the power supply unit fails, the system will shut down and you will need to replace the unit. Replacement units can be ordered directly from Supermicro (see contact information in the Preface). As there is only one power supply unit in the SC815 Chassis, power must be completely removed from the server before removing and replacing the power supply unit for whatever reason.

  • Page 40: Replacing The Power Supply

    Chassis Manual Release Tab Figure 5-15: Removing the Power Supply Replacing the Power Supply 1. Power down the server and unplug the power cord. If your chassis includes a redundant power supply (at least two power modules), you can leave the server running and remove only one power supply.

  • Page 41: Chapter 6: Rack Installation

    Chapter 6: Rack Installation Chapter 6 Rack Installation Overview This chapter provides a quick setup checklist to get your chassis up and running. Following these steps in the order given should enable you to have the system operational within a minimum amount of time. Unpacking the System You should inspect the box the chassis was shipped in and note if it was damaged in any way.

  • Page 42: Rack Precautions

    Chassis Manual Warnings and Precautions! Rack Precautions - Ensure that the leveling jacks on the bottom of the rack are fully extended to the fl oor with the full weight of the rack resting on them. - In single rack installation, stabilizers should be attached to the rack. - In multiple rack installations, the racks should be coupled together.
  • Page 43 Chapter 6: Rack Installation Reduced Airfl ow Equipment should be mounted into a rack so that the amount of airfl ow required for safe operation is not compromised. Mechanical Loading Equipment should be mounted into a rack so that a hazardous condition does not arise due to uneven mechanical loading.

  • Page 44: Rack Mounting Instructions

    Chassis Manual Rack Mounting Instructions This section provides information on installing the SC815 chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly. You should also refer to the installation instructions that came with the rack unit you are using.

  • Page 45: Installing The Inner Rail Extensions

    Chapter 6: Rack Installation Figure 6-2. Identifying the Sections of the Rack Rails (right side rail shown) Installing the Inner Rail Extension The SC815 chassis includes a set of inner rails in two sections: inner rails and inner rail extensions. The inner rails are preattached and do not interfere with normal use of the chassis if you decide not to use a server rack.

  • Page 46: Installing The Outer Rails To The Rack

    Chassis Manual Secure to the Front of the Rack Secure to the Rear of the Rack Attach Outer Racks together Figure 6-3. Assembling the Outer Rails Installing the outer rails to the rack 1. Attach the short bracket to the outside of the long bracket. You must align the pins with the slides.
  • Page 47 Chapter 6: Rack Installation Figure 6-4. Installing the Outer Rails to the Server Rack...

  • Page 48: Installing The Chassis Into A Rack

    Chassis Manual Figure 6-5. Installing the Rack Rails Installing the chassis into a rack 1. Confi rm that chassis includes the inner rails (A) and rail extensions (B). Also, confi rm that the outer rails (C) are installed on the rack. 2.

  • Page 49: Installing The Chassis Into A Telco Rack

    Chapter 6: Rack Installation Installing the chassis into a Telco rack If you are installing the SC815 chassis into a Telco type rack, follow the directions given on the previous pages for rack installation. The only difference in the installa- tion procedure will be the positioning of the rack brackets to the rack.
  • Page 50 Chassis Manual Notes 6-10...

  • Page 51: Appendices

    Appendicies Appendicies Appendix A: Compatible Cables Appendix B: SC815 Power Supply Specifi cations Appendix C: SAS 815TQ Backplane Manual Appendix D: SCA 813S Backplane Manual...
  • Page 52 Appendicies Notes...

  • Page 53: Appendix A: Sc815 Chassis Cables

    This appendix lists supported cables for your chassis system. It only includes the most commonly used components and confi gurations. For more compatible cables, refer to the manufacturer of the motherboard you are using and our Web site at: www.supermicro.com. Cables Included with SC815TQ Chassis (SAS/SATA) SC815TQ-700...
  • Page 54 Chassis Manual SC815TQ-560 Part # Type Length Description 8 pin to 8 pin ribbon cable for CBL-0157L Ribbon 9" SGPIO, PB free Ribbon, 16 pin to 16 pin ribbon cable for CBL-0087 20" Round control panel CBL-0139L Wire 60 cm IDE 80-Wire cable for DVD ROM Cable Regional power cord...
  • Page 55 Appendix A Cables Included with SC815S Chassis (SCSI) SC815S-700 Part # Type Length Description CBL-033L-U320 Ribbon 9" (23 cm) ULTRA 320, PB FREE Ribbon, 16 pin to 16 pin ribbon cable for CBL-0087 20" Round control panel CBL-0139L Wire 50 cm IDE 80-Wire cable for DVD ROM Cable Regional power cord...
  • Page 56 Chassis Manual Compatible Cables These cables are compatible with the SC815 Chassis. Alternate SAS/SATA Cables Some compatible motherboards have different connectors. If your motherboard has only one SAS connector that the SAS/SATA cables must share, use one of the following cables. These cables must be purchased separately. Cable Name: SAS Cable Quantity: 1 Part #: CBL-0175L...
  • Page 57 Appendix A Extending Power Cables Although Super Micro chassis are designed with to be effi cient and cost-effective, some compatible motherboards have power connectors located in different areas. To use these motherboards you may have to extend the power cables to the mother boards.
  • Page 58 Chassis Manual Notes...

  • Page 59: Appendix B: Sc815 Power Supply Specifi Cations

    Appendix B Appendix B SC815 Power Supply Specifi cations This appendix lists power supply specifi cations for your chassis system. 650W 560W 700W 560W (Redundant) (C Models) PWS-561- MFR Part # PWS-0065 PWS-651-1R PWS-561-1H 1H20 100 - 240V 100 - 240V 100 - 240V 100 - 240V Rated AC Volt-...
  • Page 60 Chassis Manual Notes...

  • Page 61: Appendix C: Sas 815Tq Backplane

    JP29:9071 RST JP18:BUZZER RESET JP40 JP42 JP51 JTAG UPGRADE JP29 UPER SAS815TQ JP18 JP33 JP34 REV 1.00 M9 M15 SIDEBAND +12V JP47 JP10 +12V +12V JP26 JP44 ACT IN ACT0 ACT1 ACT2 ACT3 SAS 815TQ Backplane USER'S GUIDE Rev. 1.0a...
  • Page 62 Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 63 Safety Information and Technical Specifi cations Table of Contents Chapter 1: Safety Guidelines ESD Safety Guidelines ..................1-1 General Safety Guidelines ................1-1 An Important Note to Users ................1-1 Chapter 2: Jumper Settings and Pin Defi nitions Front Connectors and Jumpers ............... 2-1 Front Connector Pin Defi...
  • Page 64 SAS 815TQ Backplane User's Guide Notes...

  • Page 65: Chapter 1: Safety Guidelines

    Safety Information and Technical Specifi cations Chapter 1 Safety Guidelines To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. ESD Safety Guidelines Electric Static Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully.
  • Page 66 SAS 815TQ Backplane User's Guide Notes...

  • Page 67: Front Connectors And Jumpers

    Safety Information and Technical Specifi cations Chapter 2 Jumper Settings and Pin Defi nitions Front Connectors and Jumpers JP29:9071 RST JP18:BUZZER RESET JP40 JP42 JP51 JTAG UPGRADE JP29 UPER SAS815TQ JP18 JP33 REV 1.00 JP34 M9 M15 SIDEBAND +12V JP47 JP10 +12V +12V...
  • Page 68 SAS 815TQ Backplane User's Guide Front Connector and Pin Defi nitions #1. Backplane Main Power Connectors Backplane Main Power The 4-pin connectors, designated JP10 4-Pin Connector (JP10) provide power to the backplane. See the Pin# Defi nition table on the right for pin defi nitions. +12V 2 and 3 Ground...
  • Page 69 Safety Information and Technical Specifi cations #6. Sideband Headers Sideband Headers (JP51) The sideband headers are designated Pin # Defi nition Pin # Defi nition JP51. For SES-2 to work properly, you must Backplane Controller connect an 8-pin sideband cable. See the Addressing ID (SB6) (SB5)

  • Page 70: Front Jumper Locations And Pin Defi Nitions

    SAS 815TQ Backplane User's Guide Front Jumper Locations and Pin Defi nitions JP29 JP18 JP40 JP42 JP51 JTAG UPGRADE JP29:9071 RST JP18:BUZZER RESET SAS815TQ JP29 JP18 JP33 UPER JP34 REV 1.00 M9 M15 SIDEBAND +12V JP47 JP10 +12V +12V JP26 JP44 ACT IN ACT0...

  • Page 71: Front Led Indicators

    Safety Information and Technical Specifi cations C and SGPIO Modes and Jumper Settings This backplane can utilize I C or SGPIO. I C is the default mode and can be used without making changes to your jumpers. The following information details which jumpers must be confi...

  • Page 72: Rear Connectors And Led Indicators

    SAS 815TQ Backplane User's Guide Rear Connectors and LED Indicators H 2 M 4 M 9 M 1 SAS #0 SAS #1 SAS #2 SAS #3 Rear SAS/SATA Connectors Rear Connector SAS Drive Connector Number Number SAS #0 SAS/SATA HDD #0 SAS #1 SAS/SATA HDD #1 SAS #2...
  • Page 73 +12V LVD1 UPER SCA813S REV 1.03 JP17: BUZZER ENABLE JP17 ON: ENABLE +5V GND +12V +12V OFF: DISABLE SCA 813S Backplane USER'S GUIDE Rev. 1.0b...
  • Page 74 Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 75 Safety Information and Technical Specifi cations Table of Contents Chapter 1: Safety Guidelines ESD Safety Guidelines ..................1-1 General Safety Guidelines ................1-1 An Important Note to Users ................1-1 Chapter 2: Jumper Settings and Pin Defi nitions Front Connectors and Jumpers ............... 2-1 Front Connector Pin Defi...
  • Page 76 SCA 813S Backplane User's Guide Notes...

  • Page 77: Chapter 1: Safety Guidelines

    Safety Information and Technical Specifi cations Chapter 1 Safety Guidelines To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. ESD Safety Guidelines Electric Static Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully.
  • Page 78 SCA 813S Backplane User's Guide Notes...

  • Page 79: Front Connectors And Jumpers

    Safety Information and Technical Specifi cations Chapter 2 Jumper Settings and Pin Defi nitions Front Connectors and Jumpers +12V LVD1 UPER SCA813S REV 1.03 JP17: BUZZER ENABLE JP17 ON: ENABLE +5V GND +12V +12V OFF: DISABLE Front Connectors #1. Backplane Main (4-Pin) PWR: JP10 #2.
  • Page 80 SCA 813S Backplane User's Guide Front Connector and Pin Defi nitions #1. Backplane Main Power Connectors Backplane Main Power The 4-pin connector, designated JP10, pro- 4-Pin Connector (JP10) vide power to the backplane. See the table Pin# Defi nition on the right for pin defi nitions. +12V 2 and 3 Ground...
  • Page 81 Safety Information and Technical Specifi cations #4. Ultra 320 SCSI Connector (LVD1) Ultra320 SCSI Drive Connector Pin Defi nitions (J28) The Ultra 320 SCSI connector con- Pin# Defi nition Pin # Defi nition nects the backplane to the server +DB (12) -DB (12) motherboard.

  • Page 82: Front Jumper Locations And Pin Defi Nitions

    SCA 813S Backplane User's Guide Front Jumper Locations and Pin Defi nitions +12V JP17 LVD1 UPER SCA813S REV 1.03 JP17: BUZZER ENABLE JP17 ON: ENABLE +5V GND +12V +12V OFF: DISABLE Explanation of Jumpers Connector To modify the operation of the backplane, Pins jumpers can be used to choose between optional settings.

  • Page 83: Rear Connectors And Led Indicators

    Safety Information and Technical Specifi cations Rear Connectors and LED Indicators ACT0 ACT1 ACT2 FAIL0 FAIL2 FAIL1 SCA4 SCA2 SCA #1 SCA #3 SCA #4 SCA #2 Rear SCA Connectors Rear Connector SCA Drive Connector Number Number SCA #1 SCA HDD #0 SCA #3 SCA HDD #1 SCA #4...
  • Page 84 6. Click “Next” twice, uncheck both “Floppy disk drives” and “CD-ROM drives”. 7. Select “Specify a location,” and choose “Next”. 8. Click on “Browse” and choose D drive or wherever Supermicro Setup CD is 9. Choose “Qlogic” folder and click on “Open”.
  • Page 85 Safety Information and Technical Specifi cations Notes...
