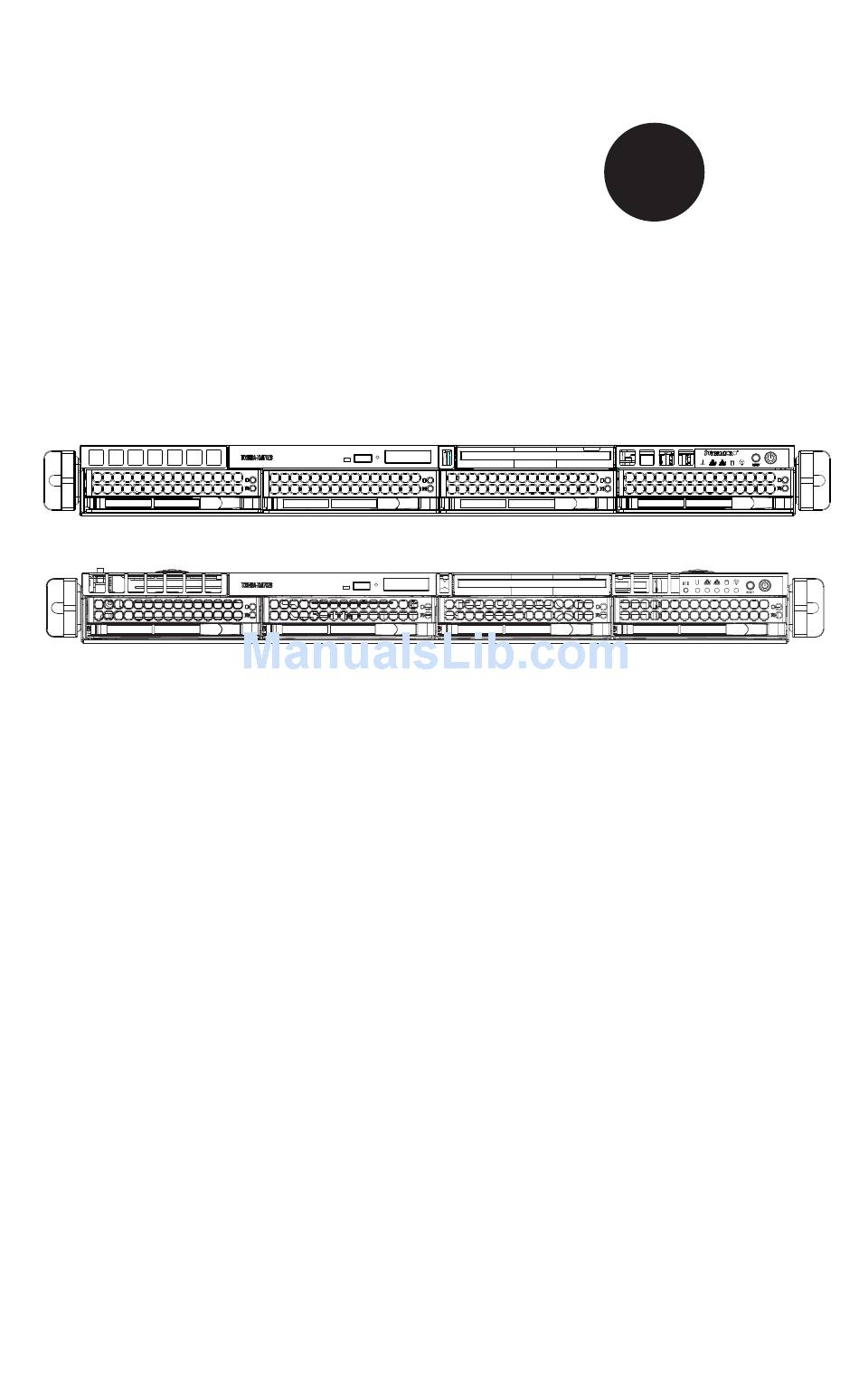

  • Page 1 UPER ® REAR VIEW SC815 Chassis Series FRONT VIEW SC815TQ-720CB SC815TQ-720UB SC815TQ-710(V)(B) SC815TQ-710U(B) SC815S-700(V)(B) SC815TQ-710C(V)(B) SC815TQ-700(V)(B) SC815S-700C(V)(B) SC815TQ-700C(V)(B) SC815S-R650C(V)(B) SC815TQ-R650C(V)(B) SC815S-560(V)(B) SC815TQ-560(V)(B) SC815S-560C(V)(B) SC815TQ-560C(V)(B) SC815TQ-R450U(V)(B) SC815TQ-R650U(V)(B) SC815TQ-560U(V)(B) USER’S MANUAL 1.1a...
  • Page 2 Please Note: For the most up-to-date version of this manual, please see our web site at www.supermicro.com. Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.
  • Page 3 SC815 1U chassis. Installa- tion and maintenance should be performed by experienced technicians only. Supermicro's SC815 1U chassis features a unique and highly-optimized design for Xeon and Opteron platforms. The chassis is equipped with a 450W, 560W, 650W 700W or 710W high efficiency power supply, or Gold Level 720W system for superb power savings.

  • Page 4: Manual Organization

    SC815 Chassis Manual Manual Organization Chapter 1: Introduction The first chapter provides a checklist of the main components included with this chassis and describes the main features of the SC815 chassis. This chapter also includes contact information. Chapter 2: System Safety This chapter lists warnings, precautions, and system safety.

  • Page 5: Table Of Contents

    CPU ......................... 1-3 Hard Drives ..................... 1-3 I/O Expansion slots ..................1-3 Peripheral Drives ..................... 1-3 Other Features ....................1-3 Contacting Supermicro ..................1-4 Returning Merchandise for Service..............1-5 Chapter 2 System Safety Overview ......................2-1 Warnings and Precautions ................2-1 Preparing for Setup ..................
  • Page 6 SC815 Chassis Manual SCSI Drives ..................... 4-5 Power Supply LEDs and Overheat Indicators ..........4-5 450W and 650W Power Supplies ..............4-5 All Other Power Supplies ................4-6 Overheating ..................... 4-6 Chapter 5 Chassis Setup and Maintenance Overview ......................5-1 Installation Procedures ..................
  • Page 7 Preface Appendix A Chassis Cables Appendix B SC815 Power Supply Specifications Appendix C SAS-815TQ Backplane Specifications Appendix D SCA-813S Backplane Specifications...
  • Page 8 SC815 Chassis Manual Notes viii...

  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction Overview Supermicro’s SC815 1U chassis features a unique and highly-optimized design. The chassis is equipped with a high efficiency power supply. High performance fans provide ample optimized cooling for FB-DIMM memory modules and four hot-swap drive bays offer maximum storage capacity in a 1U form factor.
  • Page 10 SC815 Chassis Manual SC815 Chassis DP/UP 4x SAS / 1x FF, 1x LP 650W • SC815TQ-R650V / SC815TQ-R650B Xeon/AMD SATA (Redundant) DP/UP 4x U320 1x FF 650W • SC815S-R650V / SC815S-R650B Xeon/AMD SCSI (Redundant) DP/UP 4x SAS / 2x FH, 1x LP 560W •...

  • Page 11: Chassis Features

    Chapter 1: Introduction Chassis Features The SC815 1U high performance chassis includes the following features: The SC815 chassis supports a DP or UP Dual-core Xeon processor. Please refer to the motherboard specifications pages on our website for updates on supported processors.

  • Page 12: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 13: Returning Merchandise For Service

    For faster service, RMA authorizations may be requested online (http://www. supermicro.com/support/rma/). Whenever possible, repack the chassis in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the chassis securely, using packaging material to surround the chassis so that it does not shift within the carton and become damaged during shipping.
  • Page 14 SC815 Chassis Manual Notes...

  • Page 15: Chapter 2 System Safety

    Chapter 2: System Safety Chapter 2 System Safety Overview This chapter provides a quick setup checklist to get your chassis up and running. Following the steps in order given should enable you to have your chassis setup and operational within a minimal amount of time. This quick set-up assumes that you are an experienced technician, famailiar with common concepts and terminology.

  • Page 16: Electrical Safety Precautions

    SC815 Chassis Manual Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SC815 from damage: • Be aware of the locations of the power on/off switch on the chassis as well as the room’s emergency power-off switch, disconnection switch or electrical outlet.

  • Page 17: General Safety Precautions

    Chapter 2: System Safety radiation exposure, do not open the enclosure or use the unit in any uncon- ventional way. General Safety Precautions • Keep the area around the chassis clean and free of clutter. • Place the chassis top cover and any system components that have been re- moved away from the system or on a table so that they won’t accidentally be stepped on.
  • Page 18 SC815 Chassis Manual • Touch a grounded metal object before removing any board from its antistatic bag. • Do not let components or PCBs come into contact with your clothing, which may retain a charge even if you are wearing a wrist strap. •...

  • Page 19: Chapter 3 Chassis Components

    SAS/SATA or SCSI. For more information regarding compat- ible backplanes, view the appendices found at the end of this manual. In addition, visit our Web site for the latest information: http://www.supermicro.com. Fans The SC815 chassis accepts four system fans with an optional fifth fan. System fans for SC815 chassis are powered from the serverboard.

  • Page 20: Power Supply

    Though not frequently, you may need replacement parts for your system. To en- sure the highest level of professional service and technical support, we strongly recommend purchasing exclusively from our Supermicro Authorized Distributors / System Integrators/Resellers. A list of Supermicro Authorized Distributors/System Integrators/Reseller can be found at: http://www.supermicro.com.

  • Page 21: Chapter 4 System Interface

    Chapter 4: System Interface Chapter 4 System Interface Overview There are several LEDs on the control panel and on the drive carriers that provide system and component status. This chapter explains the meanings of all LED indi- cators and the appropriate responses that need to be taken. Figure 4-1.

  • Page 22: Control Panel Buttons

    SC815 Chassis Manual Control Panel Buttons The SC815 chassis includes two or three push-buttons located on the front panel: a reset button, a power on/off button, and a UID button • Reset: The reset button is used to reboot the system. •...

  • Page 23: Control Panel Leds

    Chapter 4: System Interface Control Panel LEDs The control panel located on the front of the SC815 chassis has up to five LEDs. These LEDs provide critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any action that may be required.

  • Page 24: Drive Carrier Leds

    SC815 Chassis Manual • NIC2: Indicates network activity on GLAN2 when flashing. • NIC1: Indicates network activity on GLAN1 when flashing. • HDD: Indicates IDE channel activity. SAS/SATA drive, SCSI drive, and/or DVD- ROM drive activity when flashing. • Power: Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.

  • Page 25: Scsi Drives

    Chapter 4: System Interface nection to the SATA backplane enables this LED to blink on and off when that particular drive is being accessed. • Red: The red LED to indicate an SAS/SATA drive failure. If one of the SAS/SATA drives fail, you should be notified by your system management software.

  • Page 26: All Other Power Supplies

    Some backplanes allow the overheat temperature to be set at 45, 50, or 55 by changing a jumper setting. For more information, download the backplane user manual at www.supermicro.com. To access the manuals on the Website, click sup- port, and then click the manuals link.
  • Page 27 Chapter 4: System Interface Confirm that the chassis covers are installed properly. Check the routing of the cables and make sure all fans are present and oper- ating normally. Verify that the heatsinks are installed properly.
  • Page 28 SC815 Chassis Manual Notes...

  • Page 29: Chapter 5 Chassis Setup And Maintenance

    Chapter 5: Chassis Setup and Maintenance Chapter 5 Chassis Setup and Maintenance Overview This chapter covers the steps required to install components and perform mainte- nance on the chassis. The only tool you will need to install components and perform maintenance is a Phillips screwdriver.

  • Page 30: Removing The Chassis Cover And Front Bezel

    SC815 Chassis Manual Removing the Chassis Cover and Front Bezel Remove this screw (if necessary) Release Tab Figure 5-1: Removing the Chassis Cover Removing the Chassis Cover Press the release tabs to remove the cover from the locked position. Press both tabs at the same time.

  • Page 31: The Front Bezel

    Chapter 5: Chassis Setup and Maintenance Front Bezel Release Knob Bezel pins Bezel Lock Figure 5-2: Removing the Front Bezel The Front Bezel If your system has an optional front bezel attached to the chassis, you must remove it to access the drive bays. A filter located within the bezel can be removed for cleaning or replacement.

  • Page 32: Installing Hard Drives

    SC815 Chassis Manual Installing Hard Drives Figure 5-3: Removing Hard Drive Carriers Removing Hard Drive Carriers from the Chassis 1. Press the release button on the drive carrier. This extends the drive carrier handle. 2. Use the handle to pull the drive carrier out of the chassis.
  • Page 33 Chapter 5: Chassis Setup and Maintenance Dummy Drive Drive Tray Figure 5-4: Chassis Drive Carrier The drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airflow for the drive bays.
  • Page 34 SC815 Chassis Manual SAS/SATA or SCSI Hard Drive Drive Tray Figure 5-6: Removing the Hard Drive From the Carrier Install a new drive into the carrier with the printed circuit board side facing down so that the mounting holes align with those in the carrier. Secure the hard drive by tightening all six (6) screws.

  • Page 35: Dvd And Floppy Drive Installation

    Chapter 5: Chassis Setup and Maintenance DVD and Floppy Drive Installation Most SC815 chassis models include a DVD-ROM and space for an optional floppy drive. The DVD-ROM is usually pre-installed. Installing or Replacing a DVD-ROM or Floppy Drive Power down the system and if necessary, remove the server from the rack and the front bezel from the chassis.

  • Page 36: Installing The Motherboard

    SC815 Chassis Manual Installing the Motherboard Permanent Standoffs Optional Standoffs Figure 5-8: Chassis Standoffs Permanent and Optional Standoffs Standoffs prevent short circuits by securing space between the motherboard and the chassis surface. The SC815 chassis includes permanent standoffs in locations used by most motherboards.
  • Page 37 Chapter 5: Chassis Setup and Maintenance Installing the Motherboard Review the documentation that came with your motherboard. Become famil- iar with component placement, requirements, and precautions. Disconnect the power supply and lay the chassis on a flat surface. Open the chassis cover. If necessary, remove the riser card.

  • Page 38: Expansion Card Setup

    Note: You must use a riser card to install expansion cards to any SC815 chassis. Riser cards are sold separately. For the latest compatibility and performance information visit our website at: SC815-560C http://www.supermicro.com. C815-560C I/O Panel Lever I/O Panel...
  • Page 39 Chapter 5: Chassis Setup and Maintenance Riser Card Figure 5-11: Chassis with a Riser Card ("U" Models Only) Installing an Expansion Card Confirm that you have the correct riser card for your chassis model and the add-on card includes a standard bracket. Remove the chassis cover.

  • Page 40: Installing The Air Shroud

    SC815 Chassis Manual Installing the Air Shroud Optional Flap Figure 5-11: Air Shroud Front (Fan Side) Air shrouds concentrate airflow to maximize fan efficiency. The SC815 chassis air shroud does not require screws to set up. Figure 5-12: Air Shroud with the Optional Flap Removed 5-12...
  • Page 41 Chapter 5: Chassis Setup and Maintenance Installing the Air Shroud Remove the chassis cover. If your motherboard uses between 9 and 16 DIMMS, skip this step. If your motherboard uses 8 DIMMS, you must remove the optional flap. To do so: a.

  • Page 42: System Fans

    SC815 Chassis Manual System Fans Figure 5-13: System Fan Four heavy duty fans provide cooling for the chassis. These fans circulate air through the chassis as a means of lowering the chassis internal temperature. In models with counter-rotating fans, each fan unit is actually made up of two fans joined back-to-back, which rotate in opposite directions.
  • Page 43 Chapter 5: Chassis Setup and Maintenance Figure 5-14: Chassis Fans (Note additional fan options) The SC815 chassis includes four pre-installed fans. One or two extra slots are available so that. additional fans may be added. Replacing a System Fan If necessary, open the chassis while the power is running to determine which fan has failed.

  • Page 44: Power Supply

    If the power supply unit fails, the system will shut down and you will need to replace the unit. Replacement units can be ordered directly from Supermicro (see contact information in the Preface). As there is only one power supply unit in the SC815 Chassis, power must be completely removed from the server before removing and replacing the power supply unit for whatever reason.
  • Page 45 Chapter 5: Chassis Setup and Maintenance Release Tab Figure 5-15: Removing the Power Supply Replacing the Power Supply Power down the server and unplug the power cord. If your chassis includes a redundant power supply (at least two power modules), you can leave the server running and remove only one power supply.

  • Page 46: Routing The I C Cables

    SC815 Chassis Manual 5-10 Routing the I C Cables It is necessary to correctly route the I C cables to avoid interference due to noise on the I C lines. Using tie wraps, secure the I C cables to the large black power switch- ing cable to keep it close to the power supply and away from the motherboard.

  • Page 47: Chapter 6 Rack Installation

    Chapter 6: Rack Installation Chapter 6 Rack Installation Overview This chapter provides a quick setup checklist to get your chassis up and running. Following these steps in the order given should enable you to have the system operational within a minimum amount of time. Unpacking the System You should inspect the box the chassis was shipped in and note if it was damaged in any way.

  • Page 48: Rack Precautions

    SC815 Chassis Manual Warnings and Precautions! Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them. • In single rack installation, stabilizers should be attached to the rack. •...

  • Page 49: Rack Mounting Considerations

    Chapter 6: Rack Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra).

  • Page 50: Rack Mounting Instructions

    SC815 Chassis Manual Rack Mounting Instructions This section provides information on installing the SC815 chassis into a rack unit. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly. You should also refer to the installation instructions that came with the rack unit you are using.

  • Page 51: Inner Rail Extension

    Chapter 6: Rack Installation Figure 6-2: Identifying the Sections of the Rack Rails (right side rail shown) Inner Rail Extension The SC815 chassis includes a set of inner rails which are in two sections: inner rails and inner rail extensions. The inner rails are pre-attached and do not interfere with normal use of the cha`sis if you decide not to use a server rack.
  • Page 52 SC815 Chassis Manual Secure to the Front of the Rack Secure to the Rear of the Rack Attach the Two Sections of the Outer Rail Together Figure 6-3: Assembling the Outer Rails Installing the Outer Rails to the Rack Attach the longer section of the outer rail to the outside of the shorter section of the outer rail.
  • Page 53 Chapter 6: Rack Installation SCALE 0.380 Figure 6-4: Installing the Outer Rails to the Server Rack...
  • Page 54 SC815 Chassis Manual Figure 6-5: Installing the Rack Rails Installing the Chassis into a Rack Confirm that chassis includes the inner rails (A) and rail extensions (B). Also, confirm that the outer rails (C) are installed on the rack. Line chassis rails (A and B) with the front of the rack rails (C). Slide the chassis rails into the rack rails, keeping the pressure even on both sides (you may have to depress the locking tabs when inserting).

  • Page 55: Installing The Chassis Into A Telco Rack

    Chapter 6: Rack Installation Installing the Chassis into a Telco rack To install the chassis into a Telco type rack, use two L-shaped brackets on either side of the chassis (four total). First, determine how far follow the server will extend out the front of the rack.
  • Page 56 SC815 Chassis Manual Notes 6-10...
  • Page 57 This appendix lists supported cables for your chassis system. It only includes the most commonly used components and configurations. For more compatible cables, refer to the manufacturer of the motherboard you are using and our Web site at www.supermicro.com. A-2 Cables Included with SC815TQ (SAS/SATA) SC815TQ-710...
  • Page 58 SC815 Chassis Manual SC815TQ-R650 Part # Type Length Description 8 pin to 8 pin ribbon cable for CBL-0157L Round ribbon cable 9" SGPIO. 16 pin to 16 pin ribbon cable for CBL-0087 Round ribbon cable 20" control panel CBL-0139L Braid ribbon cable 50 cm IDE 80-wire cable for DVD-ROM Cable...
  • Page 59 Appendix A: Chassis Cables A-3 Cables Included with SC815S Chassis (SCSI) SC815S-700 Part # Type Description CBL-033L-U320 Round ribbon cable 9" ULTRA 320 cable 16 pin to 16 pin ribbon cable for CBL-0087 Round ribbon cable 20" control panel CBL-0139L Braid ribbon cable 50 cm IDE 80-wire cable for DVD-ROM...
  • Page 60 SC815 Chassis Manual A-4 Compatible Cables These cables are compatible with the SC815 chassis. Alternate SAS/SATA Cables Some compatible motherboards have different connectors. If your motherboard has only one SAS connector that the SAS/SATA cables must share, use one of the following cables.

  • Page 61: Extending Power Cables

    Appendix A: Chassis Cables Extending Power Cables Although Super Micro chassis are designed with to be efficient and cost-effective, some compatible motherboards have power connectors located in different areas. To use these motherboards you may have to extend the power cables to the mother boards.
  • Page 62 SC815 Chassis Manual A-5 Chassis Screws The accessory box includes all the screws needed to setup your chas- sis. This section lists and describes the most common screws used. Your chassis may not require all the parts listed. HARD DRIVE Flat head Pan head 6-32 x 5 mm...
  • Page 63 Appendix B: Power Supply Specifications Appendix B SC815 Power Supply Specifications This appendix lists power supply specifications for your chassis system. Power Supply Specifications 650W/ 560W 710W/ 720W 700W/PDB 560W (C Mod- (Redun- els) dant) PWS-721- PWS-711 PWS- PWS-651 PWS-561 PWS-561 P-1R Part #...
  • Page 64 SC815 Chassis Manual Notes...
  • Page 65 Appendix C: SAS-815TQ Backplane Specifications Appendix C SAS-815TQ Backplane Specifications To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. C-1 ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully.
  • Page 66 This manual reflects SAS-815TQ Revision 1.00, the most current release available at the time of publication. Always refer to the Supermicro Web site at www.supermi- cro.com for the latest updates, compatible parts and supported configurations.

  • Page 67: Front Connectors

    Appendix C: SAS-815TQ Backplane Specifications Jumper Settings and Pin Definitions C-4 Front Connectors and Jumpers JP29:9071 RST JP18:BUZZER RESET JP40 JP42 JP51 SAS815TQ JTAG UPGRADE JP29 UPER JP18 JP33 JP34 REV 1.00 M9 M15 SIDEBAND +12V JP47 JP10 +12V +12V JP26 JP44 ACT IN...
  • Page 68 SC815 Chassis Manual C-5 Front Connector and Pin Definitions #1. Backplane Main Power Connectors Backplane Main Power The 4-pin connectors, designated JP10 provide 4-Pin Connector power to the backplane. See the table on the Pin# Definition right for pin definitions. +12V 2 and 3 Ground...
  • Page 69 Appendix C: SAS-815TQ Backplane Specifications #6. Sideband Headers Sideband Headers The sideband headers are designated JP51. Pin # Definition Pin # Definition For SES-2 to work properly, you must connect Backplane Controller an 8-pin sideband cable. See the table to the Addressing ID (SB6) (SB5)

  • Page 70: Explanation Of Jumpers

    SC815 Chassis Manual C-6 Front Jumper Locations and Pin Definitions JP29 JP18 JTAG UPGRADE JP29:9071 RST JP18:BUZZER RESET JP40 JP42 JP51 UPER SAS815TQ JP29 JP18 JP33 REV 1.00 JP34 M9 M15 SIDEBAND +12V JP47 JP10 +12V +12V JP26 JP44 ACT IN ACT0 ACT1 ACT2 ACT3...

  • Page 71: Front Led Indicators

    Appendix C: SAS-815TQ Backplane Specifications C and SGPIO Modes and Jumper Settings This backplane can utilize I C or SGPIO. I C is the default mode and can be used without making changes to your jumpers. The following information details which jumpers must be configured to use SGPIO mode or restore your backplane to I2C mode.
  • Page 72 SC815 Chassis Manual C-7 Rear Connectors and LED Indicators H 2 M 4 M 9 M 1 Figure C-5: Rear Connectors and LED Indicators Rear SAS/SATA Connectors Rear Connector SAS Drive Connector Number Number SAS #0 SAS/SATA HDD #0 SAS #1 SAS/SATA HDD #1 SAS #2 SAS/SATA HDD #2...
  • Page 73 Appendix D: SCA-813S Backplane Specifications Appendix D SCA-813S Backplane Specifications To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. D-1 ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully.
  • Page 74 This manual reflects SCA-813S Revision 1.00, the most current release available at the time of publication. Always refer to the Supermicro Web site at www.supermicro. com for the latest updates, compatible parts and supported configurations.
  • Page 75 Appendix D: SCA-813S Backplane Specifications Jumper Settings and Pin Definitions D-5 Front Connectors and Jumpers Figure D-1: Front Connectors and Jumpers Front Connectors #1. Backplane Main (4-Pin) PWR: JP10 #2. GEM 318 Chip #3. CD-ROM/Floppy Drive (4-Pin) PWR Connector: J1 and J2 #4.
  • Page 76 SC815 Chassis Manual D-6 Front Connector and Pin Definitions #1. Backplane Main Power Connectors Backplane Main Power The 4-pin connector, designated JP10, provide 4-Pin Connector power to the backplane. See the table on the Pin# Definition right for pin definitions. +12V 2 and 3 Ground...
  • Page 77 Appendix D: SCA-813S Backplane Specifications #4. Ultra 320 SCSI Connector (LVD1) Ultra320 SCSI Drive Connector Pin Definitions (J28) The Ultra 320 SCSI connector connects Pin# Definition Pin # Definition the backplane to the server mother- +DB (12) -DB (12) board. +DB (13) -DB (13) +DB (14)
  • Page 78 SC815 Chassis Manual D-7 Front Jumper Locations and Pin Definitions JP17 Figure D-2: Front Jumper Explanation of Jumpers Connector Pins To modify the operation of the backplane, jumpers can be used to choose between optional settings. Jumpers Jumper create shorts between two pins to change the function of the connector.
  • Page 79 Appendix D: SCA-813S Backplane Specifications Front LED Indicators Backplane LED State Specification Overheat/Drive Failure LED Indicator (Red light: flashing, Buzzer: On)
  • Page 80 SC815 Chassis Manual D-8 Rear Connectors and LED Indicators Figure D-4: Rear Connectors and LED Indicatosr Rear SCA Connectors Rear Connector SCA Drive Connector Number Number SCA #1 SCA HDD #0 SCA #3 SCA HDD #1 SCA #4 SCA HDD #2 SCA #2 SCA HDD #3 Rear LED Indicators...
  • Page 81 OS systems. This driver is not necessary for other operating systems. If you have two SCA backplanes, you will need to install the driver twice. The driver is located on the Supermicro motherboard driver CD is available for down- load from our FTP site: ftp://ftp.supermicro.com/driver/SCSI_Backplanes/Qlogic/...
  • Page 82 SC815 Chassis Manual Select the Hardware tab and select Device Manager to bring up the list of system devices. You may see one or two yellow question marks (?) that read QLogic GEM354 or GEM318 SCSI Processor Device. Right click on these, and select uninstall.
  • Page 83 Appendix D: SCA-813S Backplane Specifications Notes D-11...
  • Page 84 SC815 Chassis Manual Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
