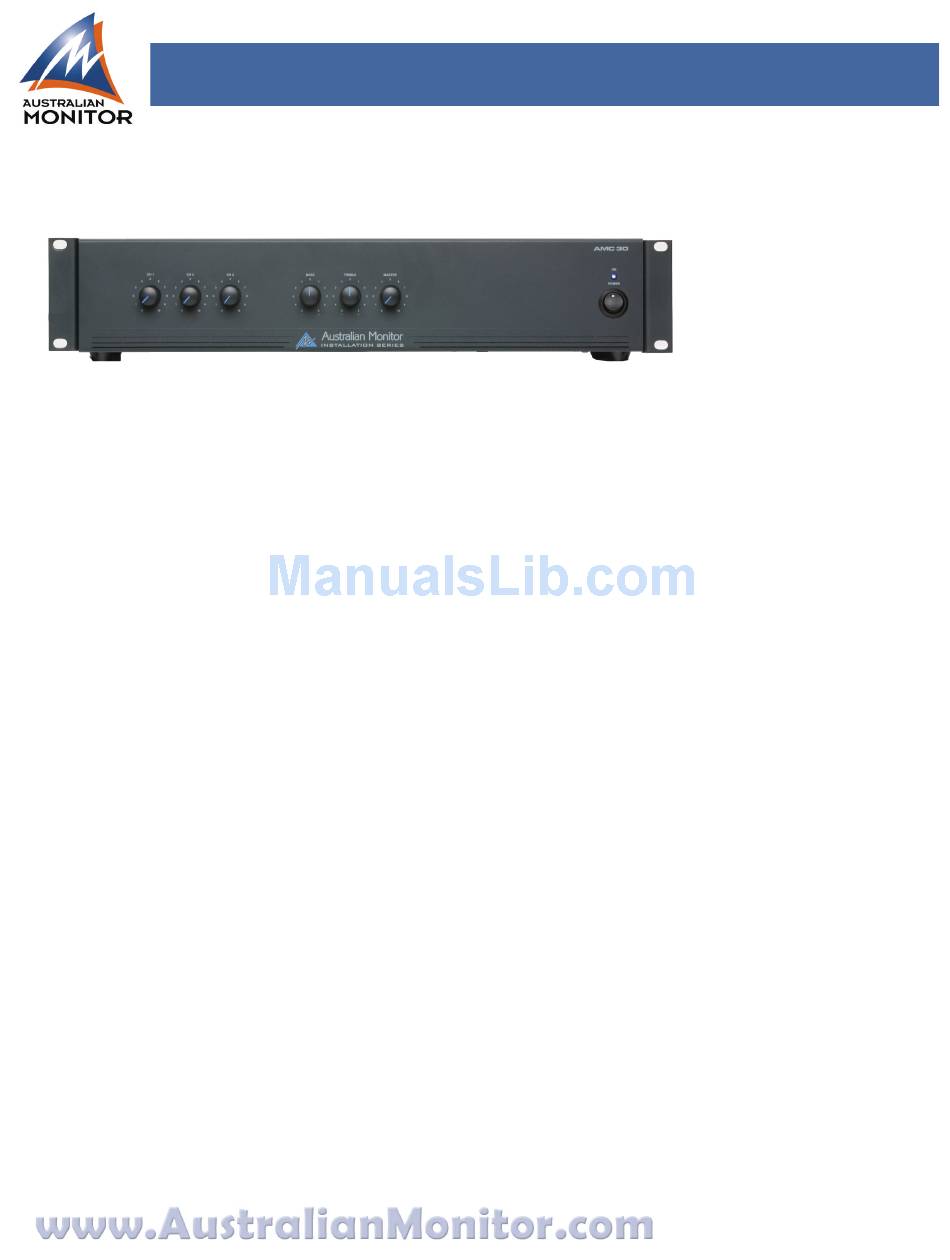

AUSTRALIAN MONITOR AMC 30 Specifications

30 Watt 2RU MIXER-AMPLIFIER
3 balanced XLR mic/dual RCA line inputs
•
30 watt output power
•
2 Rack units in height
•
70 volt or 4 ohm operation
•
Master treble and bass control
•
Channel 1 has priority over channels 2 & 3 (defeatable)
•
Facility to add a tone generator module
•
Tape output (pre master)
•
Balanced line output
•
The Australian Monitor Installation Series AMC line of amplifiers
takes the heritage & reliability of our famous AMIS series &
integrates these features into a low cost amplifier format for
applications where reliability is everything, but the more elaborate
features of our AMIS series are not required. The 30 watt version
of the AMC series is a 2 RU mixer amplifier featuring 70 volt line
(100v 230/240V version) & 4 ohm outputs & 3 universal mic/line
inputs.
Master volume & overall treble/bass controls are provided, along
with Voice triggered muting (defeatable) giving channel 1 priority
over inputs 2 & 3. There is also facility to internally add a tone
generator card.
The Australian Monitor AMC series give the contractor a low cost
alternative in applications that are cost sensitive, but still require a
high quality of sound reproduction & reliability.
AMC 30 AMC 30
AMC 30 AMC 30 AMC 30
SPECIFICATIONS
Power output:
30W
Outputs:
4 Ohms, 70/100V
THD before clipping
0.5%
Inputs
3x (Mic/Aux)
Input connectors
3x (XLR/RCA)
Mic sensitivity
1mV+/-0.2mV
AUX sensitivity
0.5V+/-100mV
S/N ratio
> 75dBr
Bandwidth
On 70V terminals
85Hz-15kHz
(-3dB +0dB)
Tone Controls
Bass @ 100Hz
+/- 12 dB
Treble @ 10kHz
+/- 9 dB
Power source (Switchable)
115V 60 Hz
230-240V 50Hz
Current draw (full power)
.73 A
Fuses
1A - AC mains & DC
Line Out
1V
Tape Out
300mV
Mic 1 Automatic
Priority over Mic 2/3
Size
19" W x 3.5" H x 7.5" D
Protections
1) Short circuit
2) No Thermal
Output Regulation
96%
Net Weight
13.2lb
Shipping Dimensions
20.1" W x 5.7" H x 11.7" D
Shipping Weight
16.5lb
Warranty
1 year
