- Page 1 SERIES 30W/60W/120W/250W MIXER AMPLIFIERS INSTALLATION AND OPERATION MANUAL...
-
Page 2: Important Safety Information
Do not parallel- or series-connect an amplifi er output with any other amplifi er output. Australian Monitor Inc is not 7. Always operate the unit with the AC ground wire connected to the responsible for damage to loudspeakers for any reason. -
Page 3: Table Of Contents
INTRODUCTION AND CONTENTS The Australian Monitor AMC series of amplifi ers takes the heritage and INTRODUCTION reliability of our famous AMIS series amplifi ers and integrates these features into low cost amplifi ers for applications where reliability is everything, but the FRONT PANEL more elaborate features of our AMIS series are not required. -

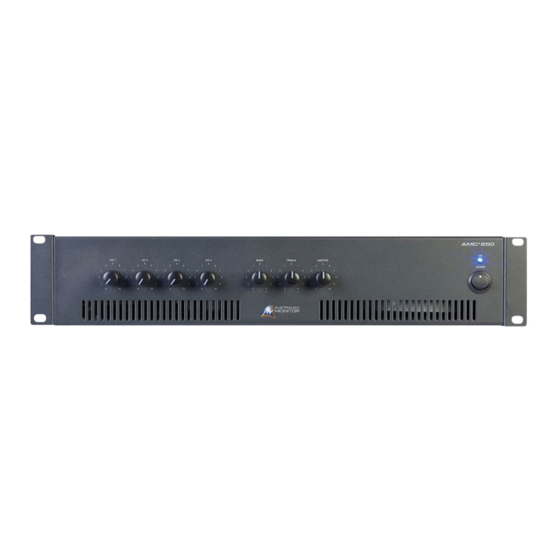

Page 4: Front Panel
FRONT PANEL CH 1–4 These control the levels for each channel input. Bass There is 12dB of cut and boost at 100Hz. Treble There is 9dB of cut and boost at 10kHz. Master This controls the overall mixed output level. This LED indicates the unit is powered “on”. -
Page 5: Rear Panel
(LINE). 70V out is available on 115V models. 100V out is available on 230V/240V models. (Optional) Tone Module These terminals are for use with an optional tone module (not supplied). Use Australian Monitor ATC5488 module. Phantom Power 12V phantom power is available for condenser or electret microphones on the XLR input when this switch is pushed in. -
Page 6: Installation
INSTALLATION Mounting Direct Output When rack mounting, it is advisable to allow 1 rack space above and below the The output terminal strip accepts wire sizes from 16-22AWG amplifi er. When multiple amplifi ers are mounted in a rack, exhaust fans should (1.5mm2 –... -
Page 7: Troubleshooting And Block Diagram
250 only) Make sure the amplifi er is well ventilated DC fuse(s) blown Refer product to local Australian Monitor dealer Remove signal (disconnect input) from channel 1 OR No sound from channels 2 and 3 Priority function is being used... -
Page 8: Functional Notes And Internal Adjustments
FUNCTIONAL NOTES AND INTERNAL ADJUSTMENTS PRIORITY Channel 1 will mute channels 2, 3 and 4. This will only occur when signal appears on channel 1, irrespective of the channel volume control. Priority can be disabled. (See below). The release time is approx. 3 secs and is NOT adjustable. The mute depth is approx. 40dB and is not adjustable. PAGE 8 SERIES INSTALLATION AND OPERATION MANUAL... -
Page 9: Dimensions
DIMENSIONS SERIES INSTALLATION AND OPERATION MANUAL PAGE 9... -
Page 10: Specifications
SPECIFICATIONS POWER OUTPUT (0.5%THD, 1KHZ) 120W 250W S/N RATIO > 75dBr > 75dBr > 80dBr >85dBr POWER BANDWIDTH (-3dB +1dB) 85Hz-15kHz 75Hz-15kHz 75Hz-15kHz 30Hz-20kHz FUSES MAINS (115V) 1.0A 3.15A 6.3A MAINS (230/240V) 0.5A 1.6A 3.15A 1.6A (x2) 10A (x2) OUTPUT REGULATION SIZE (WXHXD) 482 x 88 x 190mm 482 x 88 x 281mm... - Page 11 SPECIFICATIONS COMMON TO ALL MODELS THD (1KHz, -1dB) Better than 0.5% MIC INPUT SENSITIVITY 1mV @ 200ohm IMPEDANCE 1k3 ohm HEADROOM 77mV (37dB) AUX INPUT SENSITIVITY 0.5V+/@100kohm IMPEDANCE >200kohm HEADROOM > 15V (>30dB) TONE CONTROL BASS @ 100HZ +/- 12 dB TREBLE @ 10KHZ +/- 9 dB LINE OUT...
