Summary of Contents for StarTech.com IMC110MMSC

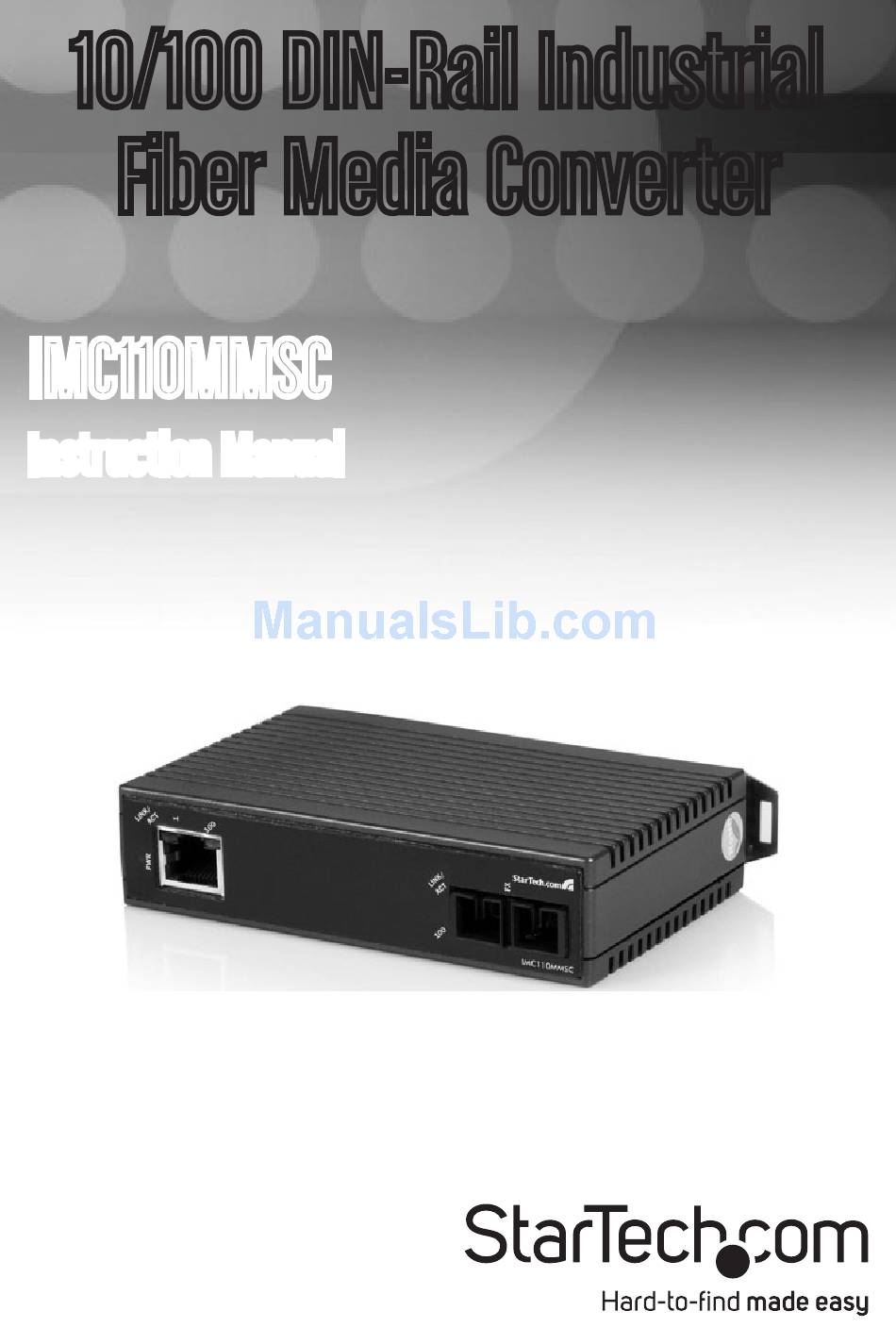

- Page 1 10/100 DIN-Rail Industrial Fiber Media Converter IMC110MMSC Instruction Manual...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question. -
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ..............1 Installation ............... 2 Location ...................2 Physical Installation ..............2 Network Connection ..............2 Functionality ..............3 Connector Pin Layout ..............3 Specifications ..............4 Technical Support ............5 Warranty Information ............5... -
Page 4: Introduction
Designed for large, higher speed bandwidth for demanding workgroups that require expansion of fast Ethernet Network in and industrial environ- ment over long distances, the StarTech.com 10/100 DIN-Rail Industrial Fiber Media Converter MM SC (2km) offers industrial grade performance, even in harsh environments. -
Page 5: Installation
Instruction Manual Installation Location When installing the DIN-Rail Industrial Fiber Media Converter, ensure that the chosen location has a temperature between -10° and 60° Celsius and a relative humidity less than 95%, non-condensing. Physical Installation To install the DIN-Rail Industrial Fiber Media Converter onto a DIN rail, lower the converter onto the DIN rail from above using the slot. -
Page 6: Functionality
Instruction Manual Connect the cables to the output of the attached network device and then to the input of the DIN-Rail Industrial Fiber Media Converter. Once both devices are powered on, the installation is complete. Functionality Connector Pin Layout The following table shows the functions of each of the pins on the RJ-45 connectors to the 10/100Base-TX ports on the DIN-Rail Industrial Fiber Media Converter: Regular Port... -
Page 7: Specifications
Instruction Manual Specifications LED Indicators Port and Power Status Material Plastic Maximum Distance 2 km Operating Temperature -10°C to 60°C (14°F to 140°F) Power Supply 12 to 24V DC, 1.5A IEEE802.3 10Base-T, IEEE802.3u 100 Network Standards Base-TX/100Base-DX, IEEE802.3x Storage Temperature -25°C to 85°C (-13°F to 185°F) 1x RJ45 Female Connector Connectors... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 9 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
