StarTech.com IMC100MSFP Quick Start Manual

Industrial RJ45 to Open SFP Media Converter | Fast Ethernet 10/100 Mbps

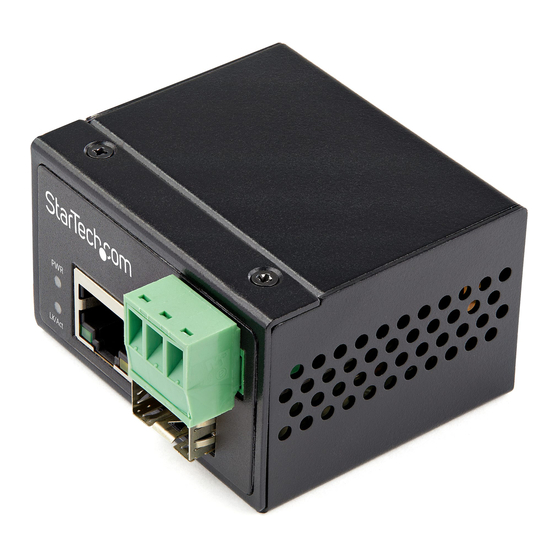

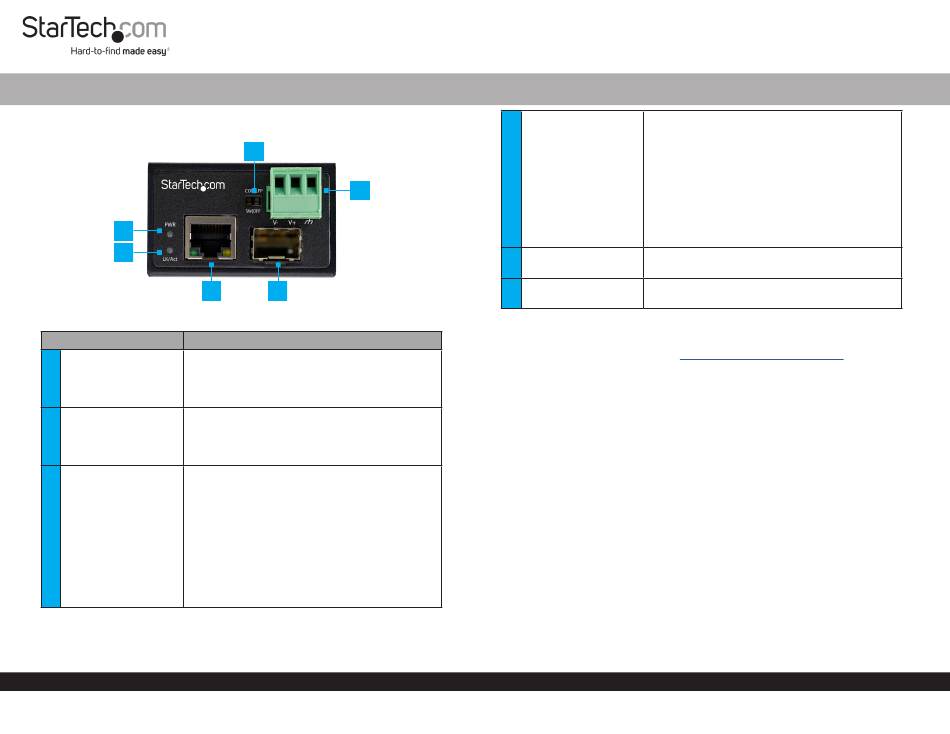

Product Diagram (IMC100MSFP)
1
2
Component
• Green: An external DC Power Source is
1 PWR LED
• Off: An external DC Power Source is not
• Green: Indicates that a link is detected on the
2 LK/Act LED
• Flashing: Indicates that data is being
• Connect a Network Device to the Media
Green:
• On: A network connection is detected.
3 RJ45 Port • Flashing: The Media Converter is
Amber:
• On: 100Mbps network speed detected.
• Off: 10Mbps network speed detected.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
4
6
3 5
Function
detected.
detected.
SFP.
transmitted or received.
Converter.
transmitting/receiving data.
DIP 1:
• Up: Enables converter mode.
• Down: Enables switch mode (default).
DIP 2:
4
DIP Switch
• Up: Enables Link Fault Pass-Through (LFP)
function, LFP highlights link failures, by forcing
a link down between both connections during
a link failure.
• Down: Disables LFP function (default).
• Connect an SFP (100BASE-X) to the Media
5 SFP Slots
Converter.
• Connect an external DC Power Source (12-56V
6 3-Pin Terminal Block
DC Input) to the Media Converter.
Requirements
For the latest requirements, please visit
• Network Equipment (ex. Router, Network Switch) x 1
• MSA-Compliant 100BASE-X SFP Transceiver Module x 1
• RJ45 Terminated UTP/STP CAT5e (or better) Network Cable x 1
• Terminated Fiber Optic Cable (dependent on SFP Module) x 1
• DC Power Source x 1
• Phillips Head Screwdriver x 1
• Small Flat Head Screwdriver x 1
Powering the Media Converter
Connecting and installing the 3-Wire Terminal Connector must be completed by a
licensed Electrician.
Notes: Make sure that you turn off the power source before connecting the power wire
to the Media Converter.
Do not exceed the recommend power source voltage as it may result in personal or
product damage.
1. Using a Small Flat Head Screwdriver, loosen the V- and V+ screws on the 3-Wire
Terminal Connector (included).
Quick-Start Guide
www.startech.com/IMC100MSFP
Manual Revision: June 2, 2020 2:08 PM
