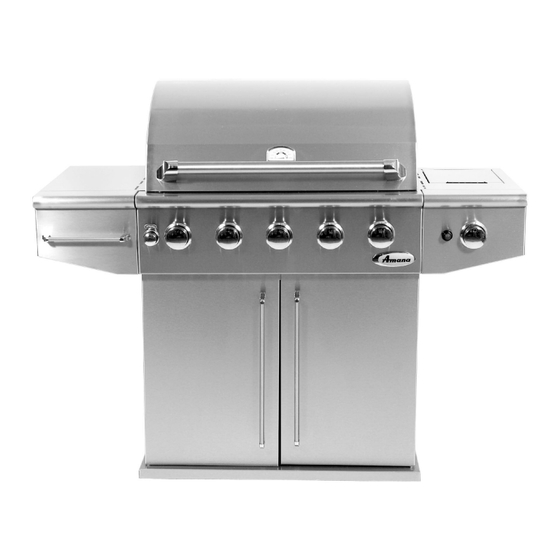

Amana™ SS 5 Burner Grill w/ Rear Burner
USE AND CARE MANUAL
FOR OUTDOOR USE ONLY
ALWAYS KEEP YOUR GRILL COVERED WHEN NOT IN USE
BEFORE YOU BEGIN – We've included easy-to-follow, step-by-step instructions which have been carefully written to
ensure quick assembly of your grill. Reading the instructions will be a time saver in the end.
TOOLS YOU WILL NEED – A Phillips screwdriver, adjustable wrench, 1/2" wrench or socket and a 1/4" nut driver or
socket will be needed to assemble this grill. All other necessary hardware has been included.
QUESTIONS? – We're here to help. Just call 1-800-229-5647. For faster service, have the model number and serial
number on hand when calling.

Advertisement

Table of Contents
loading

Related Manuals for Amana SS 5

Summary of Contents for Amana SS 5

  • Page 1 Amana™ SS 5 Burner Grill w/ Rear Burner USE AND CARE MANUAL FOR OUTDOOR USE ONLY ALWAYS KEEP YOUR GRILL COVERED WHEN NOT IN USE BEFORE YOU BEGIN – We’ve included easy-to-follow, step-by-step instructions which have been carefully written to ensure quick assembly of your grill.

  • Page 2: Table Of Contents

    IMPORTANT SAFETY INFORMATION Read this manual carefully before using your grill to reduce the risk of fire, burn hazard or other injury. - Extreme care should be used because of the high temperatures produced by this appliance. CHILDREN SHOULD NOT BE LEFT UNATTENDED IN AN AREA WHERE THE GRILL IS BEING OPERATED.

  • Page 3: Welcome

    Please complete and mail in the Product Registration Card included with your grill. Please retain this manual for future reference Amana™ is a registered trademark of the Maytag Corporation and is used under license to Sure Heat Manufacturing © 2006 Sure Heat Manufacturing...

  • Page 4: General Safety Instructions

    General Safety Instructions Do not use the rotisserie in the rain. NOTE: Do Not operate the main burners and infrared back burner at the same time. This can cause warping of the roll top grill hood. Electrical Grounding Instructions This appliance (rotisserie motor) is equipped with a Do not use the grill in garages, breezeways, sheds or any three-prong (grounding) plug for your protection enclosed area.

  • Page 5: Grill Features

    SS 5 Grill Features 1. Roll top grill hood 9. Warming shelf 2. Rotisserie kit 10. Rear Infrared burner 3. Grilling/cooking surface 11. Side burner 4. Side shelf 12. Control knob: side burner 5. Towel bar/utensil hanger 13. Electronic igniter: main burners, side burner and rear infrared burner 6.

  • Page 6: Getting Started

    Getting Started All hardware is shown actual size. 49600206 Wheel Channel Nuts x6 49600113 Self-Tapping Screws x13 49600101 "S" Hooks x3 Two People Required to Assemble Grill Tools Needed: Phillips screwdriver Adjustable wrench 1/2” wrench or socket 1/4” nut driver or socket...

  • Page 7: Out Of Box

    SS 5 Grill Out of Box Cart Side Left Condiment Basket 12b. TG 30 Main Grate Side Shelf Left Assembly Cart Side Right Caster Assembly Left Cart Door Left Caster Assembly Right Cart Door Right Cart Back Not Shown: Plastic bag containing:...
  • Page 8 SS 5 Assembly STEP ONE a. Set the cart base on the floor and then lay the left wheel channel on the left and the right wheel channel on the right side of the cart base. The large hole in the base will be towards the rear of the base.
  • Page 9 SS 5 Assembly STEP TWO a. Place the left cart side onto the two (2) outer fixed wheel channel bolts, make sure the large flange is toward the front of the cart base. b. Secure the left cart side in place by hand tightening nuts onto the wheel channel bolts.
  • Page 10 SS 5 Assembly STEP THREE The Spare L.P. Gas Tank Barrier must be installed a. Press the sides back together making sure that the to prevent storage of spare L.P. Gas side flanges cover the cart back flange. Tanks. Failure to comply with these b.
  • Page 11 SS 5 Assembly STEP FOUR a. Loosen the four (4) grill mounting bolts so that there is approximately 1/4” between the bolt head and grill bottom. b. Have someone help you pick up the grill and set it squarely on top of the cart.
  • Page 12 SS 5 Assembly STEP FIVE a. Place left hand door on an angle over the left side door pivot. b. Tilt the top of the door toward the grill, while depressing the top door pivot pin above the door edge.
  • Page 13 SS 5 Assembly STEP SIX a. Lay the left shelf on its side with the shelf hooks facing up. With a Phillips head screwdriver, remove screw from handle end, and then attach one of the handle ends to the front of the shelf using the supplied phillips head screw.
  • Page 14 SS 5 Assembly STEP SEVEN a. On the inside bottom of the side burner assembly you will find the brass burner cap attached with tape. Remove and set aside. b. Feed the side burner gas supply hose assembly and two igniter wires through the grommeted hole in the side of the cart.

  • Page 15: Assembly

    SS 5 Assembly STEP EIGHT a. Remove two screws from the burner valve assembly. b. Carefully insert the valve assembly into the cast burner. You will need to angle the tube into the burner assembly. Make certain that the hose is pointing down when the valve is put in place.
  • Page 16 SS 5 Assembly STEP NINE a. Place the electronic igniter into the igniter hole on the front left of the side burner shelf. To help ease the installation of the wires, make certain that the igniter wire tabs are facing outwards from the grill.
  • Page 17 SS 5 Assembly STEP TEN a. Center the brass burner cap on top of the side burner head. b. Place the side burner grate on to the side burner tray.
  • Page 18 SS 5 Assembly STEP ELEVEN a. Slide the condiment basket into the slots located inside of the left hand cart door. b. Slide drip tray in place.
  • Page 19 SS 5 Assembly STEP TWELVE a. Insert the top row of flavor grids into the cutouts with triangle ridges facing up. b. Install cooking grates on the ledges provided on the grill to create your cooking surface. c. Attach the rear igniter shield using two (2) self-tapping screws.

  • Page 20: Gas Requirements

    Gas Requirements GENERAL INFORMATION Never attach an unregulated gas line to the appliance. Connection to an unregulated gas line can cause excessive heat or fire. Verify the type of gas supply to be used, either Natural Gas (N.G.) or Liquid Propane (L.P.), and make sure the serial plate agrees with that of the supply.
  • Page 21 Gas Requirements L.P. GAS INSTALLATION Amana™ Gas Grills that are set to operate with L.P. gas come with a high capacity hose and regulator assembly. (Note: Only use the pressure regulator and hose assembly supplied with the grill or a replacement pressure regulator and hose assemblies specified by Amana™).

  • Page 22: Pre-Operation Leak Testing

    Pre Operation Leak Testing GENERAL INFORMATION Although all internal gas connections on the grill are leak tested prior to shipment, a complete gas tightness check must be performed at the installation site due to possible shifting during shipment, installation or excessive pressure unknowingly being applied to the unit. Periodically check the whole system for leaks and immediately check the system if the smell of gas is detected.

  • Page 23: Lighting The Grill

    Lighting the Grill BEFORE LIGHTING Position the match near the burner ports and push and turn the control knob counter Important! Before Lighting: clockwise to the “HIGH” position. (See Fig. 51-52) • Check the gas supply line for cuts, wear or abrasion.

  • Page 24: Using The Grill

    Using the Grill GRILL LOCATION Do not use the grill in garages, breezeways, sheds or any enclosed area. Never operate the grill in enclosed areas as this could lead to a carbon monoxide buildup, which could result in injury or death. Place the grill on a level surface. Avoid moving the grill while it is operation.

  • Page 25: Using The Rotisserie

    Using the Rotisserie The grill rotisserie system is designed to cook items from the back using infrared heat. The rotisserie burner is an infrared type which provides intense searing radiant heat. Preferred by chefs over other cooking methods, this intense heat sears in the natural juices and nutrients found in quality cuts of meats.

  • Page 26: Accessory Lighting

    Accessory Lighting ROTISSERIE LIGHTING Fig. 55 Open the lid. Push and turn the control knob for the rotisserie counter clockwise to the “HIGH” position. Wait 5 seconds. Then press and hold the electronic igniter button. You’ll hear a snapping sound. If the burner does not light in 4 seconds, turn the control knob to OFF and wait 5 minutes before trying again.

  • Page 27: Care And Maintenance

    Care and Maintenance DRIP TRAY The drip tray located below the grill, inside the cart, should be cleaned periodically to prevent heavy buildup of debris. Note: Allow the drip tray to cool before attempting to clean. Important: Do not leave the grill outside during inclement weather unless it is covered (cover sold separately).

  • Page 28: Troubleshooting

    Troubleshooting Your Grill GENERAL TROUBLE SHOOTING You should inspect the burners at least once a year or immediately if any of the following conditions occur: • The smell of gas. • Flames appearing mostly yellow. (some yellow at the tips is OK) •...
  • Page 29 Troubleshooting Your Grill PROBLEM SOLUTION Grill will not light with a match or low heat with dial set • Is your gas supply fully turned on? to "High" position. • If this is an L.P. grill is there gas in your tank ? Check your gas level.

  • Page 30: Parts Sheets

    SS 5 Replacement Parts Sheet 27 15 49600113 Bag of 13 Self-Tapping Screws 40335011 TG 33 Inner Liner - Back 49600206 Bag of 6 Wheel Channel Nuts 40335012 Drip Pan Heat Shield 49600101 Set of 3 "S" Hooks 40335013 TG Inner Liner Left...
  • Page 31 SS 5 Replacement Parts Sheet 40335024 Side Shelf Left Assembly 61a. 43100102 Back IR Knob 43320509 Towel Rack Tube 61b. 43200102 Back IR Bezel 43310201 ⁄ " Handle End - Small 61c. 54900100 Back IR Nameplate 49300101 Drip Pan 44510012...

  • Page 32: Warranty

    Warranty LIMITED LIFETIME WARRANTY Sure Heat warrants this grill to the original purchaser of our grills when subject to normal residential use to be free from defects in workmanship and materials for the periods listed below. IMPORTANT: We recommend you return the warranty registration card so that you can be contacted with any questions of safety arise that could affect you.
