AMANA
FOUR BURNER GAS GRILL w/ REAR BURNER
®
Assembly/Installation Instructions and Use & Care Guide
AM33LP-P
DPCI 009 07 0293
FOR OUTDOOR USE ONLY
For questions about features, operation/performance, parts, accessories or service,
call: 1-800-229-5647 or visit our website at www.sureheat.com
IMPORTANT:
Save for local inspector's use.
Installer: Leave installation instructions with the homeowner.
Homeowner: Keep installation instructions for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AM33LP-P and is the answer not in the manual?

Questions and answers

Related Manuals for Amana AM33LP-P

Summary of Contents for Amana AM33LP-P

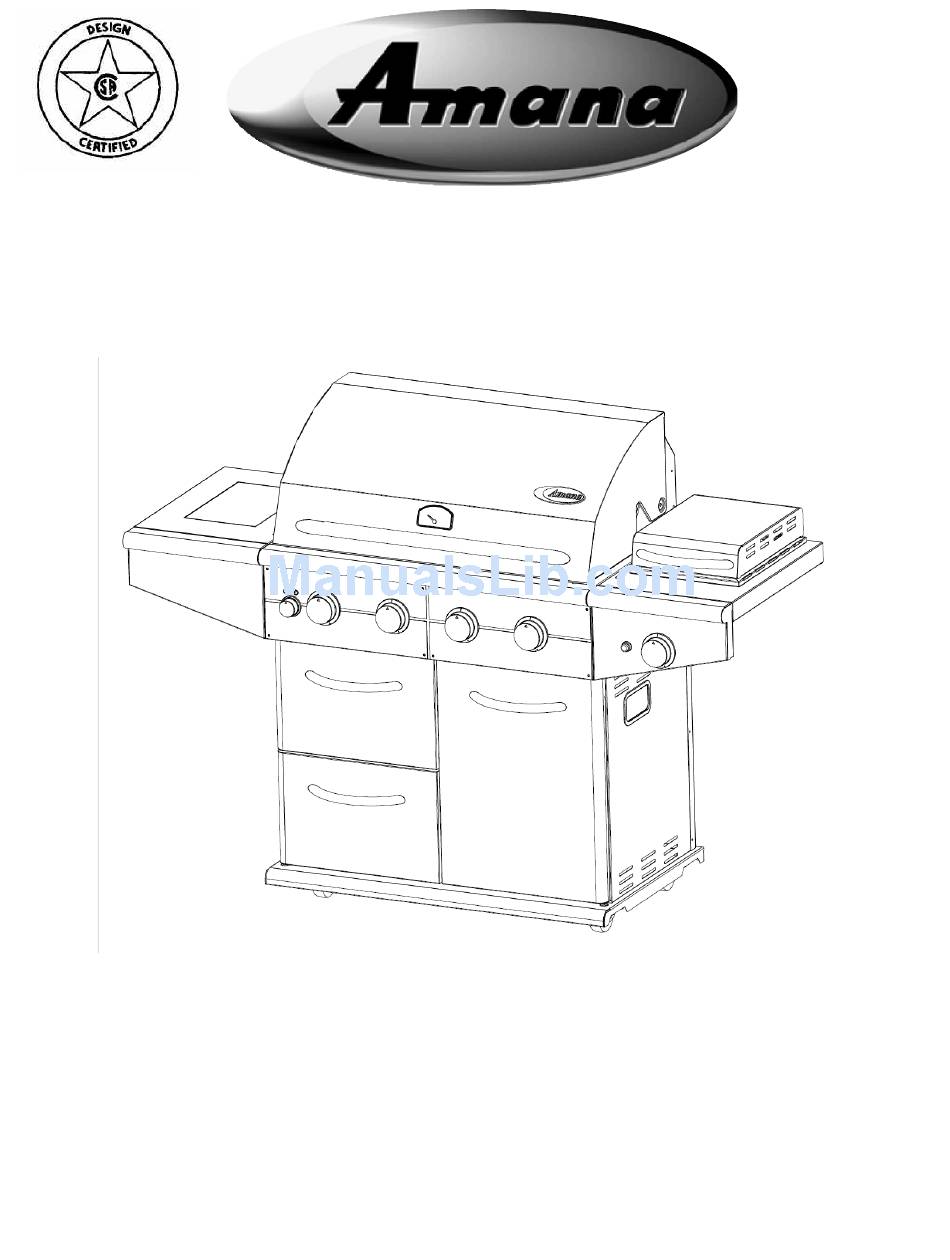

  • Page 1 AMANA FOUR BURNER GAS GRILL w/ REAR BURNER ® Assembly/Installation Instructions and Use & Care Guide AM33LP-P DPCI 009 07 0293 FOR OUTDOOR USE ONLY For questions about features, operation/performance, parts, accessories or service, call: 1-800-229-5647 or visit our website at www.sureheat.com IMPORTANT: Save for local inspector's use.
