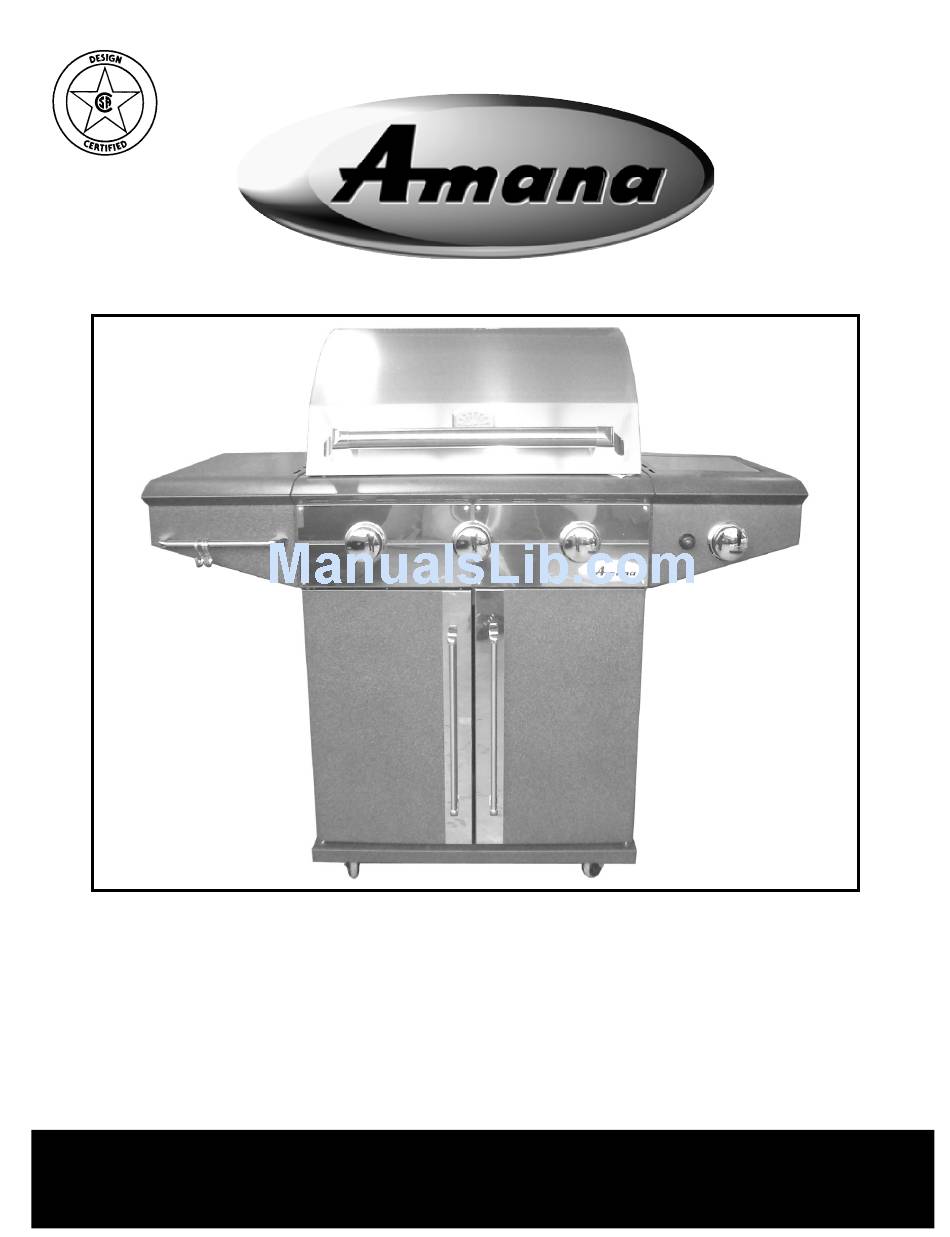

Amana™ 3 Burner Gas Grill
USE AND CARE MANUAL
ALWAYS KEEP YOUR GRILL COVERED WHEN NOT IN USE
BEFORE YOU BEGIN – We've included easy-to-follow, step-by-step instructions which have been carefully written to
ensure quick assembly of your grill. Reading the instructions will be a time saver in the end.
YOU WILL NEED – A Phillips screwdriver, adjustable wrench, 1/2" wrench or socket and a 1/4" nut driver or socket will
be needed to assemble this grill. All other necessary hardware has been included.
Questions, Missing or Damaged part? DO NOT RETURN PRODUCT TO STORE
Were here to help. Just call 1-800-229-5647 or visit us at www.sureheat.com. For faster service,
have model number and serial number on hand when calling.
FOR OUTDOOR USE ONLY
SF27LP

Advertisement

Table of Contents
loading

Summary of Contents for Amana AM27

  • Page 1 Amana™ 3 Burner Gas Grill SF27LP USE AND CARE MANUAL FOR OUTDOOR USE ONLY ALWAYS KEEP YOUR GRILL COVERED WHEN NOT IN USE BEFORE YOU BEGIN – We’ve included easy-to-follow, step-by-step instructions which have been carefully written to ensure quick assembly of your grill. Reading the instructions will be a time saver in the end.
  • Page 2: Table Of Contents

    IMPORTANT SAFETY INFORMATION Read this manual carefully before using your grill to reduce the risk of fire, burn hazard or other injury. - Extreme care should be used because of the high temperatures produced by this appliance. CHILDREN SHOULD NOT BE LEFT UNATTENDED IN AN AREA WHERE THE GRILL IS BEING OPERATED.
  • Page 3: Welcome

    Please complete and mail in the Product Registration Card included with your grill. Please retain this manual for future reference Amana™is a registered trademark of the Maytag Corporation and is used under license to Sure Heat Manufacturing © 2007 Sure Heat Manufacturing...
  • Page 4: General Safety Instructions

    General Safety Instructions Keep any electrical supply cords and the fuel supply Do not use the grill in garages, breezeways, sheds or any hose away from any heated surfaces. enclosed area. Never operate the grill in enclosed areas as this could lead to a carbon monoxide buildup, which could result in injury or death.
  • Page 5: Grill Features

    AM27 Grill Features 1. Roll top grill hood 7. Warming shelf 2. Grilling/cooking surface 8. Side burner 3. Side shelf 9. Control knob: side burner 4. Towel bar/utensil hanger 10. Electronic igniter: main burners and side burner 5. Control knobs: main burners 11.
  • Page 6: Getting Started

    Getting Started Wheel Channel Nuts x 6pcs Self-Tapping Screws x 7pcs M6 x 10 Phillips Pan Head Screw x 2pcs M5 x 12 Phillips Pan Head Screw x 8pcs M5 x 35 Phillips Pan Head Screw x 4pcs "S" Hooks x 3pcs Two People Required to Assemble Grill Tools Needed: Phillips screwdriver...
  • Page 7: Out Of Box

    Grill Out of Box Cart Side Left Side Shelf Left Assembly 12b. Main Cooking Grate Caster Assembly Left (Swivel wheels) Cart Side Right Caster Assembly Right (Swivel Wheels with lock) Cart Door Left Cart Door Right Not Shown: Cart Back Small Components Package Cart Base Tank Secure Ring...
  • Page 8 Grill Assembly STEP ONE a. Set the cart base on the floor and then lay the caster assembly left on the left side and the caster assembly right on the right side of the cart base. The large hole in the cart base will be towards the rear of the base. b.
  • Page 9 Grill Assembly STEP TWO a. Place the cart side left onto the two (2) outer caster assembly bolts, make sure the large flange is toward the front of the cart base. b. Secure the cart side left in place by hand tightening the caster assembly nuts onto the caster assembly bolts.
  • Page 10 Grill Assembly STEP THREE The Spare L.P. Gas Tank Barrier must be installed a. Use four (4) M5 x 12 phillips pan head screw to to prevent storage of spare L.P. Gas secure the Cart Back to the Cart Sides. Tanks.
  • Page 11 Grill Assembly STEP FOUR a. Use four (4) M5 x 12 Phillips Pan Head Screws to secure the Heat Shield on the Cart Sides as shown. b. Put the Drip Pan into the hole at the center of the Heat Shield.
  • Page 12 Grill Assembly STEP FIVE a. Have someone help you pick up the grill and set it on top of the cart sides as shown. b. Use four (4) M5 x 35 Phillips Pan Head Screws to secure the grill head on the top of the cart sides. c.
  • Page 13 Grill Assembly STEP SIX a. Place right hand door on an angle over the right side door pivot. b. Tilt the top of the door toward the grill, while depressing the top door pivot pin. c. Move the door slightly until the pin locks into place in the hole at the bottom of the front face.
  • Page 14 Grill Assembly STEP SEVEN a. Lay the side shelf left assembly on its side with the shelf hooks facing up. With a Phillips head screwdriver attach one handle end to the front of the shelf by one (1) M6 x 10 Phillips Pan Head screw. Note: Be careful not to scratch the sides of the shelf.
  • Page 15 Grill Assembly STEP EIGHT a. On the inside bottom of the side burner assembly you will find the brass burner cap attached with tape. Remove and set aside. b. Feed the side burner gas supply hose assembly through the grommeted hole in the side of the cart. c.
  • Page 16 Grill Assembly STEP NINE a. Place the electronic igniter into the igniter hole on the front left of the side burner shelf. To help ease the installation of the wires, make certain that the igniter wire tabs are facing away from the grill. b.
  • Page 17: Assembly

    Grill Assembly STEP TEN a. Remove two screws from the side burner valve assembly. b. Carefully insert the valve assembly into the cast burner. You will need to angle the tube into the burner assembly. Make certain that the hose is pointing down when the valve is put in place.
  • Page 18 Grill Assembly STEP ELEVEN a. Center the brass burner cap on top of the side burner head. b. Place the side burner grate on to the side burner tray.
  • Page 19 Grill Assembly STEP TWELVE a. Insert the flavor grids into the cutouts with triangle ridges facing up. b. Install main cooking grates on the ledges provided on the grill to create your cooking surface. c. Rest bread warming grate on four (4) slots above cooking grid.
  • Page 20: Gas Requirements

    Gas Requirements GENERAL INFORMATION Never attach an unregulated gas line to the appliance. Connection to an unregulated gas line can cause excessive heat or fire. Verify the type of gas supply to be used, either Natural Gas (N.G.) or Liquid Propane (L.P.), and make sure the serial plate agrees with that of the supply.
  • Page 21 Gas Requirements L.P. GAS INSTALLATION Amana™Gas Grills that are set to operate with L.P. gas come with a high capacity hose and regulator assembly. (Note: Only use the pressure regulator and hose assembly supplied with the grill or a replacement pressure regulator and hose assemblies specified by Amana™...
  • Page 22: Pre-Operation Leak Testing

    Pre Operation Leak Testing GENERAL INFORMATION Although all internal gas connections on the grill are leak tested prior to shipment, a complete gas tightness check must be performed at the installation site due to possible shifting during shipment, installation or excessive pressure unknowingly being applied to the unit. Periodically check the whole system for leaks and immediately check the system if the smell of gas is detected.
  • Page 23: Lighting The Grill

    Lighting the Grill Do not attempt to “ Light” the grill if BEFORE LIGHTING the odor of gas is present!! Important! Before Lighting... Fig. 1 Check the gas supply line for cuts, wear or abrasion. Always keep your face and body as far away from the grill as possible when lighting.
  • Page 24: Using The Grill

    Using the Grill GRILL LOCATION Do not use the grill in garages, breezeways, sheds or any enclosed area. Never operate the grill in enclosed areas as this could lead to a carbon monoxide buildup, which could result in injury or death. Place the grill on a level surface. Avoid moving the grill while it is operation.
  • Page 25: Accessory Lighting

    Using the Side Burner SIDE BURNER LIGHTING Fig. 5 Push and turn the side burner control knob to the “ HIGH” position and immediately press and hold the electronic igniter button. You’ll hear a snapping sound. It may be necessary to hold the electronic starter button for about 4 seconds.
  • Page 26: Parts Sheets

    Replacement Parts Sheet Small Components Package Main Burner Pilot Cover Bag of 6 Wheel Channel Nuts Temp Gauge Match Extender Hood Handle End Side Burner Igniter Wire Hood Handle Tube Main Burner Igniter Wire Flavor Grid Support Hood Bolt Assembly Bread Warmer Grate Support SF27 Hood Assembly Hood Support Left...
  • Page 27: Parts Sheets

    59. SF27 Front Face Overlay B 39. SF27 Grill Side Left 60. Main Control Knob 40. Cart Top Cross Brace 61. Main Burner Bezel 41. Front Face Heat Shield 62. Amana Logo 42. Magnetic Catch 63. 2 Hose Regulator Assembly 43. SF27 Grill Side Right...
  • Page 28: Care And Maintenance

    Care and Maintenance GENERAL MAINTENANCE - Keep out door cooking gas appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids. - Do not obstruct the flow of combustion and ventilation air. - Keep the ventialtion openings of the cylinder enclosure free and clear from debris. - Visually check the burners.
  • Page 29: Troubleshooting

    Troubleshooting Your Grill GENERAL TROUBLE SHOOTING You should inspect the burners at least once a year or immediately if any of the following conditions occur: • The smell of gas. • Flames appearing mostly yellow. (some yellow at the tips is OK) •...
  • Page 30: Troubleshooting

    Troubleshooting Your Grill PROBLEM SOLUTION Grill will not light with a match or low heat with dial set • Is your gas supply fully turned on? to "High" position. • If this is an L.P. grill is there gas in your tank ? Check your gas level.
  • Page 31: Warranty

    DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE. If the Amana Grill does not operate properly, first thoroughly carry out the instructions provided with the unit to ensure that the appliance is installed correctly and check the troubleshooting section in the use and care manual.
