- Page 1 User Manual...
- Page 2 Copyright Notice Chauvet owns the content of this User Manual in its entirety, including but not limited to pictures, logos, trademarks, and resources. © Copyright 2014 Chauvet. All rights reserved.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1. Before You Begin ............................1 What Is Included ................................1 Claims ......................................1 Manual Conventions ..................................1 Symbols ....................................... 1 Product At A Glance ..............................2 Safety Notes ................................. 2 Personal Safety .................................... 2 Mounting And Rigging .................................. - Page 4 Table of Contents 5. Technical Information ..........................16 Product Maintenance ..............................16 6. Technical Specifications ......................... 17 Returns ..................................18 Contact Us ..............................18 -ii- COLORado™ 2-Quad Zoom VW Tour User Manual Rev. 2...
-
Page 5: Before You Begin
If the box or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. -
Page 6: Product At A Glance
This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained Chauvet certified technicians. Do not open the housing or attempt any repairs. -
Page 7: Introduction

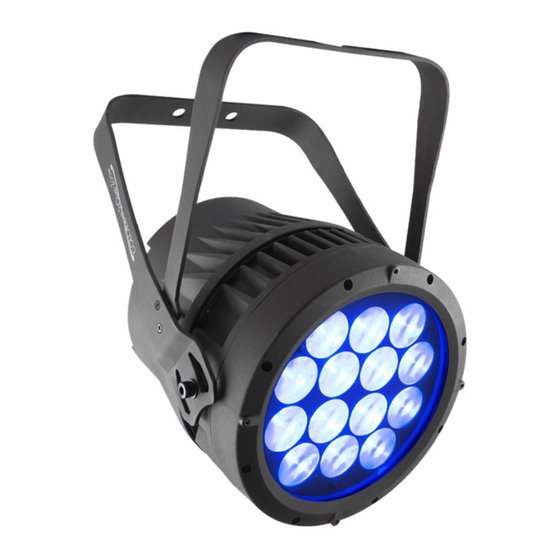

Introduction 2. I NTRODUCTION Description The COLORado™ 2-Quad Zoom VW Tour is a high-power quad-color (2-CW/2-WW) LED wash product with color mixing (CW/WW) and zoom control. This product consists of a single module that houses the internal power supply, the control panel, the LED drivers, the LED boards, and motorized moving lenses,... -
Page 8: Overview
Introduction Overview Power In DMX In DMX In Power Out DMX Out DMX Out Double-Yoke Bracket Control Panel Rear View Side View Safety Cable Loop Adjustment Knob Front View Top View COLORado™ 2-Quad Zoom VW Tour User Manual Rev. 2... -
Page 9: Dimensions
Introduction Dimensions 11.14 in 11.14 in 283 mm 283 mm 9.30 in 236 mm 13.70 in 348 mm COLORado™ 2-Quad Zoom VW Tour User Manual Rev. 2... -
Page 10: Setup
The listed current rating indicates the maximum current draw during normal operation. For more information, you may download Sizing Circuit Breakers from the Chauvet website: www.chauvetlighting.com/download/pro. Always connect this product to a protected circuit with an appropriate electrical ground to avoid the risk of electrocution or fire. -
Page 11: Power Linking
13 products at 120 V; up to 16 at 208 V; or up to 17 at 230 V. This product comes with a power input cord. Power linking cables are available from Chauvet for purchase. DMX Linking You can link the COLORado™ 2-Quad Zoom VW Tour to a DMX controller using a 3- or 5-pin connection. -
Page 12: Mounting
You must supply your own mounting clamps. Make sure the clamps (such as CLP-15 from Chauvet) are capable of supporting the weight of this product. Use at least one mounting point per product. -
Page 13: Operation
Operation 4. O PERATION Control Panel Button Function Description <MENU> Exits from the current menu or function <ENTER> Enables the currently displayed menu or sets the currently selected value in to the current function <UP> Navigates upward through the menu list or increases the numeric value when in a function <DOWN>... -
Page 14: Menu Map
Operation Menu Map Main Level Programming Levels Description Combines warm white (W.) and cool white (C.) to make a custom color (0–100%) STAT 000–255 Changes the beam angle (zoom) DMX mode SLAV Master/Slave mode D.001–D.512 Selects the DMX starting address 10-channel: dimmer, fine dimmer, warm white, fine warm STD.P white, cool white, fine cool white, macros, strobe, zoom,... -
Page 15: Configuration (Standalone)
Operation Configuration Use standalone configuration to operate the product without a DMX controller. (Standalone) Master/Slave The Master/Slave mode allows a group of COLORado™ 2-Quad Zoom VW Tours (the slaves) to simultaneously duplicate the output of another COLORado™ 2-Quad Zoom VW Tour (the master) without a DMX controller. 1. -
Page 16: Control Panel Lock
Operation Control Panel This setting enables you to activate or disable the control panel lock, which keeps non- authorized personnel from changing the product’s settings. Lock 1. Go to the KEY main level. 2. Select ON or OFF. When the control panel lock is active, the product will prompt you to enter the passcode after 30 seconds of control panel inactivity or after turning on the product. -
Page 17: Configuration (Dmx)
Operation Configuration Use DMX configurations to operate the product with a DMX controller. (DMX) This setting allows you to choose a particular DMX personality. 1. Go to the PERS main level. Personalities 2. Select the desired personality (STD.P, STD.Y, STD.W, or UNO). ·... -
Page 18: Dmx Values
Operation DMX Values STD.Y Channel Function Value Percent/Setting 000 ó 255 0–100% Dimmer 000 ó 255 Fine control Fine Dimmer 000 ó 255 0–100% Warm White 000 ó 255 Fine control Fine Warm White 000 ó 255 0–100% Cool White 000 ó... -
Page 19: Dmx Values (Cont.)
Operation DMX Values (Cont.) STD.W Channel Function Value Percent/Setting 000 ó 255 0–100% Dimmer 000 ó 255 Fine control Fine Dimmer 000 ó 010 No function 011 ó 050 White 1 051 ó 080 White 2 White Macros 081 ó 110 White 3 111 ó... -
Page 20: Technical Information
Technical Information 5. T ECHNICAL NFORMATION Product To maintain optimum performance and minimize wear, you should clean this product frequently. Usage and environment are contributing factors in determining the cleaning Maintenance frequency. As a rule, clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating. -
Page 21: Technical Specifications
Technical Information 6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 11.1 in (283 mm) 9.3 in (236 mm) 13.8 in (348 mm) 17.8 lb (8.1 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection... -
Page 22: Returns
Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. Chauvet will refuse any product returned without an RMA number.
