CFM Packet Counter

This window displays the CFM packet Rx/Tx counters on the Switch. Enter the ports you wish to view and click Find.
To view this window, click Monitoring > CFM > CFM Packet Counter as shown below:
Parameter
Port List:
Type:
Click Find to display the information.

CFM MIPCCM Table

This window displays the CFM MIPCCM entries on the Switch.
To view this window, click Monitoring > CFM > CFM MIPCCM Table as shown below:

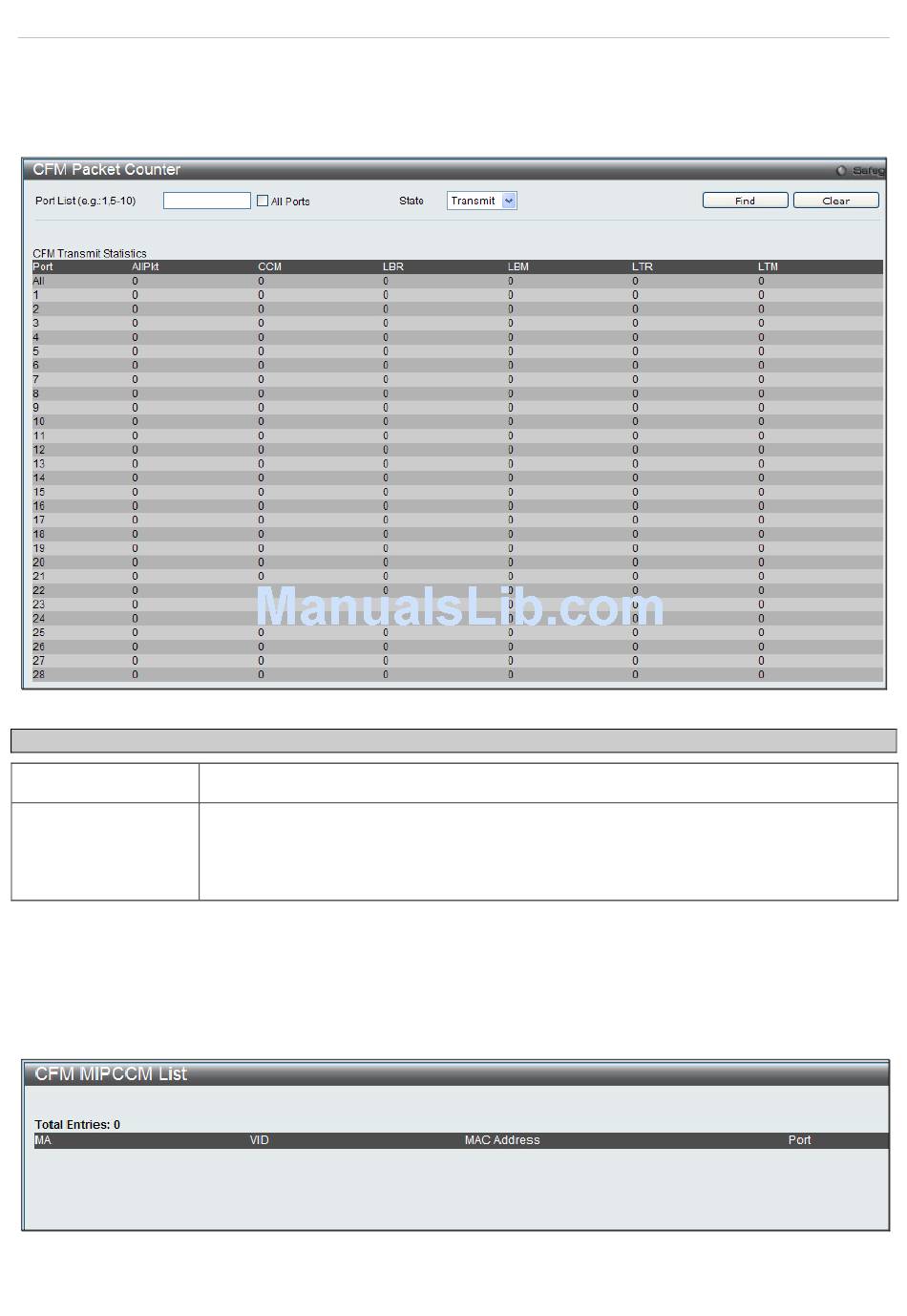

Figure 7 - 37. CFM Packet Counter List window
Description
Select the ports to display. If not specified, all ports will be shown.
Receive – Selecting this option will display all the CFM packets received.
Transmit – Selecting this option will display all the CFM packets transmitted.
CCM – Selecting this option will display all the CFM packets transmitted and received.
Figure 7 - 38. CFM MIPCCM Table
