xStack® DES-3200 Series Layer 2 Ethernet Managed Switch WEB UI Reference Guide
UMB_cast (Rx)
These windows display the UMB_cast Rx packets on the Switch. To select a port to view these statistics for, select the
port by using the Port pull-down menu. The user may also use the real-time graphic of the Switch at the top of the
Web page by simply clicking on a port.
To view the following graph of UMB cast packets received on the Switch, click Monitoring > Packets > UMB_cast
(Rx):

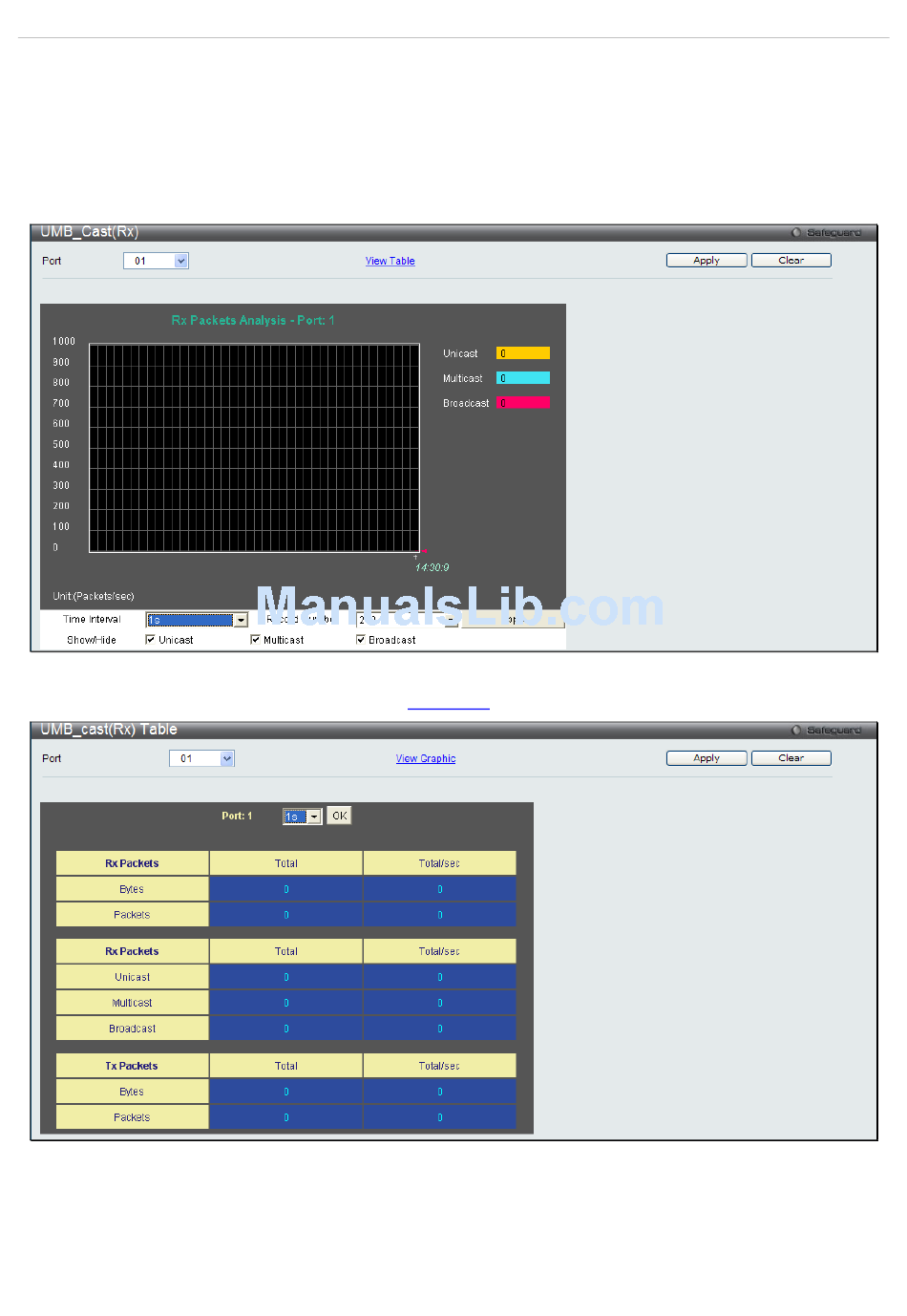

Figure 7 - 9. UMB_cast (Rx) window (for Unicast, Multicast, and Broadcast Packets)
To view the UMB_cast (Rx) Table window, click the
View Table
link.
Figure 7 - 10. UMB_cast (Rx) Table window (for Unicast, Multicast, and Broadcast Packets)
