Authenticator Diagnostics

This window contains the diagnostic information regarding the operation of the Authenticator associated with each
port. An entry appears in this table for each port that supports the Authenticator function.
To view the Authenticator Diagnostics window, click Monitoring > Port Access Control > Authenticator
Diagnostics:
The following fields can be viewed:
Parameter
Port
Connect Enter
Connect LogOff
Auth Enter
Auth Success

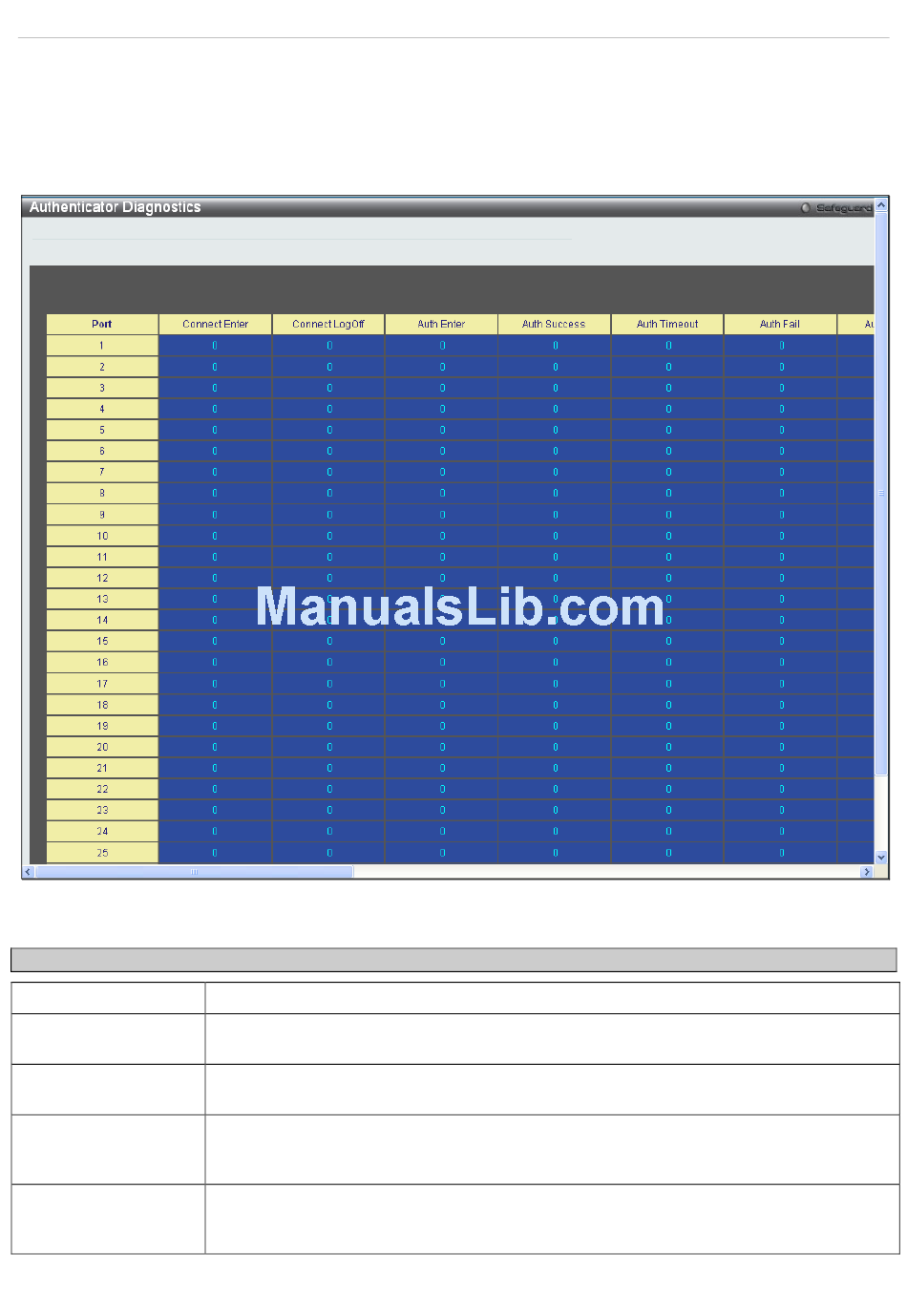

Figure 7 - 22. Authenticator Diagnostics window
Description
The identification number assigned to the Port by the System in which the Port resides.
Counts the number of times that the state machine transitions to the CONNECTING state
from any other state.
Counts the number of times that the state machine transitions from CONNECTING to
DISCONNECTED as a result of receiving an EAPOL-Logoff message.
Counts the number of times that the state machine transitions from CONNECTING to
AUTHENTICATING, as a result of an EAP-Response/Identity message being received from
the Supplicant.
Counts the number of times that the state machine transitions from AUTHENTICATING to
AUTHENTICATED, as a result of the Backend Authentication state machine indicating
successful authentication of the Supplicant (authSuccess = TRUE).
