xStack® DES-3200 Series Layer 2 Ethernet Managed Switch WEB UI Reference Guide

Ethernet OAM

This folder contains two windows to view Ethernet OAM Event Log information and Ethernet OAM Statistics.

Browse Ethernet OAM Event Log

This window allows the user to view the Ethernet OAM event log information. The Switch can buffer up to 1000 event
logs. The event log will provide and record detailed information about each OAM event. Specify the port number and
port list you wish to view and click Find. To remove an entry, enter the appropriate information and click Clear.
To view this window, click Monitoring > Ethernet OAM > Browse Ethernet OAM Event Log as shown below:

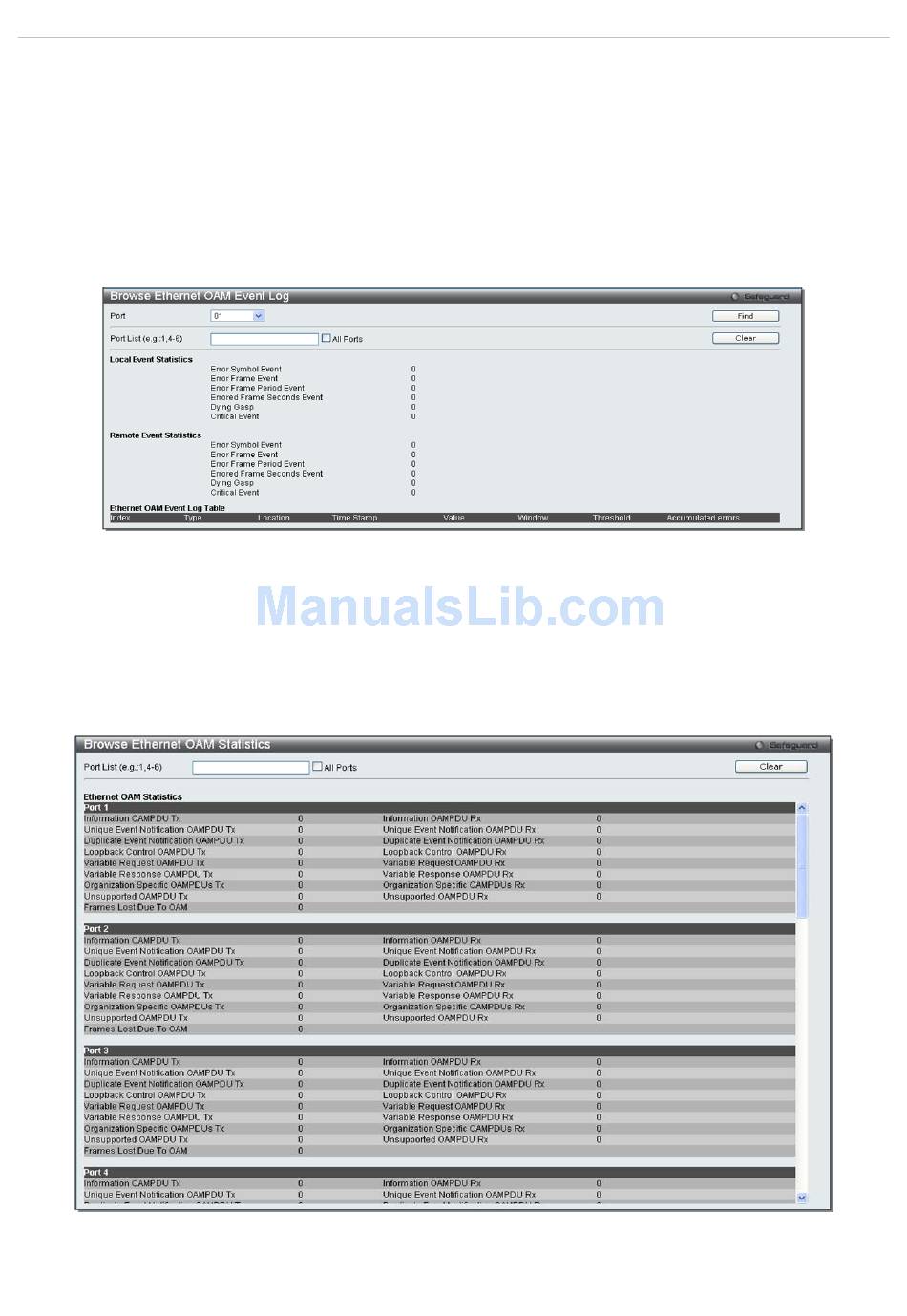

Figure 7 - 33. Browse Ethernet OAM Event Log window

Browse Ethernet OAM Statistics

This window displays the Ethernet OAM Statistic information on each port of the Switch. To clear information for a
particular port or list of ports enter the ports and click Clear.
To view this window, click Monitoring > Ethernet OAM > Browse Ethernet OAM Statistics as shown below:
Figure 7 - 34. Browse Ethernet OAM Statistics window
239
