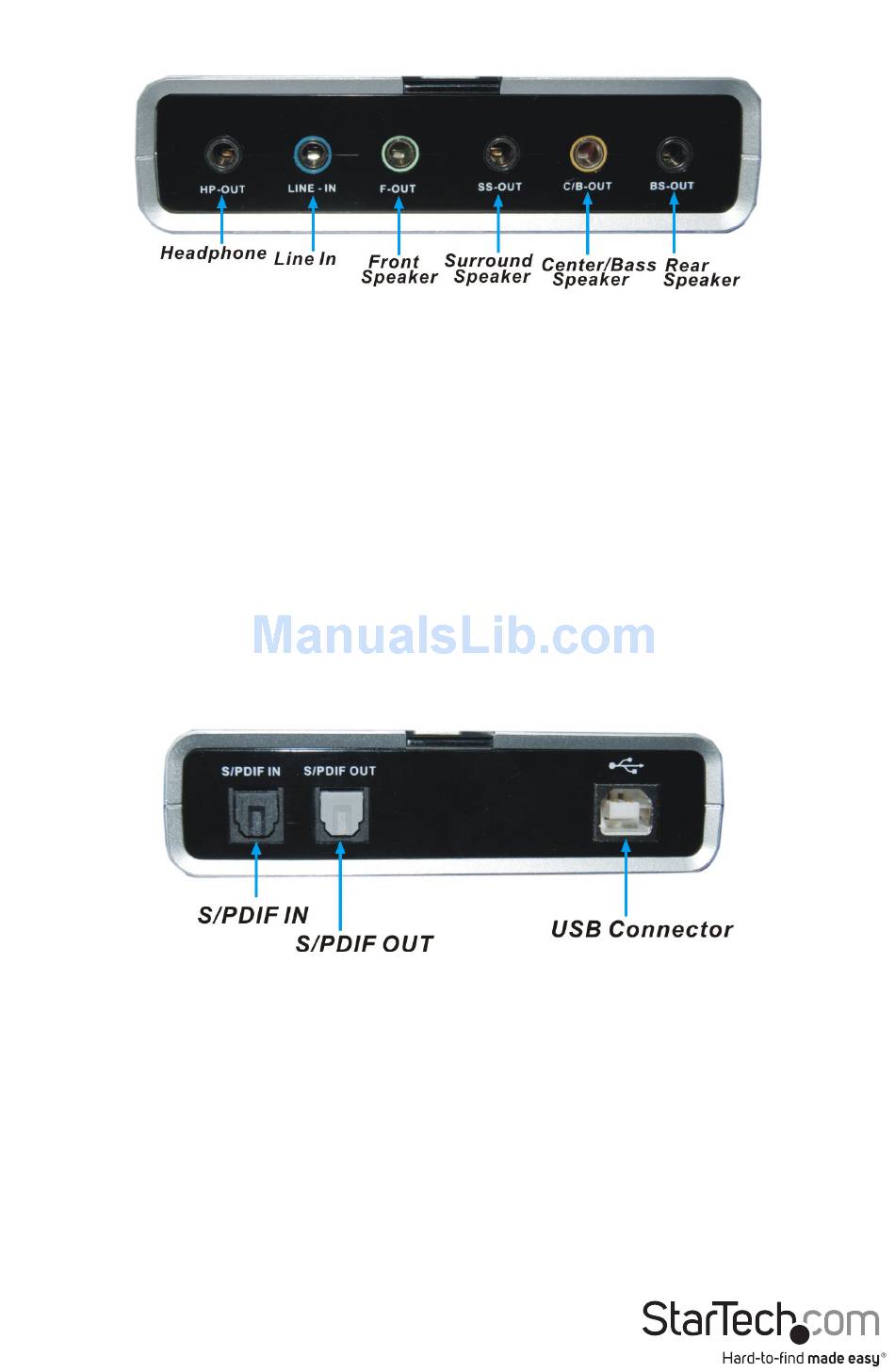

Front View
Headphone: Connect to headphone.
Line In: Connect to tape/CD/DVD Player, or other audio sources for output mixing
and/or recording.
Front Speaker: Connect to Front speakers (via external amplifier).
Surround Speaker: Connect to Surround speakers while in 4/6/8 channel modes (via
external amplifier).
Center/ Bass Speaker: Connect to Center/Bass speakers while in 6/8 channel modes (via
external amplifier).
Rear Speaker: Connect to Rear speakers while in 8 channel mode (via external amplifier).
Rear View
S/PDIF IN: Connect to the digital optical output of external audio device via a Toslink cable. The
signal only passes through to the S/PDIF OUT.
S/PDIF OUT: Connect to the digital optical input of an external audio device via a Toslink cable.
USB Connector: Plugs into the system's USB port.
