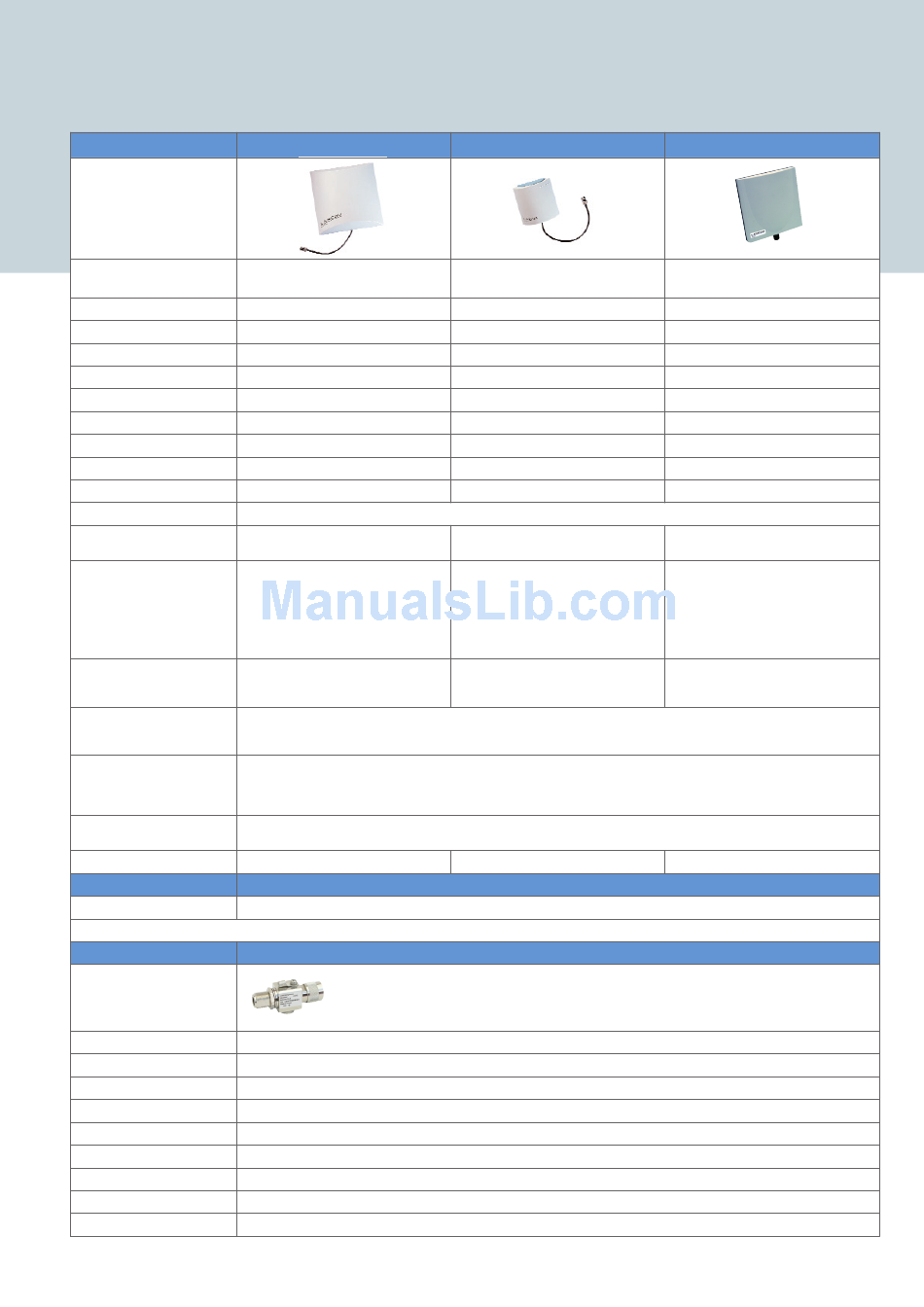

Lancom AirLancer Extender O-30 Specification page 2

AirLancer Extender outdoor antennas
AirLancer Extender O-30
Designed for 14-dBi-directional antenna
for outdoor use
Frequenzy range 2400 – 2483.5 MHz (ISM)
Antenna gain 14 dBi
Range (Point to Point) up to 3000 m
Data rate up to 108Mbps
Directivity pattern directional 30° (3 dB beamwidth)
Polarization vertical, linear
VSWR 1.4 : 1
Front to back ratio > 15 dB
Impedance 50 Ohms
Mounting
Dimension (H x W x D) 240 x 240 x 60 mm
Mounting ca. 100 x 55 x 45 mm
Wiring and connectors 9 m ULA168
(N connector male – reverse SMA female)
jumper-cable 0.10 m
(Reverse SMA male – proprietary
connector for AirLancer MC-11, MC-11b,
FCC-conform)
RP-SMA terminator
Operational environment - 20 °C to +60 °C,
up to 100 % humidity at 25 °C
Optional connections Direct to the Reverse SMA connector of the main antenna connector of LANCOM Wireless access points. When combining the AirLan-
cer Extender antennas with the OAP Wireless, the supplied cables are not suitable for use with the SMA connector. The access point
is supplied with a 1m adapter cable.
Approvals/standards The antenna is suitable for operation with LANCOM Wireless base stations only. The overall system meets CE standards and may be
operated under strict observation of the guidelines for the use of frequency ranges and transmission power.
For this purpose, LANCOM access points feature a setting for transmission power.
Further information is available in the LANCOM Reference Manual and at www.lancom.de
Service Warranty 2 years
Support via hotline und internet
Item no. 60478
Accessories
Cable AirLancer cable NJ-NP 3m, 6m, 9m – extension cable item no. 61230, 61231, 61232
AirLancer Extender SA-5-Surge protector
Application range 5-GHz surge protector
Impedance 50 Ohms
Max. power 200 Watts
Insertion loss < 0.1dB
Conducted voltage 350 V DC
Connectors Standard N plug and N jack, fixation for ground line
Dimensions 75 x 25 x 35 mm
Operational environment -20° to +60°C, up to 100% humidity at 25°C
Item no. 61212
AirLancer Extender O-70
Pico-cell antenna
for indoor and outdoor use
2400 – 2483,5 MHz (ISM)
8.5 dBi
up to 1300 m
up to 108Mbps
directional 70° (3 dB beamwidth)
vertical, linear
1.5 : 1
> 12 dB
50 Ohms
for wall or pylon mounting (pylon ø 40 – 60 mm) adjustable
125 x 120 x 50 mm
Mounting 100 x 85 x 75 mm
6 m ULA168
(N connector male – reverse SMA female)
jumper-Kabel 0.10 m
(Reverse SMA male – proprietary
Anschluss für AirLancer MC-11, MC-11b,
FCC-conform)
RP-SMA terminator
- 10 °C to +55 °C, up to 95 % humidity
(non condensing)
60469
AirLancer Extender O-18a
18dBi-directional antenna for indoor and
outdoor use
5.25 – 5.875 GHz
18 dBi
up to 8000 m
up to 108Mbps
18° horizontal, 18° vertical
vertical, linear
1.5 : 1
25 dB
50 Ohms
215 x 200 x 48.5 mm
1 m ULA168 RP-SMA jack to N plug ;
3 m HDF 400 N jack to N plug
(prepared for integration
of AirLancer Extender SA-5)
RP-SMA terminator
- 40°C to +80°C, up to 95% humidity at
25°C (non condensing),
wind speed up to 216 km/h
61210
