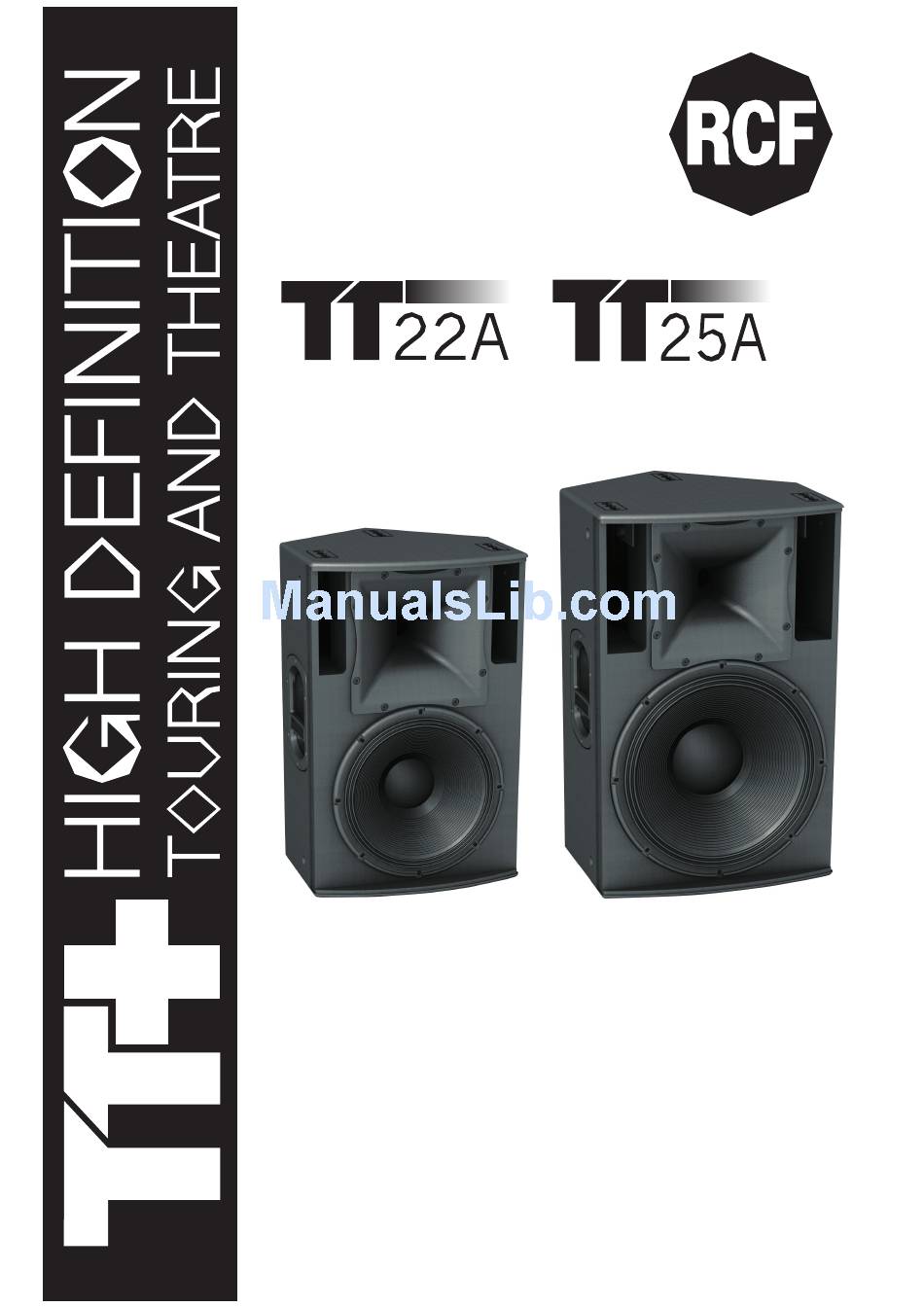

RCF TT22A Quick Manual

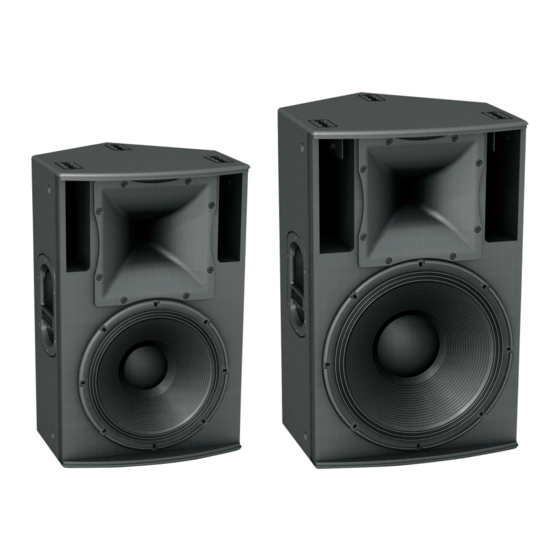

Professional active speaker systems tt+ high definition touring and theatre
Hide thumbs

Advertisement

Available languages

Available languages

Table of Contents

PROFESSIONAL ACTIVE SPEAKER SYSTEMS
"HIGH OUTPUT AT PREMIUM SOUND QUALITY"
We started the design of our TT+ compact speakers with a clear
idea in mind: maximum high quality audio SPL in the smallest
weight and size. Thanks to our state of the art neodymium
transducers, premium quality analog processing and powerful
class D amplifiers we reached and surpassed our original goals.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TT22A and is the answer not in the manual?

Questions and answers

Related Manuals for RCF TT22A

Summary of Contents for RCF TT22A

  • Page 1 PROFESSIONAL ACTIVE SPEAKER SYSTEMS “HIGH OUTPUT AT PREMIUM SOUND QUALITY” We started the design of our TT+ compact speakers with a clear idea in mind: maximum high quality audio SPL in the smallest weight and size. Thanks to our state of the art neodymium transducers, premium quality analog processing and powerful class D amplifiers we reached and surpassed our original goals.

  • Page 2: Important Notes

    Also check the suitability of the support surface to which the product is anchored (wall, ceiling, structure, etc.), and the components used for attachment (screw anchors, screws, brackets not supplied by RCF etc.), which must guarantee the security of the system/installation over time, also considering, for example, the mechanical vibrations normally generated by the transducer.
  • Page 3 There are many different ingredients that go into creating quality products and systems. These include computer aided simulation software to assist the understanding of transducer behaviour and amplifier operation and the relationship of dynamics and transient response. RCF utilise over thirty state of the art software packages to identify magnetic circuits, voice coil dynamics, suspension linearity, horn dispersion simulation, crossover filters, amplifier thermal behaviour etc.

  • Page 4: Rear Panel Features And Controls

    Provides 24 dB/octave high-pass filtering for application in conjunction with subwoofers. AC POWERCON RECEPTACLE. RCF TT+ series uses a POWERCON locking 3-pole AC mains. Always use the specific power cord provided in the package. POWER INDICATOR. When the power cord is connected and the power switch is turned on this AC POWERCON LINK RECEPTACLE.

  • Page 5: Installation

    TT22A and TT25A suspending accessory TT22A/TT25A 4 points horizzontally suspended AC DS-4x p.n. 13360030 2 x TT22A/TT25A in vertical daisy chain VOLTAGE SETUP (RESERVED TO THE RCF SERVICE CENTRE) TT22-A 230 Volt, 50 Hz SETUP : FUSE VALUE T 3.15 A H 250 V 115 Volt, 60 Hz SETUP : FUSE VALUE T 6.3 A H 250 V...

  • Page 6: Avvertenze Per La Sicurezza

    L’installazione e l’utilizzo errati del prodotto esimono la RCF S.p.A. da ogni responsabilità.
  • Page 7 INTEGRAZIONE - RCF è uno dei pochi produttori di altoparlanti al mondo in grado di elaborare completamente i progetti e di costruire trasduttori, diffusori, elettronica d’amplificazione e controllo. La nostra esperienza di oltre 50 anni nel settore audio abbinata ai nostri avanzati processi di ricerca e sviluppo nonché di produzione, ci permette di integrare perfettamente tutti gli ingredienti che compongono il sistema TT+.
  • Page 8 90 HZ HIGH-PASS. Fornisce un filtro passa alto a 24 dB/ottava per applicazioni con subwoofers. PRESA AC POWERCON. La serie RCF TT+ utilizza connettori AC POWERCON . Utilizzare sempre i cavi rete POWER INDICATOR. forniti a corredo Indicazione di alimentazione presente. Quando il diffusore è connesso alla rete e l’interruttore in posizione ON il led si accende con colore VERDE.
  • Page 9 AC DS-4x p.n. 13360030 2 x TT22A/TT25A in verticale a cascata SELEZIONE DELLA TENSIONE DI ALIMENTAZIONE (RISERVATO AI CENTRI SERVIZIO RCF) TT22-A 230 Volt, 50 Hz SETUP : VALORE FUSIBILE T 3.15 A H 250 V 115 Volt, 60 Hz SETUP : VALORE FUSIBILE T 6.3 A H 250 V TT25-A 230 Volt, 50 Hz SETUP : VALORE FUSIBILE T 6.3 A H 250 V...
  • Page 10 TT22-A TT25-A ACOUSTICAL SPECIFICATIONS Frequency Response 50 - 20 Khz 40 - 20 Khz SPL peak 131 dB 136 dB Sensitivity Horizontal coverage angle 90° 90° Vertical coverage angle 40° 40° Compression Driver 1.5”neo, 75 mm voice coil 1.5”neo, 75 mm voice coil Midrange Woofer 12”neo, 87 mm voice coil...
  • Page 12 Except possible errors and omissions. RCF S.p.A. reserves tghe right to make modificatons without prior notice. Salvo eventuali errori ed omissioni. RCF S.p.A. si riserva il diritto di apportare modifiche senza preavviso. RCF SpA via Raffaello, 13 · 42010 Mancasale, Reggio Emilia tel.

This manual is also suitable for:

Tt25a
