  • Page 1 OWNER’S MANUAL MANUALE UTENTE NXL 24-A NXL 44-A TWO-WAY ACTIVE ARRAYS...

  • Page 2: Safety Precautions

    RCF S.p.A. will not assume any responsibility for the incorrect installation and / or 10. There are numerous mechanical and electrical factors to be considered when use of this product.

  • Page 3: Care And Maintenance

    WARNING! CAUTION! For powered speakers, do cleaning only when the power is turned off. RCF S.p.A. reserves the right to make changes without prior notice to rectify any errors and / or omissions. Always refer to the latest version of the manual on...

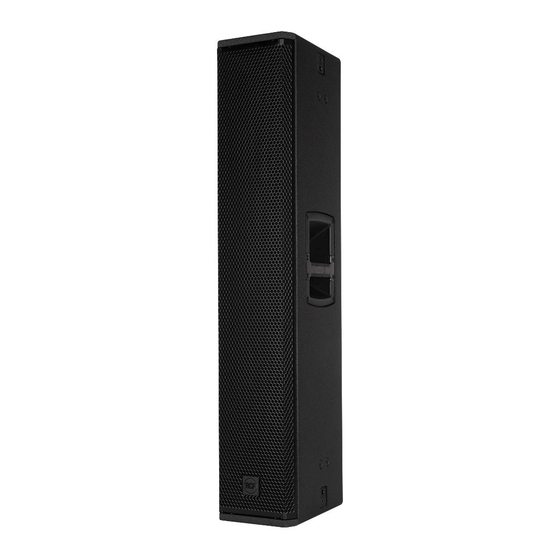

  • Page 4 NXL MK2 SERIES - THE NEXT GENERATION OF SOUND The NXL MK2 series sets a new milestone in column arrays. RCF engineers have merged purpose-designed transducers with constant directivity, FiRPHASE processing, and newly added Bass Motion Control algorithms, all driven by a 2100W amplifier. Durably built in a rugged baltic birch plywood cabinet with ergonomic handles on each side, NXL speakers are unobtrusive, flexible, and deliver remarkable audio performance to any professional audio application.

  • Page 5: Rear Panel Features And Controls

    3. REAR PANEL FEATURES AND CONTROLS PRESET SELECTOR This selector allows to select 3 different presets. By pressing the selector, the PRESET LEDS will indicate which preset is selected. LINEAR - this preset is recommended for all regular applications of the speaker.

  • Page 6: Voltage Setup

    RCF SERVICE CENTRE before connecting the speaker. This fast check will avoid any damage. In case of need of changing the voltage please call your vendor or authorized RCF SERVICE CENTRE. This operation requires the replacement of the fuse value and is reserved to an RCF SERVICE CENTRE.
  • Page 7 5. ACCESSORIES NXL 24-A ACCESSORIES STACKING KIT 2X NXL 24-A POLE MOUNT KIT NXL 24-A Pole mount accessory for stacking a Pole mount accessory for stacking an couple of NXL 24-A on a subwoofer. NXL 24-A on a subwoofer. FLY BAR NX L24-A FLY LINK KIT NXL 24-A Accessory needed for any Accessory to link a second NXL 24-A to a...

  • Page 8: Installation

    6. INSTALLATION NXL 24-A FLOOR CONFIGURATIONS NXL 24-A MOUNTED NXL 24-A MOUNTED NXL 24-A MOUNTED ON ON A STAND ON A SUBWOOFER A SUBWOOFER (single configuration) (coupled configuration) NXL 44-A FLOOR CONFIGURATIONS NXL 44-A MOUNTED NXL 44-A MOUNTED NXL 44-A MOUNTED ON ON A STAND ON A SUBWOOFER A SUBWOOFER...
  • Page 9 6. INSTALLATION NXL 24-A SUSPENDED CONFIGURATIONS 0° 15° 20° Placing the angled Placing the angled Placing the flat LINK accessory frontwards LINK accessory backwards LINK accessory allows allows the suspension of allows the suspension of the suspension of two two NXL 24-A with an angle two NXL 24-A with an angle speakers straight...
  • Page 10 6. INSTALLATION NXL 44-A SUSPENDED CONFIGURATIONS 0° 15° 20° With the FLY LINK KIT NXL 44-A accessory it is possible to link two NXL 44-A with three possible angles: 0°, 15° and 20°...
  • Page 11 WARNING! CAUTION! To use this product with the subwoofer pole-mount, before installing the system, please verify the allowed configurations and the indications regarding the accessories, on the RCF website to avoid any danger and damages to people, animals and objects. In any case, please assure the subwoofer which is holding the speaker is located on an horizontal floor and without inclinations.

  • Page 12: Troubleshooting

    7. TROUBLESHOOTING THE SPEAKER DOESN’T TURN ON Make sure the speaker is switched on and connected to an active AC power THE SPEAKER IS CONNECTED TO AN ACTIVE AC POWER BUT DOESN’T TURN ON Make sure the power cable is intact and connected correctly. THE SPEAKER IS ON BUT DOESN’T MAKE ANY SOUND Check if the signal source is sending correctly and if the signal cables are not damaged.
  • Page 13 SPECIFICATION / SPECIFICHE NXL 24-A NXL 44-A Acoustical specifications Frequency Response: 60 Hz ÷ 20000 Hz 45 Hz ÷ 20000 Hz 135 dB Max SPL @ 1m: 132 dB Horizontal coverage angle: 100° 100° Vertical coverage angle: 30° 25° Transducers Compression Driver: 1 x 1.4'' neo, 3.0'' v.c 1 x 1.4'' neo, 3.0'' v.c...
  • Page 14 NXL 24-A DIMENSIONS / DIMENSIONI...
  • Page 15 10307683 RevA RCF S.p.A. Via Raffaello Sanzio, 13 - 42124 Reggio Emilia - Italy Tel +39 0522 274 411 - Fax +39 0522 232 428 - e-mail: info@rcf.it - www.rcf.it...
