ASSEMBLY
To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of
the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubri-
cant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys
and your own Phillips screwdriver
, adjustable
wrench
, and scissors
.

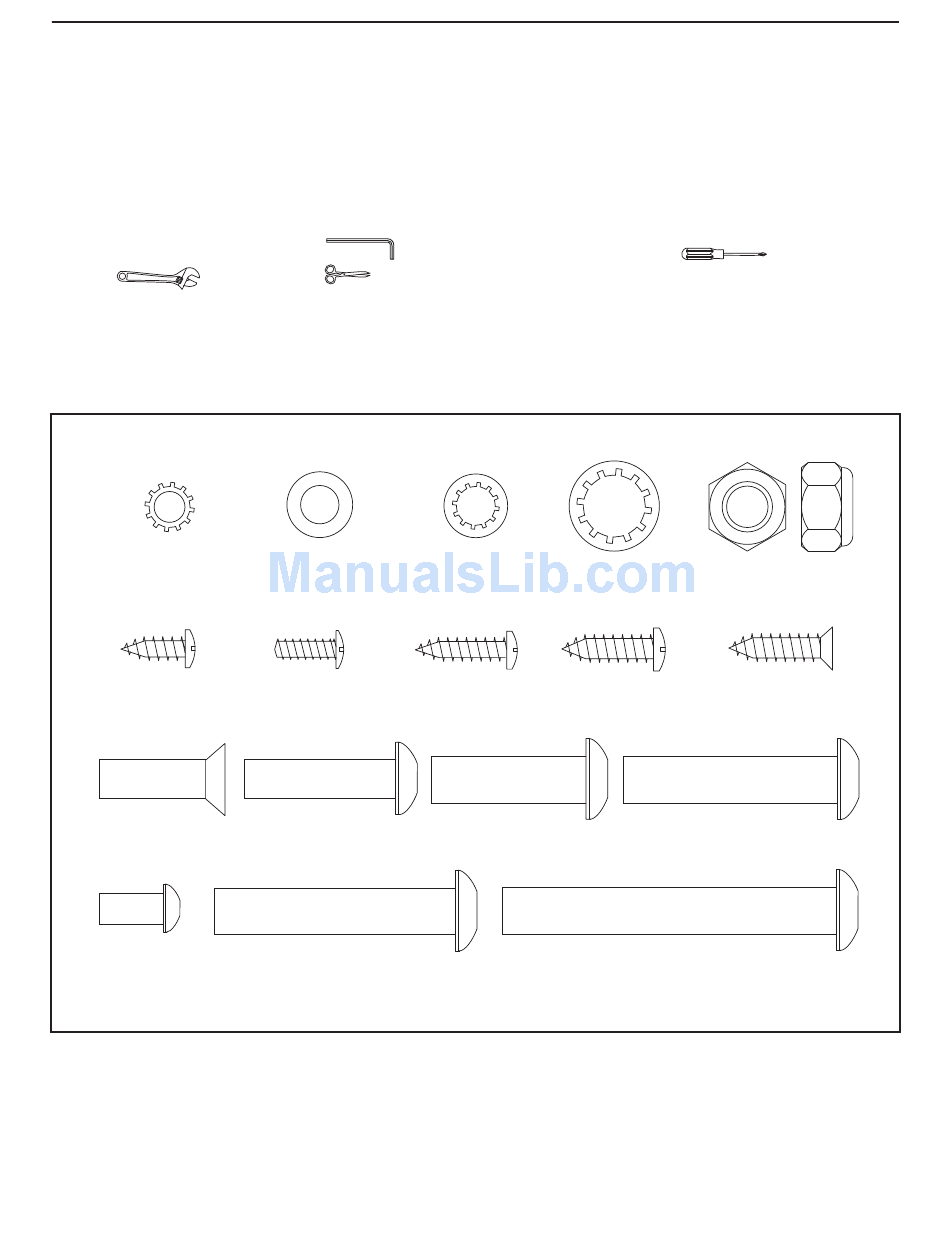

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: Some small parts may have been preassembled. To avoid dam-
aging parts, do not use power tools for assembly. Extra hardware may be included.
1/4" Star
5/16" Flat
5/16" Star
3/8" Star
3/8" Nut (12)–2
Washer (35)–6
Washer (113)–4
Washer (11)–4
Washer (13)–4
#10 x 3/4" Flat
#8 x 1/2" Ground
#8 x 1/2" Screw
#8 x 3/4" Screw
#10 x 3/4" Screw
Head Screw (112)–2
(1)–18
Screw (10)–1
(2)–8
(9)–2
5/16" x 1 1/4"
5/16" x 1"
3/8" x 1 1/4" Bolt (8)–4
3/8" x 1 3/4" Bolt (6)–1
Bolt (5)–4
Bolt (4)–2
1/4" x 1/2"
3/8" x 2" Bolt (3)–1
3/8" x 2 3/4" Bolt (7)–4
Bolt (36)–4
6
