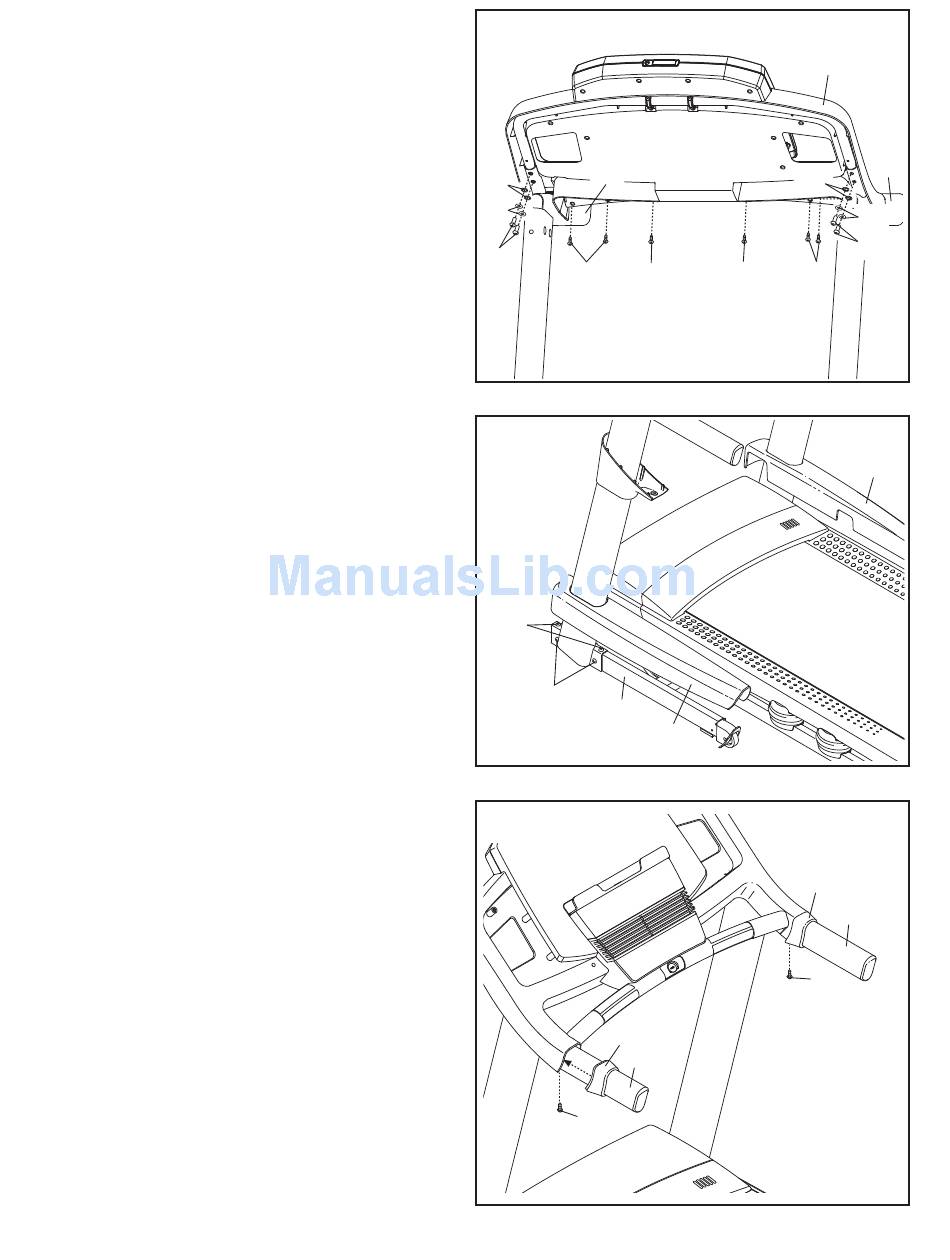

11. Set the console assembly on the Left Handrail
(88) and the Right Handrail (87). Be careful not
to pinch any wires. Insert the excess Upright
Wire (not shown) into the Left Handrail.
Attach the console assembly with six #8 x 1/2"
Screws (1) and four 1/4" x 1/2" Bolts (36) with
four 5/16" Flat Washers (113) and four 1/4" Star
Washers (35) as shown. Start all six Screws
and all four Bolts, and then tighten each of
them.
See step 7. Fully tighten the four 5/16" x 1"
Bolts (5) and the two 5/16" x 1 1/4" Bolts (4).
12. Firmly tighten the four the 3/8" x 2 3/4" Bolts (7)
and the four 3/8" x 1 1/4" Bolts (8) (only one
side is shown).
Press the Left Base Cover (82) and the Right
Base Cover (83) onto the Base (94) until they
snap into place.
13. Slide the Left Handrail Cover (85) onto the Left
Handrail (88). Slide the Right Handrail Cover
(86) onto the Right Handrail (87). Attach the
Handrail Covers with two #8 x 1/2" Screws (1).
11
87
35
113
36
1
1
12
7
8
94
13
85
88
1
11
Console
Assembly
35
1
1
82
86
87
1
88
113
36
83
