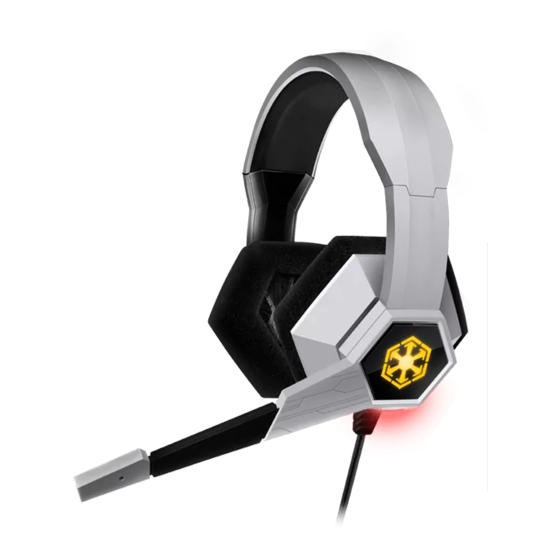

Razer Star Wars: The Old Republic Quick Manual
Gaming headset
Hide thumbs
Also See for Star Wars: The Old Republic:
- Master manual (32 pages) ,
- Master manual (30 pages)
Subscribe to Our Youtube Channel
Related Manuals for Razer Star Wars: The Old Republic
Summary of Contents for Razer Star Wars: The Old Republic
- Page 1 Инструкция для Razer Star Wars The Old Republic Перейти в карточку товара 8 800 775 98 98...
-
Page 2: Table Of Contents
Alderaan, or the iconic buzz of a lightsaber powering up behind you, thanks to the Dolby® 7.1 surround sound power of the Gaming Headset by Razer. Get clear, precise three-dimensional audio for the tactical advantage, preventing backstabs and pinpointing hotspots of action all around you. -
Page 3: Package Contents / System Requirements / Registration
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS / REGISTRATION PACKAGE CONTENTS Gaming Headset by Razer Galactic Republic Faction Symbols Sith Empire Faction Symbols Quick Start Guide SYSTEM REQUIREMENTS PC with USB port Windows® 7 / Windows Vista® (Dolby® Pro Logic IIx, Dolby®... -
Page 4: Key Features
2. KEY FEATURES A Sith Empire Faction Symbols B Galactic Republic Faction Symbols C Dolby®7.1 Surround Sound D Gold Plated USB Connector E Adjustable Noise-filtering Microphone Faction Slots... - Page 5 G Left Button 1 Microphone Volume Up H Left Button 2 Microphone Volume Down I Left Button 3 Microphone Mute J Right Button 1 Speakers Volume Up K Right Button 2 Speakers Volume Down L Right Button 3 Speakers Mute...
-
Page 6: Technical Specifications
3. TECHNICAL SPECIFICATIONS HEADPHONES Dolby® Headphone / Dolby® Pro Logic® IIx Drivers: 50mm Neodymium Magnets Frequency Response: 20 - 20,000 Hz Impedance: 32 Connector: Gold-plated USB Connector MICROPHONE Frequency Response: 50 - 16,000 Hz Sensitivity: -37dB ± 4dB Signal-to-Noise Ratio: 50dB Pick-up Pattern: Unidirectional... -
Page 7: Setting Up Your The Old Gaming Headset
Step 1: Download the Razer Synapse 2.0 installer from http://www.razersupport.com. Step 2: Run the installer and follow the onscreen instructions. Step 3: Register for a Razer Synapse 2.0 account and confirm your new account. Step 4: Plug the Gaming Headset into the USB port of your computer. -
Page 8: Using Your Gaming Headset
5. USING YOUR GAMING HEADSET Before usage, we recommend gently stretching the headphones apart before placing them over your head to minimize headband stress. However, do avoid chnical limits. MICROPHONE CONTROLS On the Left Headphone, you can increase/decrease the microphone volume or simply mute it. - Page 9 VOLUME CONTROLS On the Right Headphone, you can increase/decrease the volume or simply mute it. J. Right Button 1 Speakers Volume Up K. Right Button 2 Speakers Volume Down L. Right Button 3 Speakers Mute CHANGING THE THE OLD REP You can swap the faction emblem as shown in the diagram above.
-
Page 10: Configuring Your The Old Gaming Headset
6. CONFIGURING YOUR GAMING HEADSET Disclaimer: The features listed here require the Razer Synapse 2.0 to be installed. These features are also subject to change based on the current software version and your Operating System. PROFILE A Profile is a convenient way of saving all of the changes you have made on your device. - Page 11 VOLUME TAB The Volume Tab is your landing page when you first install Razer Synapse 2.0. This tab allows you to speaker and microphone settings. The changes made in this tab are automatically saved to your current profile. Listed below are the customization options and their descriptions.
- Page 12 Volume Slider - Increases or decreases the sound . If you wish to completely turn off the sound from your speakers, you may do so by selecting the Mute option. Balance Slider - Decreases the sound level of one headset speaker while maintaining the sound level of the other.
- Page 13 EQUALIZER TAB The Equalizer Tab allows you to filter or amplify the sound on your headset speakers. You may choose to manually adjust the sliders to each sound frequency to achieve the desired effect or choose from the available presets on the dropdown menu.
- Page 14 LIGHTING TAB The Lighting Tab allows you to customize the look of your headset by choosing from over 16 million colors for the backlight or you may select the Spectrum Cycling option to allow the colors to change indefinitely. This tab also allows you to adjust the intensity of the backlight by using the Brightness slider.
-
Page 15: Safety And Maintenance
Gaming Headset, we suggest that you adopt the following guidelines: 1. Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to www.razersupport.com for support. Do not attempt to service or fix the device yourself at any time. -
Page 16: Legalese
8. LEGALESE COPYRIGHT AND INTELLECTUAL PROPERTY INFORMATION Triple-Headed Snake logo, the Razer distressed word logo and other trademarks contained herein are trademarks or registered trademarks of Razer USA Ltd and/or its affiliated or associated companies, registered in the United States and/or other countries. - Page 17 LIMITATION OF LIABILITY Razer shall in no event be liable for any lost profits, loss of information or data, special, incidental, indirect, punitive or consequential or incidental damages, arising in any way out of distribution of, sale of, resale of, use of, or inability to of the Product.
- Page 18 Razer Star Wars The Old Republic Описание Отзывы...
