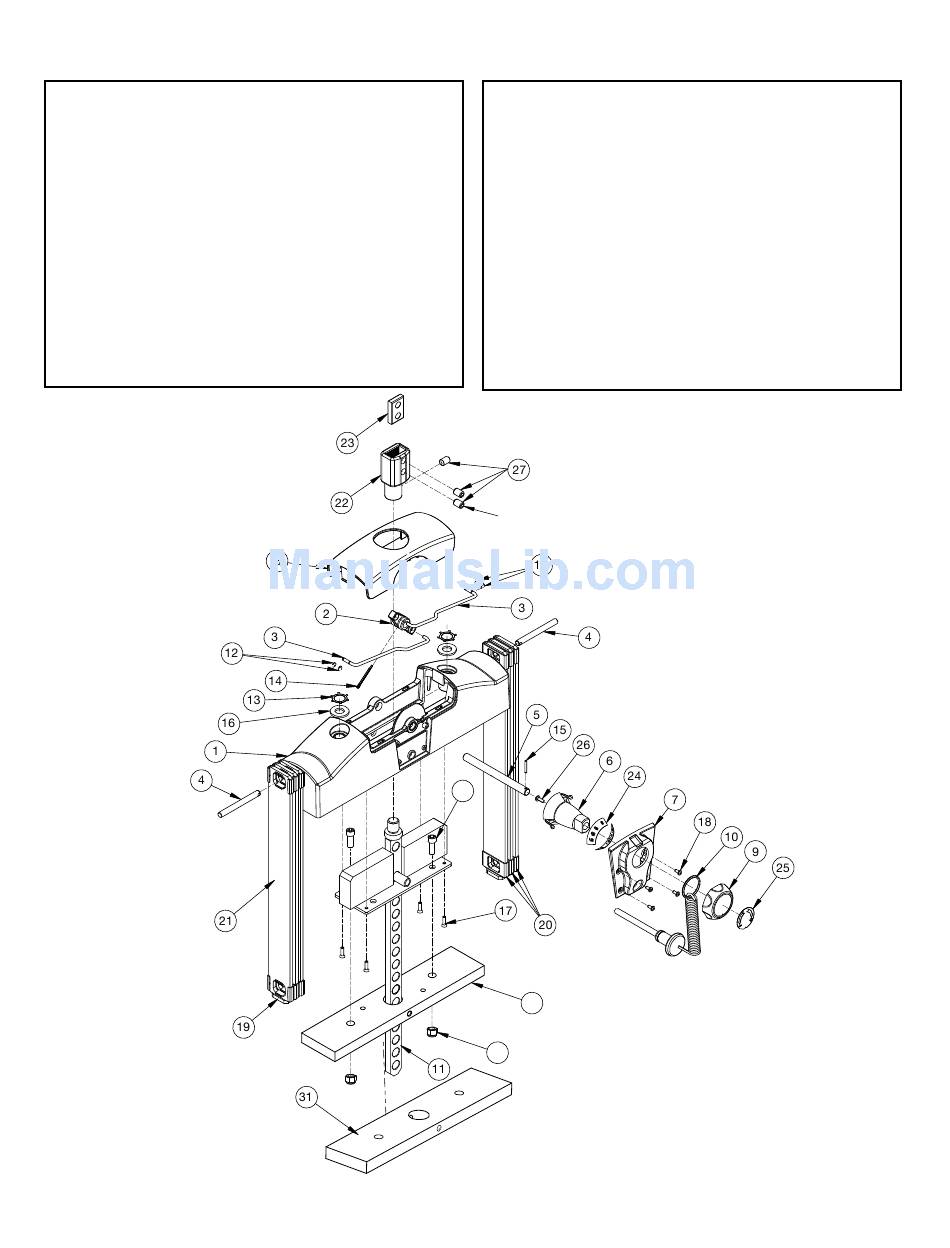

CYBEX Eagle Row Owner's And Service Manual page 41

ITEM QTY PART NO.
1 1 11040-366
2 1 11040-367
3 2 11040-369
4 2 11040-370
5 1 11040-427
6 1 11040-426
7 1 11040-424
8 1 11040-416
9 1 11040-425
10 1 BH030207
11 1 4700-251
12 4 BR030209
13 2 BR030220
14 1 HP016820
15 1 HP266765
16 2 HS720004
Cybex Eagle Row Owner's Manual
DESCRIPTION
Top Weight Assembly, Molded
Hub, Molded
Rod, Linkage
Pin
Rod
Stem
Cover Plate
Cover, Top Weight
Knob
Pin, Weight Selector
Lifting Post 15
External Retaining Ring .188
Internal Retaining Ring 1.250
Cotter Pin .125 X 1.25
Roll Pin, .125 X .938
Felt Washer, .641 1.250 .125 T
ITEM QTY PART NO.
17 4 HT562715
18 4 HT582510
19 2 11040-409
20 12 11040-572
21 6 11040-573
22 1 11040-216
23 1 11040-301
24 1 11040-428
25 1 11040-429
26 1 HT552512
27 3 HY740000
28 2 HC702817
29 2 HN704901
30 1 11030-348
31 13 4000C101
32 1 4701-013
TOURQUE SET SCREWS
300-350 IN./LBS
28
30
29
DESCRIPTION
Tap SC NO 10 x .750 F Phil
Tap SC NO 10 x .375 PN HD Phil
Molded Bumper Pad
Guard, Increment Weight
Weight Increment
Belt Clamp
Clamp Block Insert
Adjustment Decal
Rotation Decal
Screw, Pan HD Phil HD Self
Tapping 8-16 x .50, Type WB
Set Screw
SHCS 3/8 x 16 1
Lock Nut 38 X 16
Weight Plate
Weight Stack Plate
Weight Pack (Not Shown)
Page 6-11
Service
