O. With an assistant, carefully remove the six BHSCS
securing the two halves of the frame. See Figure 6.
P. Carefully lay the taller half of the frame down on the
fl oor until you are ready to move it.
Q. Carefully move each half through the door-way to the
desired location. Again, lay the taller half of the frame
down on the fl oor until you are ready to reattach the two
halves.
R. With an assistant, carefully attach each half together
using the six BHSCS removed in step 4O. See Figure 6.
S. With the fl at part facing down, carefully slide the pulley
shaft back into the machine (removed from steps 4M
and 4N).
T. Carefully slide the pivot shaft through the pulley shaft
(removed from steps 4K and 4L).
U. Secure the pivot shaft using the BHSCS removed in
step 4K.
V. Reconnect the pulley to the pulley bracket (removed in
steps 4F and 4G).
W. Verify the two belts are routed properly (one belt connecting from the cam to
the pulley bracket and the other belt connecting from the pulley to the arms).
X. Connect the weight stack belt to the belt clamp of cam (removed in step 4D).
See Figure 1.
Y. Continue on with Step 5C.
5. Remove shipping feet and remove the back shrouds.
A. Carefully remove each (standard) cone-shaped
shipping support using a 3/4" socket or wrench.
B. Cut shipping tie securing top weight.
C. Carefully place rubber feet (supplied with machine)
on each foot of the frame.
D. Lift top weight and turn the Increment Weight Adjusting Knob to select all 15 lbs. (three increment weights
each side).
E. Remove the three Phillips head screws securing the top (back) shroud and carefully remove the shroud.
See Figure 7.
F. Loosen bottom two screws shown in Figure 8.
G. Remove the top two screws securing the back shroud. See Figure 9.
H. Carefully slide rear shroud assembly upward and remove.
Cybex Eagle 11030 Row Owner's Manual
NOTE: Do not remove the bottom two screws.
Nylon Locknut (6)

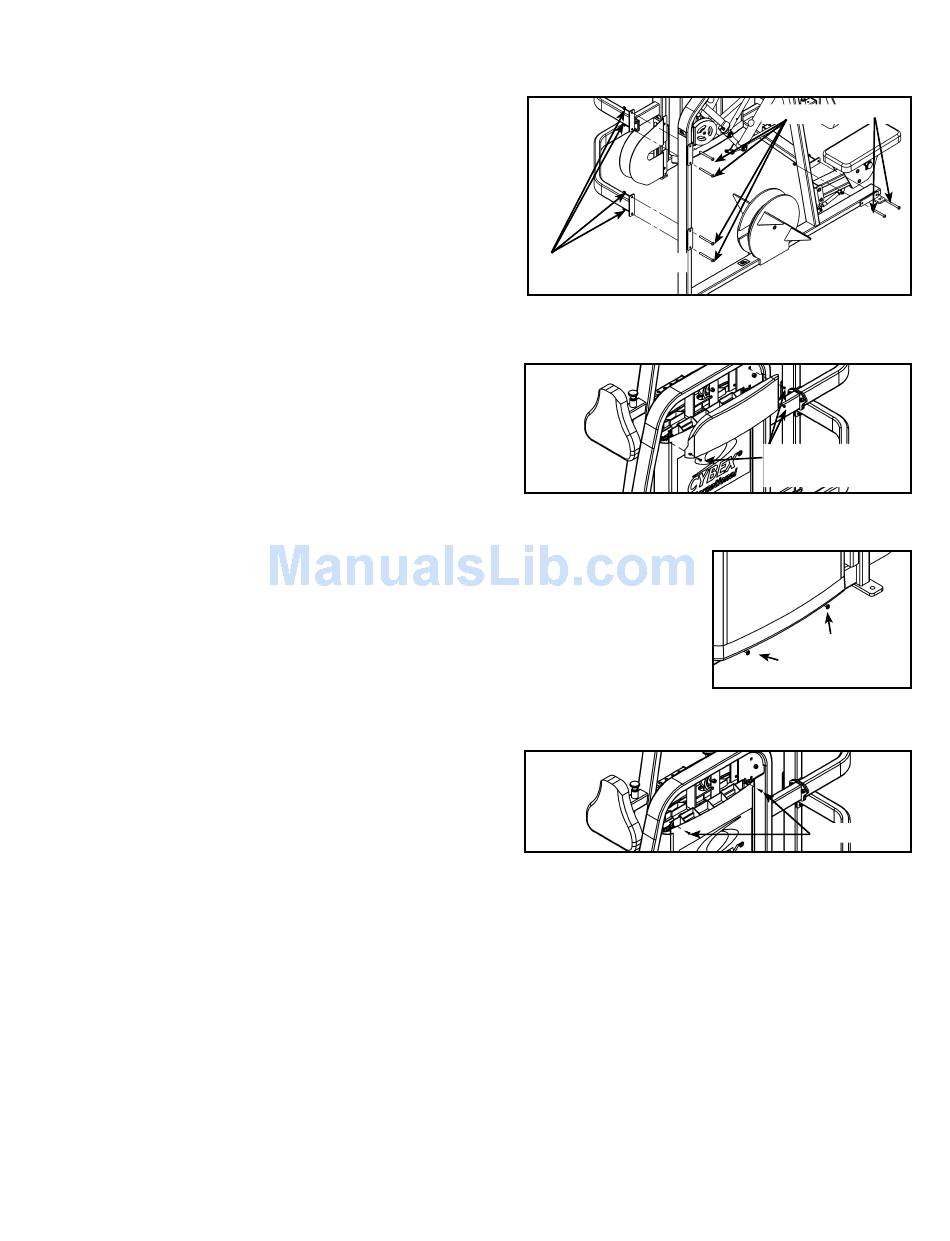

Figure 6
Figure 7
Figure 9
BHSCS (qty 6)
Phillips Head
Screw (3)
Screw (loosen -
do not remove)
Figure 8
Screw
Assembly
Page 4-3
