6. Install the weight stack.
A. Note how the increment weights are installed.
B. With an assistant holding the increment weights,
move the adjusting knob to 0 lbs. and remove all six
increment weights (three each side).
C. Using an external snap ring pliers, remove the upper
snap ring from one of the guide rods and carefully lower
the guide rod. See Figure 10.
D. Remove lower snap ring and wave washer from the guide rod. Repeat steps 6C and 6D to remove
both snap rings from other guide rod.
E. If possible, lean guide rods outward, away from machine in order to provide the most room for
installing weight plates.
F. Carefully slide top weight/second plate up and out of machine and carefully set it aside.
G. Wipe guide rods clean over entire length. Lubricate with light coating of medium weight automotive engine oil.

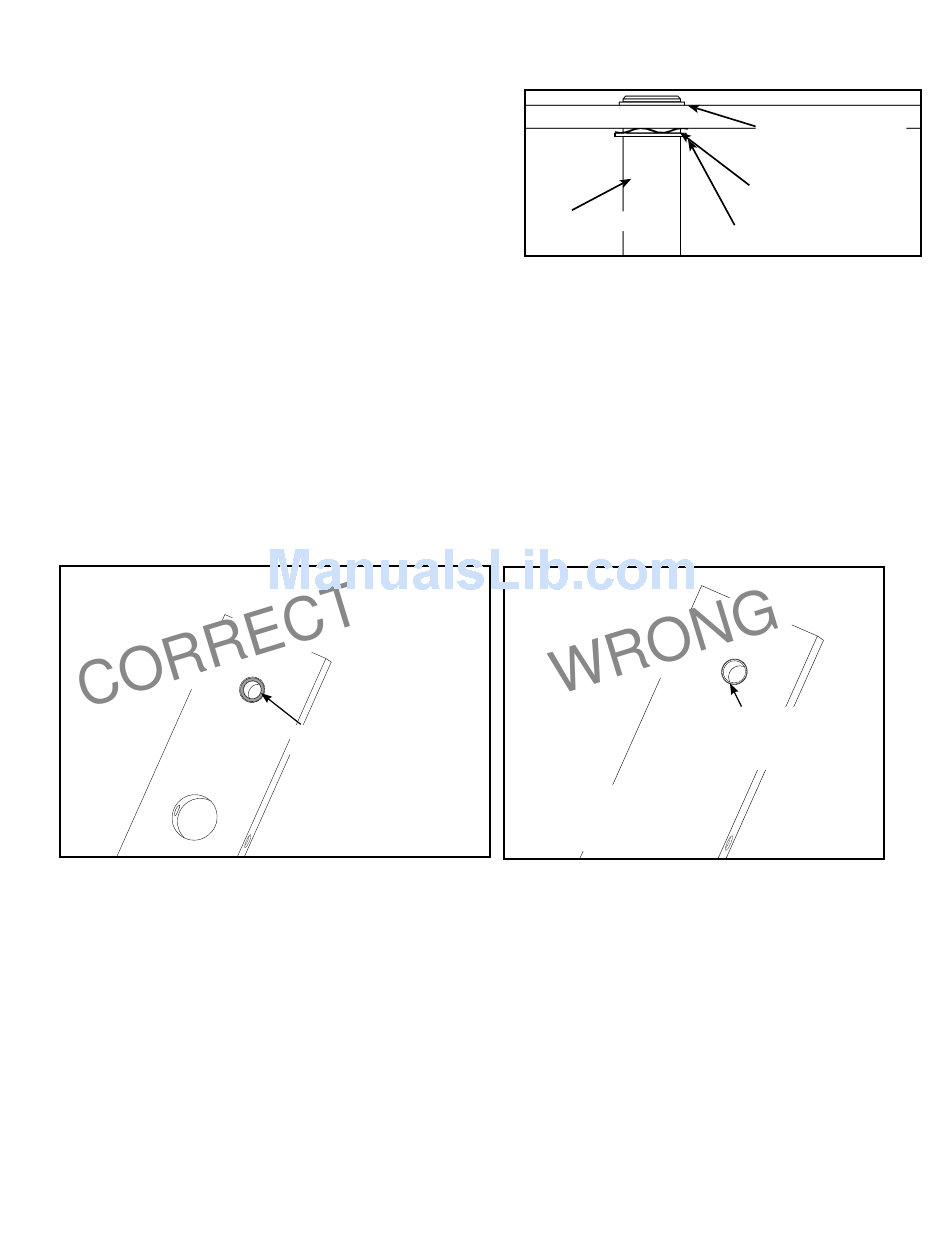

H. Carefully install each weight plate one at a time.
so wide edges of bushing face upward and narrow edges of bushing face downward. See Figures 11A
and 11B.
Figure 11A
I. Carefully slide the top weight/second plate onto the guide rods.
J. Place lower snap ring and wave washer onto guide rod (about 3" from the top end of guide rod).
K. Raise guide rod up through mounting hole and install the upper snap ring.
L. Lower guide rod and secure lower snap ring. Repeat steps 6J - 6L for the other guide rod.
Assembly
Page 4-4
Cybex Eagle 11030 Row Owner's Manual
NOTE: When installing weight plates, position plates
WIDE bushing
edge faces
upward
Frame
Guide rod
Figure 10
NOTE: The narrow bushing
edge must face downward.
Figure 11B
Upper snap ring
Wave washer
Lower snap ring
NARROW
bushing edge
