7. Belt Routing.
A.
Verify belt is routed through top of pulley bracket and
then route end of belt down to the top weight.
B.
Carefully lift top weight and verify that the position of
the belt clamp (on the top weight) is aligned properly
with the top pulley bracket (on the machine). See
Figure 12.
C.
Slide belt through slot in belt clamp.
D.
Verify belt and insert are installed properly, as shown
in Figure 13A. NOTE: Do not install the insert
backwards as shown in Figure 13B.
E.
Pull belt tight and secure belt to clamp with the two
set screws. NOTE: Torque set screws 300-350 in./lbs.
See Figure 14.
F.
Place weight stack pin in each plate to verify proper
installation.
G.
Without selecting any resistance, lift top weight up and
down (simulating normal operation).
H.
Have an assistant verify that the belt is moving smoothly
and is routed straight from the top pulley bracket to the
to weight belt clamp.
I.
Reinstall the six increment weights that were removed
in step 6B. See Figure 15.
J.
Turn the Increment Weight Adjusting Knob to select all
15 lbs.
8. Install back shrouds.
A.
Carefully place shroud back into position on the two
bottom screws. See Figure 16.
Cybex Eagle 11030 Row Owner's Manual
Insert and Set Screws (not
shown) are on this side.
Belt
Increment
Weight
Adjusting
Knob

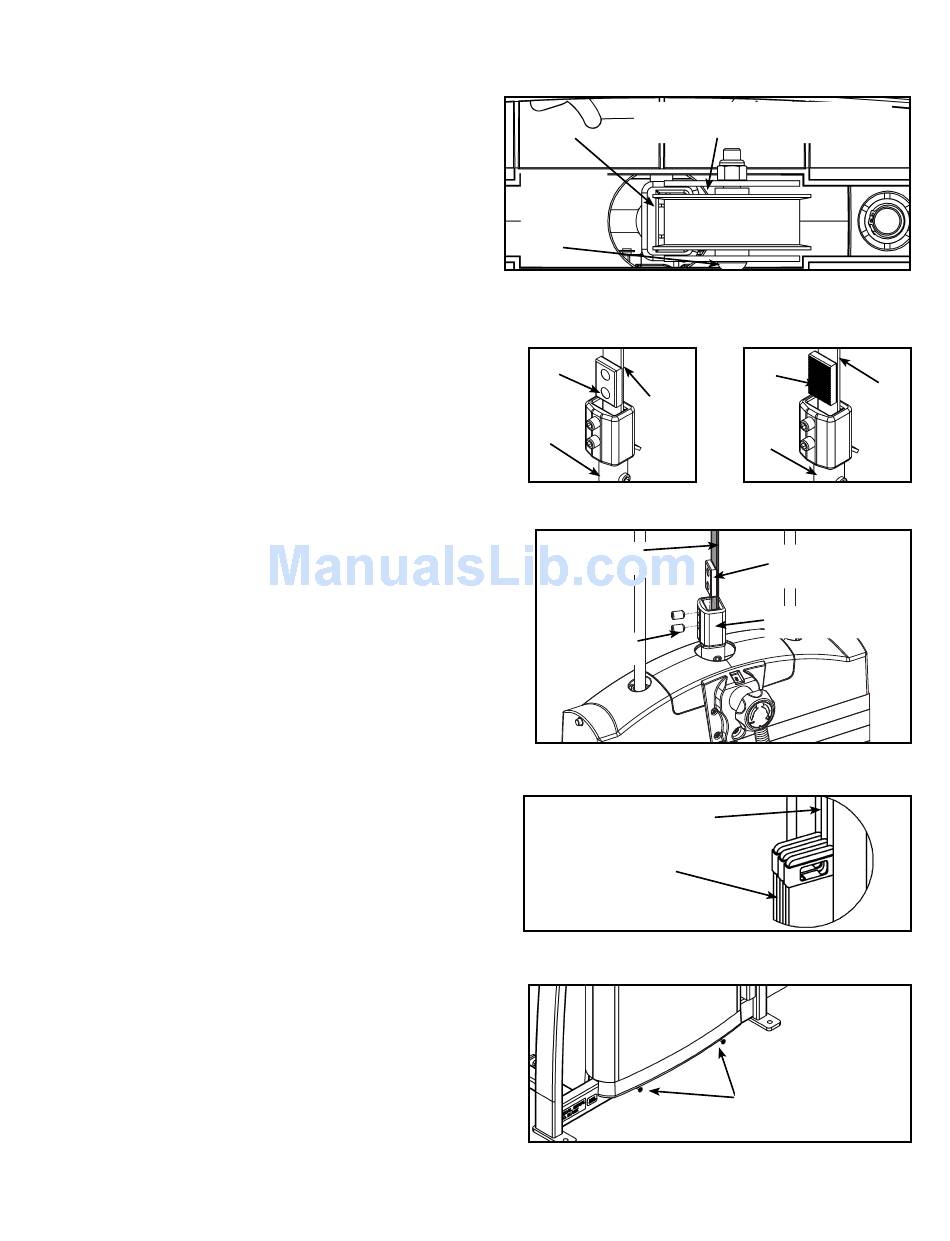

Figure 12 (top view from pulley down to belt clamp)
Correct belt routing
Insert
Belt
Stem
Figure 13A
Belt
Set screws
Figure 14
Grooves
Increment Weights
Figure 15
Figure 16
Top Pulley
Wrong belt routing
Insert
Belt
Stem
Figure 13B
Belt clamp
insert
Belt clamp
Screw
Assembly
Page 4-5
