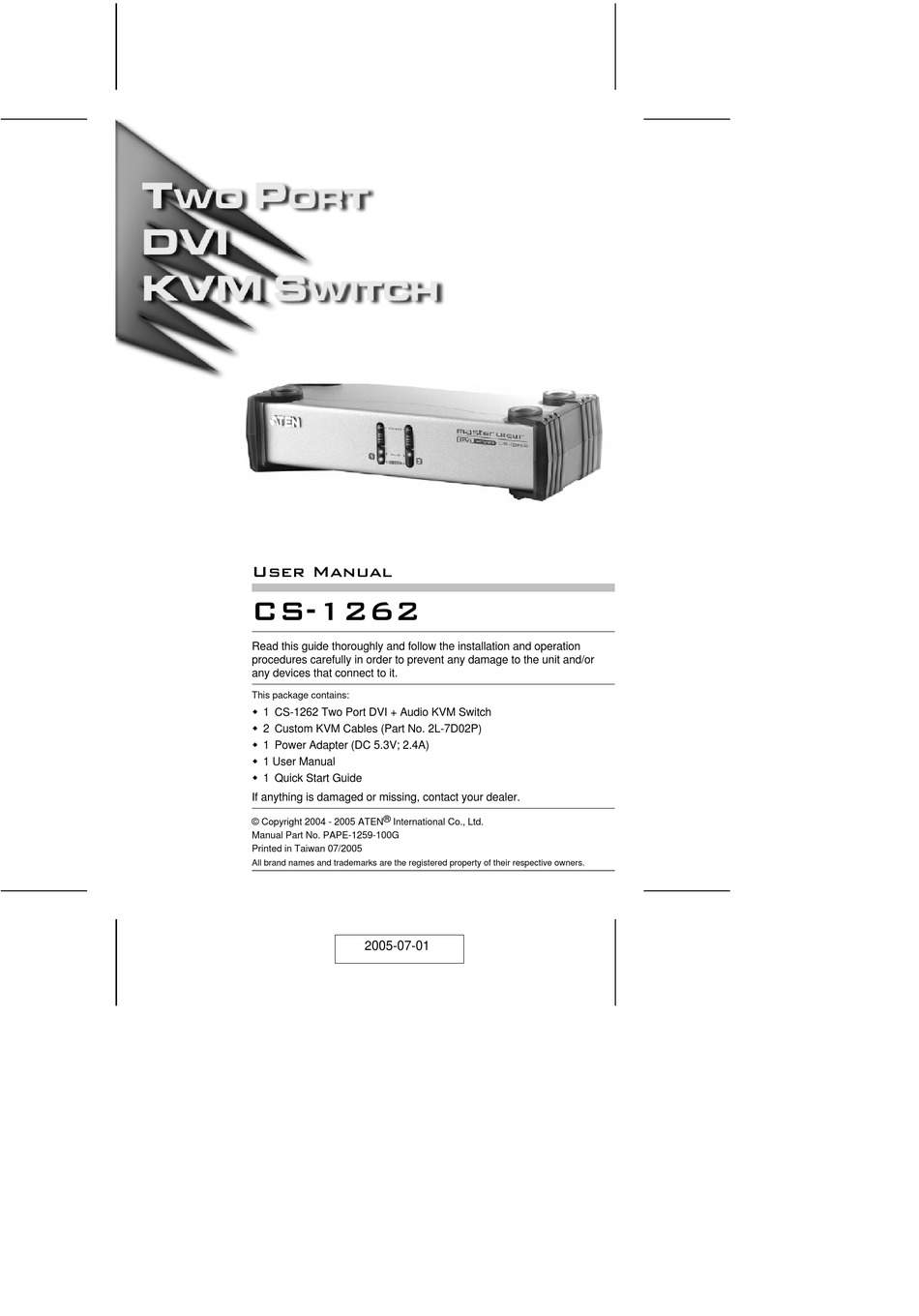

User Manual
User Manual
CS-1262
Read this guide thoroughly and follow the installation and operation
procedures carefully in order to prevent any damage to the unit and/or
any devices that connect to it.
This package contains:
M 1 CS-1262 Two Port DVI + Audio KVM Switch
M 2 Custom KVM Cables (Part No. 2L-7D02P)
M 1 Power Adapter (DC 5.3V; 2.4A)
M 1 User Manual
M 1 Quick Start Guide
If anything is damaged or missing, contact your dealer.
© Copyright 2004 - 2005 ATEN ® International Co., Ltd.
Manual Part No. PAPE-1259-100G
Printed in Taiwan 07/2005
All brand names and trademarks are the registered property of their respective owners.
2005-07-01
Advertisement
Table of Contents
Related Manuals for ATEN CS-1262
Summary of Contents for ATEN CS-1262
-
Page 1: User Manual
This package contains: M 1 CS-1262 Two Port DVI + Audio KVM Switch M 2 Custom KVM Cables (Part No. 2L-7D02P) M 1 Power Adapter (DC 5.3V; 2.4A) - Page 2 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 Overview The Master View CS-1262 DVI KVM Switch improves on previous KVM Switch designs by incorporating DVI video and audio. Now, two computers can be accessed and controlled from a single PS/2 keyboard, DVI monitor, and PS/2 mouse console. DVI (Digital Visual Interface) supports both digital video input...
- Page 4 Features M One console controls two computers M DVI digital and analog monitor support - fully compliant with the DVI specification M Audio enabled M Easy to install - no software required - connecting cables to the computers is all it takes M Easy to operate - manual and hotkey computer selection - Auto Scan function to monitor computer operation M The KVM and audio focus can be switched together or...
-
Page 5: Hardware Requirements
Hardware Requirements Console M A DVI monitor M A PS/2 mouse M A PS/2 keyboard Computers The following equipment must be installed on each computer that is to be connected to the system: M A DVI video port M A 6-pin mini-DIN (PS/2 sytle) mouse port M A 6-pin mini-DIN (PS/2 sytle) keyboard port Cables Only CS Custom cable sets specifically designed to work with... -
Page 6: Front Panel
Front Panel 1&2 1. Port Selection Switches 2. Port LEDs The Port LEDs are built into the Port Selection Switches. The upper ones are the On Line LEDs; the lower ones are the Selected Port LEDs: M An On Line LEDs lights ORANGE to indicate that the computer attached to the corresponding port is up and running. -
Page 7: Rear Panel
Rear Panel 1. Console Port Section The cables from your keyboard, monitor, mouse, microphone, and speakers plug in here. Each port is color coded and marked with an appropriate icon. 2. CPU Port Section The cables that link the switch to your computers plug in here. -
Page 8: Installation
Make sure that all devices you will be connecting up are properly grounded. Cable Connection To set up your Master View CS-1262 installation, refer to the installation diagram on the following page (the numbers in the diagrams correspond to the steps, below), and do the following: 1. - Page 9 - 7 - 2005-07-01...
-
Page 10: Operation
Operation Hot Plugging The CS-1262 supports hot plugging - components can be removed and added back into the installation by unplugging and replugging their cables without the need to shut the unit down. Powering Off and Restarting If it becomes necessary to Power Off the Master View unit, before starting it back up you must do the following: 1. -
Page 11: Port Switching
Port Switching There are two convenient methods to switch the KVM and Audio focus between the computers: Manual - which involves pressing the pushbutton port selection switches located on the unit’s front panel; and Hotkey - which involves entering combinations from the keyboard. Manual: Press the Port Selection switches as follows: M Press a switch for longer than two seconds to bring the KVM... - Page 12 Auto Scanning The CS-1262’s Auto Scan feature automatically switches the KVM focus between the two computer ports at regular intervals. This allows you to monitor the computer activity without having to take the trouble of switching from port to port manually. See the table below for details.
-
Page 13: Hotkey Summary Table
Hotkey Summary Table Hotkey Action [Scroll Lock] [Scroll Lock] Switches the KVM and audio focus from the port [Enter] that currently has the KVM focus to the other port (1 to 2; 2 to 1). Note that the KVM and audio focus both go to this port even if they were on different ports to begin with. -
Page 14: Dvi Pin Assignments
Appendix DVI Pin Assignments Signal Signal TMDS Data2- Hot Plug Detect TMDS Data2+ TMDS Data0- TMDS Data0+ N.C. N.C. N.C. DDC Clock N.C. DDC Data TMDS Clock Shield Analog Vertical Sync. TMDS Clock+ TMDS Data1- TMDS Clock- TMDS Data1+ Analog Red Analog Green N.C. -
Page 15: Specifications
Specifications Function Specification CPU Ports Port Selection Push button switches; Hotkeys Console Keyboard 1 x 6 pin mini-DIN F Connectors Mouse 1 x 6 pin mini-DIN F Video 1 x DVI-I F Speakers 1 x Earphone jack Microphone 1 x Microphone jack CPU Port Keyboard 2 x 6 pin mini-DIN F... -
Page 16: Limited Warranty
Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR’S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and specially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
