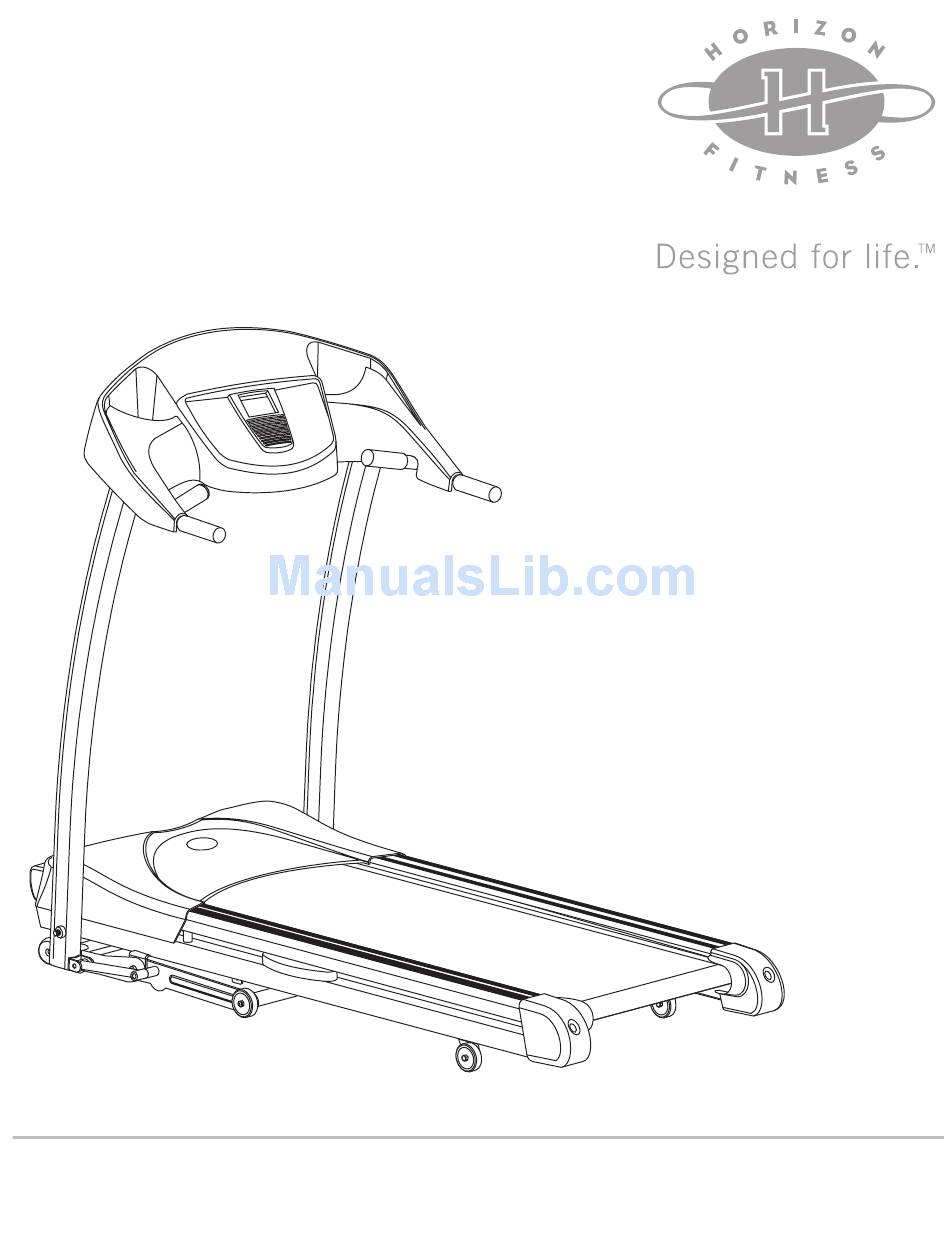

- Page 1 LIMITED SERIES T 605 T 805 Treadmill User’s Guide...
-
Page 2: Table Of Contents
TREADMILL OPERATION ........ -
Page 3: Important Precautions
Read all instructions before using this treadmill. When using an electrical product, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions. - Page 4 • At no time should more than one person be on treadmill while in operation. • Keep children under the age of 12 and pets at least 10 feet away from the treadmill at all times. • The treadmills should not be used by persons weighing more than 250 pounds (T 605) & 275 pounds (T 805).
-
Page 5: Assembly
There should be no side-to-side play in the console masts or any forward and back play in the console assembly or handlebars. If there is any play in these areas, the treadmill has not been prop- erly assembled. To prevent damage to the treadmill, the assembly instructions must be reviewed and corrective actions should be taken. - Page 6 • 5mm Allen Wrench/Phillips Screw Driver • 8mm Allen Wrench or 6mm Allen Wrench PARTS • 1 Safety Key • 1 Console Assembly (located under treadmill deck) • 1 Power Cord • 1 Hardware Pack (contents listed) 45mm Bolt (A) Qty: 2 If you have questions, or if there are any missing parts, we will guarantee complete satisfaction.
-
Page 7: Assembly Step
4. Cut and remove the banding strap. Assembly Step 2 1. Lift the running deck until lock latch is fully engauged. 2. Remove console assembly from treadmill car- ton and place out of the way. 3. Lower the treadmill running deck from the folded position. - Page 8 Assembly Step 3 Assembly Step 4 FINISH 1. Place console assembly into its correct position. 2. Place Lock Washer (E) and bolt (D) into left upright support and tighten. 3. Place Arc Washer (F) and bolt (D) into left upright support and tighten. 4.
-
Page 9: Before You Begin
DO NOT STAND ON THE BELT While you are preparing to use the treadmill, do not stand on the belt. Place your feet on the side rails before starting the treadmill. Start walking on the belt only after the belt has begun to move. Never start the treadmill at a fast running speed and attempt to jump on! on choosing your treadmill. - Page 10 SAFETY KEY Your treadmill will not start unless the safety key is placed in position. Attach the clip end securely to your clothing. This safety key is designed to cut the power to the treadmill if you should fall. NEVER USE THE TREADMILL WITHOUT SECURING THE SAFETY KEY CLIP TO YOUR CLOTHING.
- Page 11 To eliminate this slipping, turn the treadmill off and tension both the rear roller bolts with the appropriate size allen wrench, turning it 1/4 TURN to the right as shown. Turn the treadmill on and check for slipping. Repeat if necessary, but NEVER TURN the roller bolts more than 1/4 turn at a time.
- Page 12 Note: There is a thin protective sheet of clear plastic on the overlay of the console and should be removed. A. MONITOR DISPLAY: Speed, Time, Pulse, Distance, Incline, Calories and Program Profiles. B. STOP: Press to pause/end your workout. Hold for 3 seconds to reset the treadmill. C. START: Simply press to begin exercising or starts your program.
- Page 13 MONITOR DISPLAY SPEED Indicates how fast your walking or running surface is moving. TIME Shown as Minutes:Seconds. View the time remaining or the time elapsed in your workout. PULSE Shown as Beats Per Minute. Used to monior your heart rate (displayed when contact is made with both pulse grips or wireless chest is used - included with select models only).
- Page 14 PROGRAMMING QUICK START UP Simply press the START key to begin working out. SELECT A PROGRAM Select a PROGRAM using the SPEED keys. Once a PROGRAM has been chosen, press SELECT. SELECT A LEVEL Select a PROGRAM LEVEL using the SPEED keys. Once a PROGRAM LEVEL has been chosen, press SELECT.
- Page 15 WEIGHT LOSS - Challenges with various combinations of hills and valleys. Time-based goal with 10 difficulty levels to choose from (T 605 & T 805 models). Elevation Level 1 Speed Elevation Level 2 Speed Elevation Level 3 Speed Elevation Level 4 Speed Elevation Level 5...
- Page 16 RACE (T805 model only) Challenge the computer to a Race, customize pace speed and distance. Program is designed to add motivation to a workout by allowing you to complete against a selected pacer. 1. Once the RACE PROGRAM has been chosen, press SELECT. 2.
- Page 17 USER 1 (T805 model only) Lets you create and reuse a perfect workout for you with specific speed, incline and time combination. The ultimate in personal programming. Time-based goal. 1. Once the USER 1 program has been chosen, press SELECT. 2.
-
Page 18: Troubleshooting
WHEN SHOULD I BE WORRIED ABOUT A NOISE? As long as the sounds your treadmill makes are no louder that a normal conversational tone of voice, it is considered normal noise. - Page 19 TROUBLESHOOTING - TREADMILLS PROBLEM: The running belt does not stay centered during a workout. SOLUTION: Verify that the treadmill is on a level surface. Verify that the belt is properly tightened and centered (Refer to the ADJUSTMENT section) TROUBLESHOOTING - HEART RATE Check your exercise environment for sources of interference such as fluorescent lights, computers, or appliances containing large motors.
- Page 20 • Inspect the power cord. If the power cord is damaged, contact Horizon Fitness. • Make sure the power cord is not underneath the treadmill or in any other area where it can become pinched or cut.
-
Page 21: Conditioning Guidelines
HOW HARD? How hard you workout is also determined by your goals. If you use your treadmill to prepare for a 5K run, you will probably work out at a higher intensity than if your goal is general fitness. Regardless of your long term goals, always begin an exercise program at low intensity. - Page 22 TARGET ZONE HEART RATE CHART Your Target Zone is a percentage of your maximum heart rate. Target Zone will vary for each individual, depending on age, current level of conditioning, and personal fitness goals. The American Heart Association recommends working-out at a Target Heart Rate Zone of between 60% and 75% of your maximum heart rate.
- Page 23 DEVELOPING A FITNESS PROGRAM STRETCH FIRST Before using your product, it is best to take a few minutes doing a few gentle stretching exercises. Stretching prior to exercise will improve flexibility and reduce chances of exercise related injury. Ease into each of these stretches with a slow gentle motion. Do not stretch to the point of pain. Make sure not to bounce while doing these stretches.
- Page 24 An important step in developing a long term fitness program is to determine your goals. Is your primary goal for exercising on your treadmill to lose weight? Improve muscle? Burn stress? Prepare for the spring racing schedule? Knowing what your goals are will help you develop a more successful exercise program.
- Page 25 Weekly Log Sheets...
- Page 26 Weekly Log Sheets...
- Page 27 Monthly Log Sheets...
- Page 28 Monthly Log Sheets...
-
Page 29: Limited Warranty
LABOR • 1 YEAR Horizon Fitness shall cover the labor cost for the repair of the device for a period of one year from the date of the original purchase, so long as the device remains in the possession of the original owner. - Page 30 HORIZON FITNESS 800 BURTON BOULEVARD DEFOREST, WISCONSIN 53532 phone 1.888.993.3199 FAX 1.608.842.1660 www.horizonfitness.com Limited-Series. Rev. 1.2...
