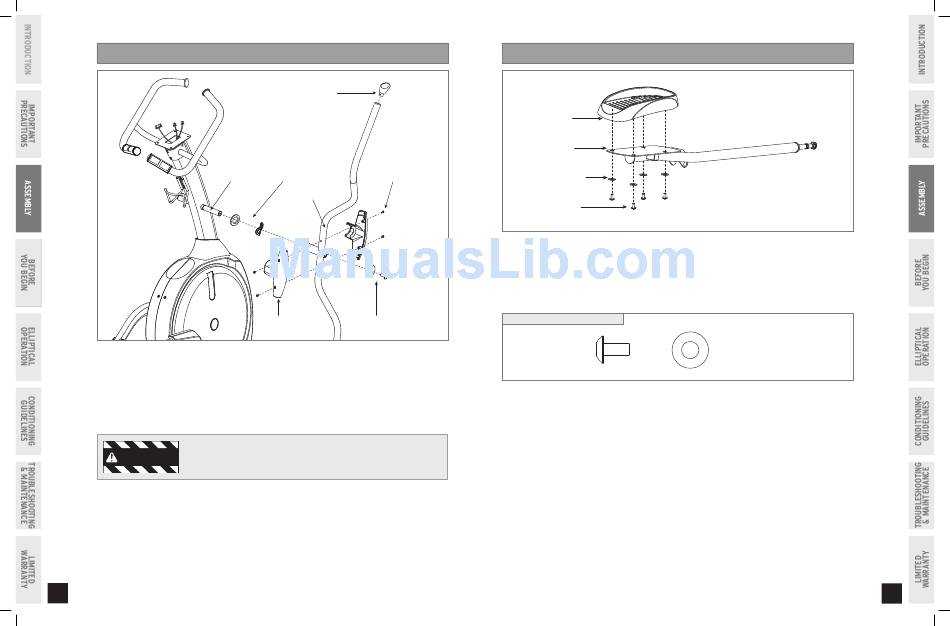

ASSEM BLY ST eP
NOTe: There is NO hardware bag for this step. All hardware is pre-installed.
A Remove Pre-ATTACHeD BOLT & WASHer from CONSOLe mAST.
B Slide riGHT HANDLeBAr onto CONSOLe mAST and attach by re-inserting Pre-ATTACHeD WASHer &
BOLT.
C Remove Pre-ATTACHeD SCreWS from riGHT HANDLeBAr.
After handlebars are assembled they will rotate freely – be cautious. Until
WARNING
the machine is fully assembled, do not grab the handlebars for support.
D Attach HANDLeBAr COVerS with Pre-ATTACHeD SCreWS.
e Slide HANDLeBAr CAP onto top of riGHT HANDLeBAr with the slanted side facing the rear of the
elliptical (as shown).
F Repeat on other side.
12
E1201_Rev.1.4.indd 12-13
HANDLEBAR CAP
CONSOLE MAST PRE-ATTACHED WASHERS PRE-ATTACHED SCREWS
RIGHT HANDLEBAR
HANDLEBAR COVER PRE-ATTACHED WASHER & BOLT
ASSEMBLY STeP
FOOTPAD
LINK ARM
WASHERS (G)
SCREWS (F)
A Open HArDWAre BAG FOr STeP .
B Attach FOOTPAD to LiNK Arm using 4 SCreWS (F) and 4 WASHerS (G).
C Repeat on other side.
HArDWAre BAG FOr STeP  CONTeNTS :
SCREW (F)
16 mm
Qty: 8
WASHER (G)
18 mm
Qty: 8
