Summary of Contents for Hoover SAVVY Turbo POWER Upright Vacuum Cleaner

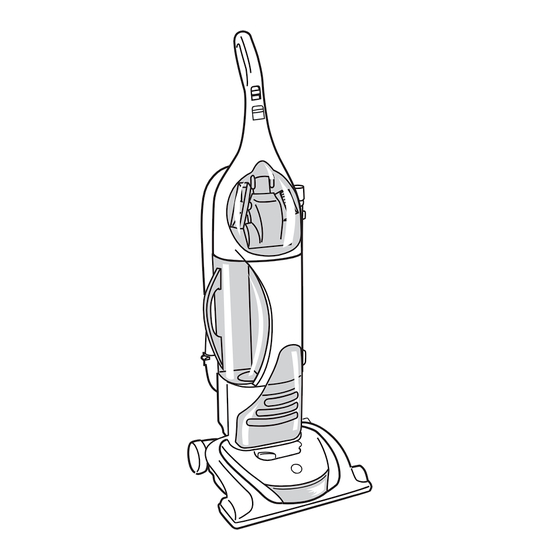

- Page 1 TurboPOWER Upright Vacuum Cleaner HOOVER Thank you for your purchase! This product was designed for easy assembly (see page 3) Owner’s Manual ENGLISH pp.1-13 ESPAÑOL pág. 14-21 FRANÇAIS p. 23-30 ®...
-
Page 2: Table Of Contents
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a Hoover Sales and Service Center or Authorized Hoover Warranty Service Dealer (Depot). -
Page 3: Carton Contents
If you need any assistance: Visit our website at www.hoover.com. Click on the “Service” button to find the service outlet nearest you OR Call 1-800-944-9200 for an automated referral of service outlet locations (U.S. only) Call 1-330-499-9499 to speak with a representative in our Consumer Response Center. -
Page 4: Cleaner Descriptions
Push screws into holes on back of handle (Fig. 1-6) and hose holder (Fig. 1-7). Tighten screws securely with a Phillips screwdriver. 2. How to use Cleaner description Polarized plug To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). - Page 5 Transporting cleaner Put handle in upright position. Tilt clean- er back on rear wheels. Push forward. Carpet height adjustment The cleaning of carpet and rugs takes place at the nozzle (A). When it is necessary to raise and lower the nozzle for various carpet pile heights, turn the nozzle control knob (B) to the desired setting.
-
Page 6: Cleaning Tools
Cleaning tools When using cleaning tools, cleaner han- dle should be in the upright position to activate the automatic “brush roll automatic shut off” and for conve- nience in moving the cleaner from one area to another. Turn cleaner OFF before disconnect- ing and connecting hose to hose tube (A). -
Page 7: Dirt Cup
2-14 How to attach tool cover The tool cover is designed with a “break- away” feature which allows it to snap free if it is pushed open too far. To reattach, align hinges of cover with slots on sides of tool storage area. Push cover down to secure in place. -
Page 8: Headlight Replacement
Align grooves (A) on pre-filter frame with grooves (B) in dirt cup. Headlight replacement What to buy This cleaner uses a 12 volt, wedge base type 912 bulb, HOOVER part No. 27313107. 3-13 Disconnect cleaner from electrical outlet. Step on handle release pedal and place cleaner in the lowest position. -
Page 9: When To Replace
3-14 Turn cleaner over. Remove HOOVER® emblem (B). Using a Phillips screwdriv- er, remove the screw (C), located under- neath the emblem. 3-17 Replace hood - Reposition hood, fit- ting tabs (A) on either side under the lens cover as shown. Replace screw and HOOVER®... -
Page 10: Belt Replacement
Align the belt directly over the grooves on the agitator. Belt replacement The belt on your Hoover cleaner causes the brush roll to rotate and is important for the effective operation of your cleaner. The brush roll belt is designed to last a long time and does not normally need replacement. -
Page 11: Replace Belt
Turn agitator, to make sure it rotates freely. Replace and tighten screws. Replace belt When replacing belt, ask for HOOVER part No. 38528037. 1. Remove bottom plate, belt guard and brush roll as described in Figs. 3-27 through 3-29. -
Page 12: Lubrication
Lubrication The cleaner is equipped with bearings that contain sufficient lubrication for the life of the cleaner. The addition of lubri- cant could cause damage. Therefore, do not add lubricant to any bearings. Thermal protector An internal thermal protector has been designed into your cleaner to protect it from overheating. -
Page 13: Clearing Blockages
• calling 1-800-944-9200 for an automated referral of authorized service outlet locations (U.S. only). Do not send your cleaner to The Hoover Company in North Canton for service, this will only result in delay. If further assistance is needed, contact The Hoover Consumer Response Center, Phone: 330-499-9499.
