T7100D,E,F MICROELECTRONIC COMMERCIAL THERMOSTATS AND Q7100A,C,D SUBBASES
WIRES
THROUGH WALL
WALL
ANCHORS
(2)
LEDS

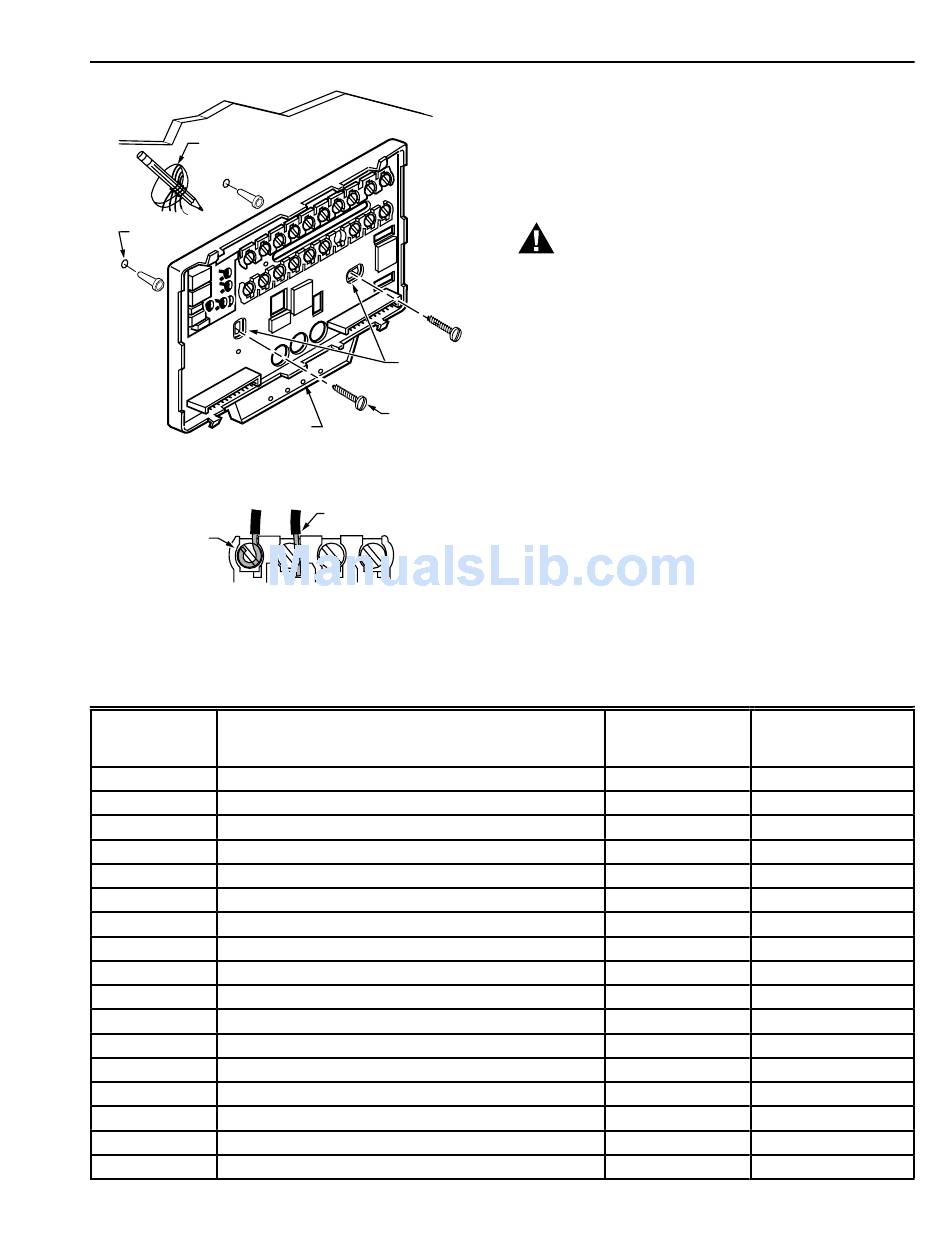

Fig. 8. Mounting the subbase.
FOR WRAPAROUND
INSERTION STRIP
7/16 IN. (11 MM).
Fig. 9. Proper wiring technique.
Standard
Terminal
Designations
B
Heating changeover valve or damper
D, D
Remote setback timer
E
Emergency heat relay
G
Fan relay
O
Cooling changeover valve
R
24V system transformer
RC
24V cooling transformer
RH
24V heating transformer
T, T
Remote temperature sensor
W
Heating relay or valve coil
W1
Stage 1 heating relay
W2
Stage 2 heating relay or auxiliary heat relay
W3
Auxiliary heat relay
X
Common
X1, X2, X3, X4
User-defined Light Emitting Diodes (LED)
Y, Y1
Compressor contactor 1
Y2
Compressor contactor 2
WALL
MOUNTING
HOLES
MOUNTING
SCREWS
M6531
FOR STRAIGHT INSERTION
STRIP 5/16 IN. (8 MM).
M4826
Table 4. Terminal Designations and Descriptions.
Typical Connection
5

WIRING

All wiring must comply with local electrical codes and
ordinances. Follow equipment manufacturer wiring
instructions when available. Refer to Fig. 16 through 21 for
typical hookups. A letter code is located near each terminal
for identification. Refer to Table 4 for terminal designations.
WARNING
Electrical Shock Hazard.
Power Supply can cause electrical shock.
Disconnect power supply before beginning
installation.
1. Loosen the terminal screws on the back of the
thermostat and connect the system wires. See Fig. 9.
IMPORTANT
Use 18 gauge, color-coded thermostat cable for
proper wiring.
2. Securely tighten each terminal screw.
3. Push excess wire back into the hole.
4. Plug the hole with nonflammable insulation to prevent
drafts from affecting the thermostat.
Function
Output
Input
Output
Output
Output
Input
Input
Input
Input
Output
Output
Output
Output
Input
Annunciation
Output
Output
Terminal Type
24V powered contact
Dry contact
24V powered contact
24V powered contact
24V powered contact
24V powered contact
24V powered contact
24V powered contact
24V powered contact
24V powered contact
24V powered contact
68-0163—3
