Install The Mounting Plate - Honeywell MAGICSTAT CT3300 Installation And Programming Instructions

Weekday/weekend (5-day/2-day) programmable heat and/or cool low voltage (20 to 30 vac) thermostat and mounting plate
Hide thumbs

Advertisement

Table of Contents

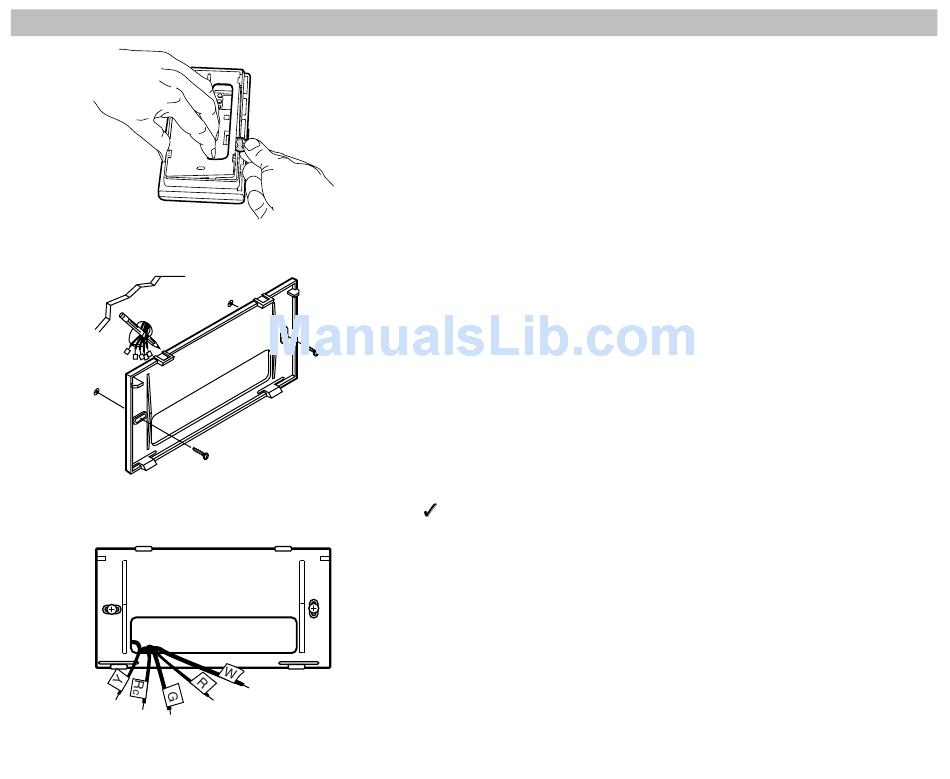

Step 3. Install the mounting plate
Fig. 5
Fig. 6
Fig. 7
69-0654-5
a.
Separate the mounting plate from the thermostat using a coin,
as shown in Fig 5.
b.
Position the mounting plate on the wall. Be sure the mounting
plate sits flush against the wall and none of the wires are
trapped behind it.
c.
Level the mounting plate and use a pencil to mark the center of
the mounting plate's screw holes.
M20139
d.
Remove the mounting plate and drill holes at the locations you
marked.
•
•
e.
If installing in drywall, gently tap the anchors that were provided
into the drilled holes until they are flush with the wall.
f.
Reposition the mounting plate over the holes, pull the wires
through the wiring opening, and loosely insert the mounting
screws into each of the drilled holes or anchors (Fig. 6).
g.
Make sure the mounting plate is level and tighten the mounting
screws.
M20129
Check your progress
The mounting plate is now mounted on the wall and should look like
Fig. 7.
M20128
For drywall, drill two 3/16 inch holes.
For plaster or wood, drill two 7/32 inch holes.
5
INSTALLATION
