Scosche MAGICMOUNT PRO, MPWD2 - Magnetic Dash Mount Manual

CONTENTS/FEATURES

CONTENTS/FEATURES - Part 1
CONTENTS/FEATURES - Part 2

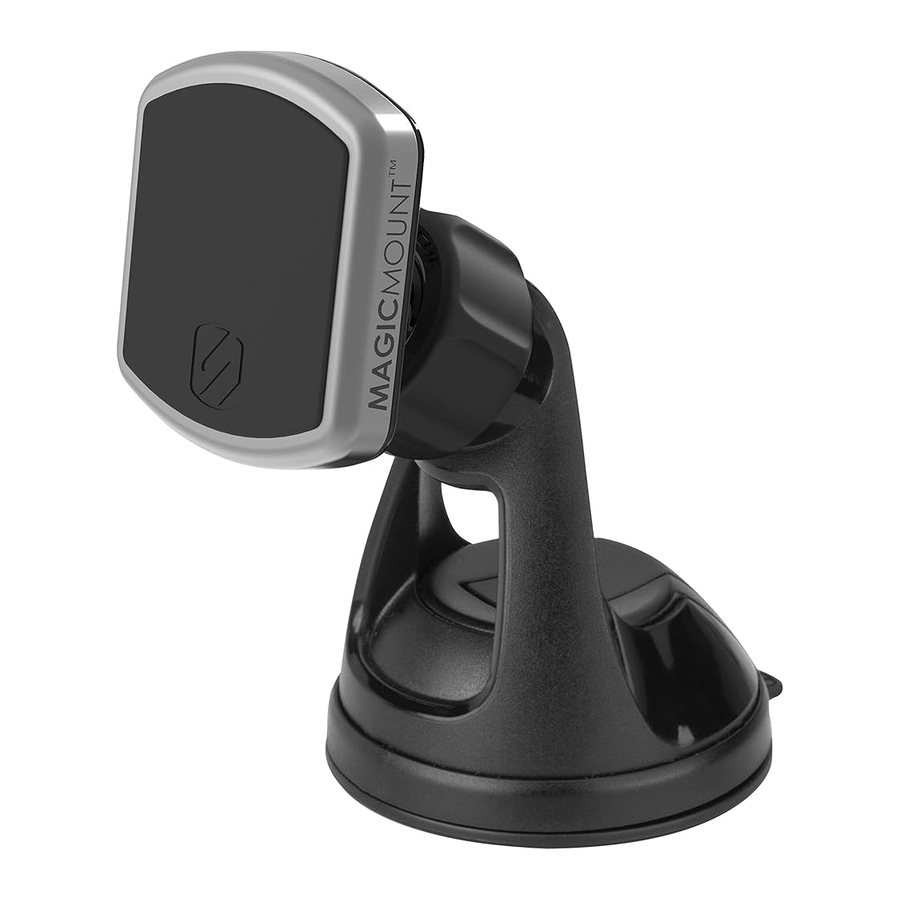

  1. MAGICMOUNT PRO Magnetic Mount


This magnetic mount is not a toy. The small magnets are harmful if swallowed. Keep away from children.

  1. Interchangeable Trim Rings (2)
  2. Suction Cup Mount
  3. MAGICPLATE Round Metal Plate Compatible with PopSockets Grip
  4. MAGICPLATE Large Metal Plate
  5. Protective Film Sticker
  6. Cleaning Wipe

MAGICPLATE INSTALLATION

  1. OPTION 1
    Remove the backing from the protective film for the selected plate (large or round) as shown on the removal tabs, and place on the device (A). Note: The protective film must be used when applying MAGICPLATE directly to the back of your device. Only use the film if mounting the plate directly to the device.
    Remove the adhesive backing from the metal plate and attach the plate to the protective film on the device (B).
  2. OPTION 2
    Attach adhesive side of selected metal plate directly to back of case.
  3. OPTION 3
    Attach adhesive side of selected metal plate to interior of case, between device and inside of case. Plate will adhere to magnetic mount through rear panel of case.
    NOTE: If choosing not to attach the metal plate to the device or case, please leave the adhesive backing in place. Position the plate between the device and interior of case with the metal surface facing the case.

POPSOCKETS*
*sold separately

  1. Extend the grip (A) and remove the cap (B).
  2. Attach adhesive side of metal plate directly to inside of cap (C), and replace the cap (D).
    Note: The metal plate may also be placed on the outside of the cap.

DASH/WINDOW MOUNT

NOTE: STICKGRIP suction cup may leave residue or discoloration on some surfaces. It may also leave a ring of residue when mounted to the dash.

  1. Clean the dash surface with supplied cleaning wipe.
    Note: Wipe may cause discoloration of certain plastics, vinyls and painted surfaces. It is recommended to test in an inconspicuous area first.
  2. Peel the wrapping from the bottom of the suction cup base (A), and place in position (B). Press down on the lever to lock the mount in place (C).
    USING THE DASH/WINDOW MOUNT
  3. Loosen, then re-tighten the ball joint to adjust for optimum viewing angle.

For complete warranty details, please visit us at www.scosche.com or call (800) 363-4490

MAGICPLATE REMOVAL

Use a thin plastic card to carefully lift the plates adhesive surface from the mounting surface. Slowly lift up and remove the plate. Do not use any heat or liquids to remove the plate, due to risk of damag ing your phone. Contact Scosche Customer Service for any additional assistance at 800.363.4490 Ext. 1 or customerservice@scosche.com.

WARNINGS

READ INSTRUCTIONS COMPLETELY BEFORE INSTALLING THIS MOUNT KIT.


Do not use the magnetic mount with any hard-drive based devices such as: iPod classic, iPod video and Zune MP3 players. Use caution whenever removing or handling plastic parts of any vehicle. Unnecessary force or pressure can cause pieces to crack or break. Please use a plastic card to remove the metal plates. Remove adhesive residue with a non-abrasive cleaner.


AIRBAG WARNING: Do not place this pad. or any other object, on or near the airbag. In the event of deployment, objects placed on or near airbag could cause serious injury.

NOTICE TO DRIVERS: Please check your local and state vehicle codes regarding cell phone, GPS or portable device mounting laws and restrictions. Alternative Scosche mounting products are available, if windshield/dash mounting is prohibited in your state or locale. Scosche does not take any responsibility for any fines, penalties, or damages that may be incurred as a result of disregarding this notice.

Questions?
Need help with your Product?
Call Customer Service at:
(800} 363-4490 x1

Register your product online at
www.scosche.com/register
