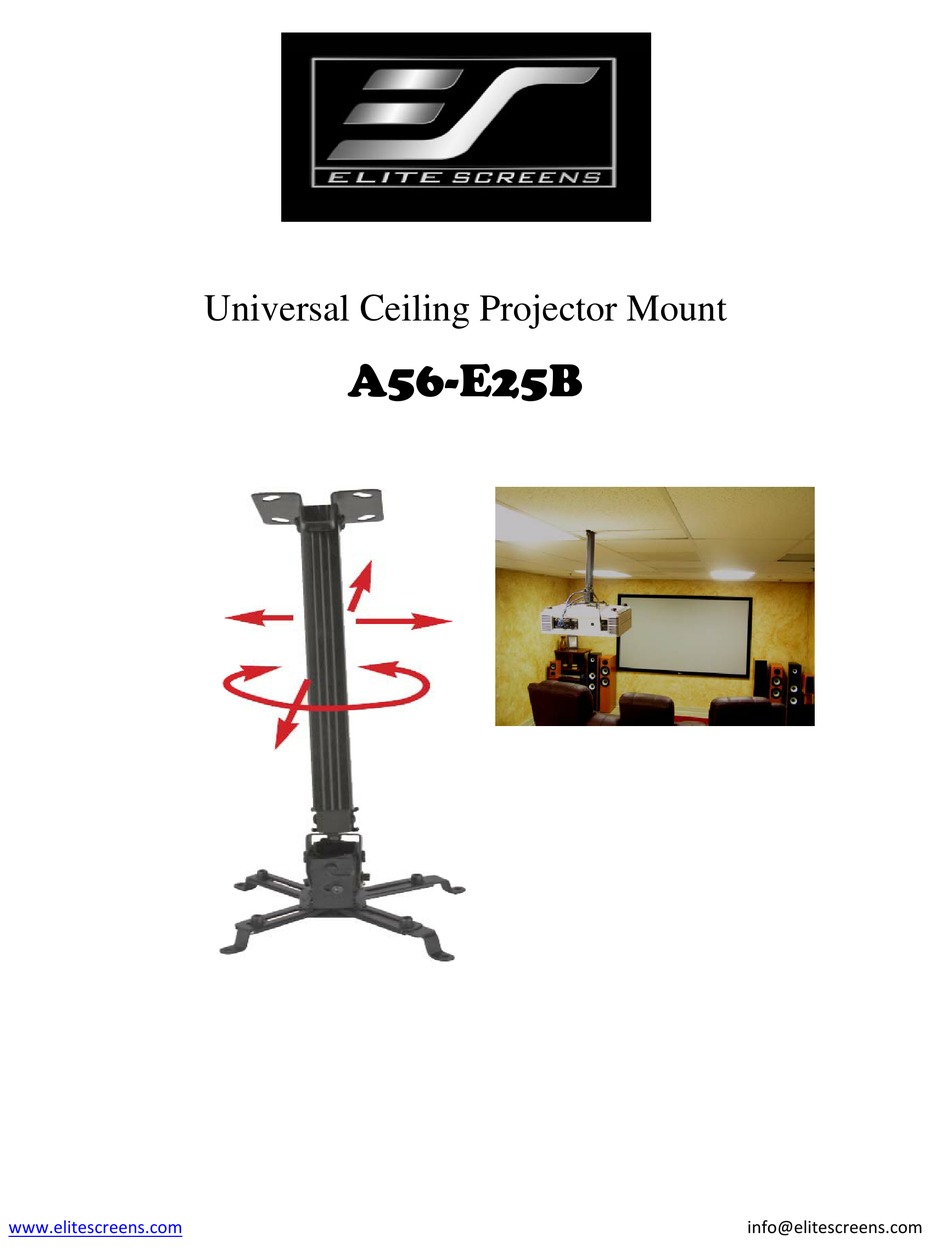

- Page 1 Un n iversa al Ceilin ng Proj jector M Mount 6-E25 w.elitescreens s .com info@elite e screens.com...

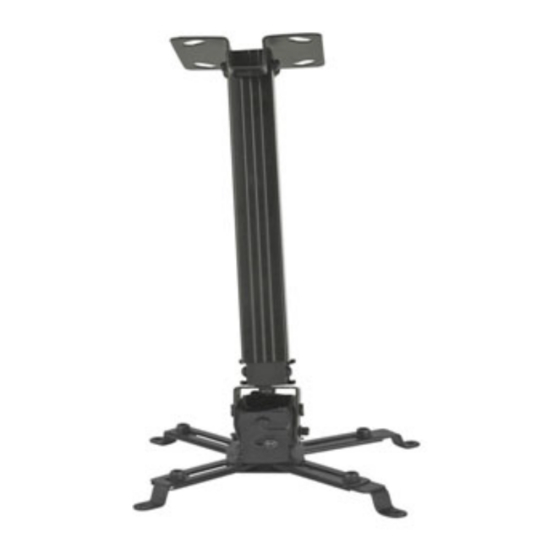

- Page 2 The A56‐E25B Projector mount is 90% compatible with most projector designs. It is easy to use for ceiling projector installations. It includes standard screw hardware for the projector. It can be adjusted in both length and height to optimize the right level of projection. The extension bar can also be removed for low ceiling installation, please see example #1. Example of A56‐E25B with Example of A56‐E25B with out extension bar for a extension bar for high or flush mount to the ceiling. angled ceilings. www.elitescreens.com info@elitescreens.com ...
- Page 3 #1 Flush Mount assembly By removing the upper and lower extension you M5 x 12 Hex screws can flush the projector to the ceiling. This M5 x 12 Hex screws installation is designed to bring the projector closer to the ceiling to accommodate room size. M5 Washer The extension does not necessarily have to be removed for the projector to be mounted. The M5 x 12 Hex screws design of this particular mount has the ability to M5 x 12 Hex screws be extended or flushed closer to the ceiling. The ...
- Page 4 #2 Mount assembly with extension bar M6 Anchors (4 nos.) Projector a M5 Washer outlet b M5 x 12 Hex screws Ceiling plate Adjustable Upper drop height up Extension can be to 23” ¾ extension removed for low ceiling. ...
