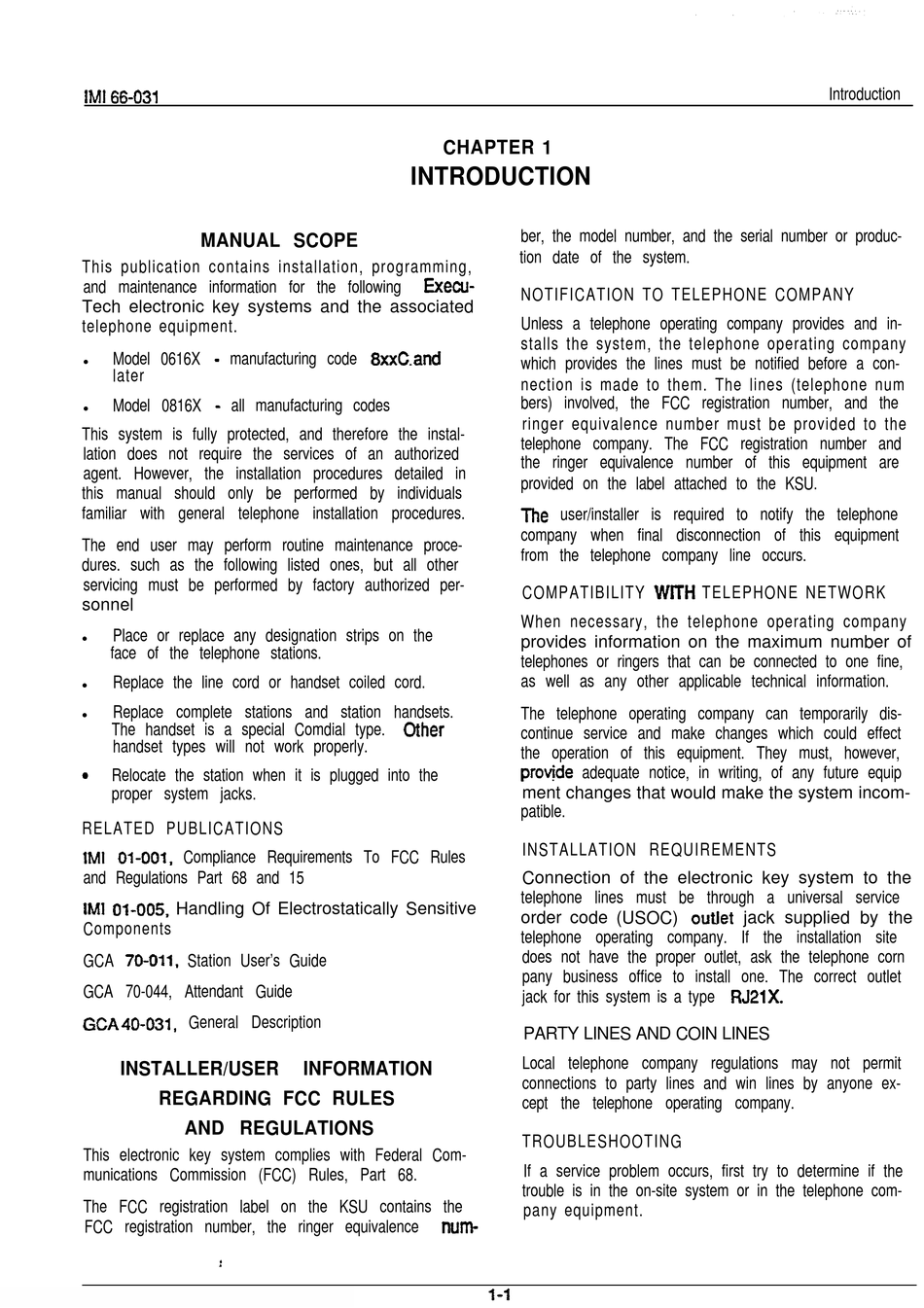

MANUAL SCOPE
This publication contains installation, programming,
and maintenance information for the following
Tech electronic key systems and the associated
telephone equipment.
Model 0616X - manufacturing code 8xxCand
l
later
Model 0816X - all manufacturing codes
l
This system is fully protected, and therefore the instal-
lation does not require the services of an authorized
agent. However, the installation procedures detailed in
this manual should only be performed by individuals
familiar with general telephone installation procedures.
The end user may perform routine maintenance proce-
dures. such as the following listed ones, but all other
servicing must be performed by factory authorized per-
sonnel
Place or replace any designation strips on the
l
face of the telephone stations.
Replace the line cord or handset coiled cord.
l
Replace complete stations and station handsets.
l
The handset is a special Comdial type. Other
handset types will not work properly.
Relocate the station when it is plugged into the
proper system jacks.
RELATED PUBLICATIONS
Compliance Requirements To FCC Rules
and Regulations Part 68 and 15
Components
GCA 70-011, Station User's Guide
GCA 70-044, Attendant Guide
General Description
INSTALLER/USER
REGARDING FCC RULES
AND REGULATIONS
This electronic key system complies with Federal Com-
munications Commission (FCC) Rules, Part 68.
The FCC registration label on the KSU contains the
FCC registration number, the ringer equivalence
CHAPTER 1
INTRODUCTION
INFORMATION
ber, the model number, and the serial number or produc-
tion date of the system.
NOTIFICATION TO TELEPHONE COMPANY
Unless a telephone operating company provides and in-
stalls the system, the telephone operating company
which provides the lines must be notified before a con-
nection is made to them. The lines (telephone num
bers) involved, the FCC registration number, and the
ringer equivalence number must be provided to the
telephone company. The FCC registration number and
the ringer equivalence number of this equipment are
provided on the label attached to the KSU.
company when final disconnection of this equipment
from the telephone company line occurs.
COMPATIBILITY WlTH TELEPHONE NETWORK
When necessary, the telephone operating company
provides information on the maximum number of
telephones or ringers that can be connected to one fine,
as well as any other applicable technical information.
The telephone operating company can temporarily dis-
continue service and make changes which could effect
the operation of this equipment. They must, however,
ment changes that would make the system incom-
patible.
INSTALLATION REQUIREMENTS
Connection of the electronic key system to the
telephone lines must be through a universal service
order code (USOC) outlet
telephone operating company. If the installation site
does not have the proper outlet, ask the telephone corn
pany business office to install one. The correct outlet
jack for this system is a type RJ21X.
PARTY LINES AND COIN LINES
Local telephone company regulations may not permit
connections to party lines and win lines by anyone ex-
cept the telephone operating company.
TROUBLESHOOTING
If a service problem occurs, first try to determine if the
trouble is in the on-site system or in the telephone com-
pany equipment.
Introduction
jack supplied by the
