Locating connectors and controls on the dock

The following illustration helps you locate the connectors and controls on the dock.

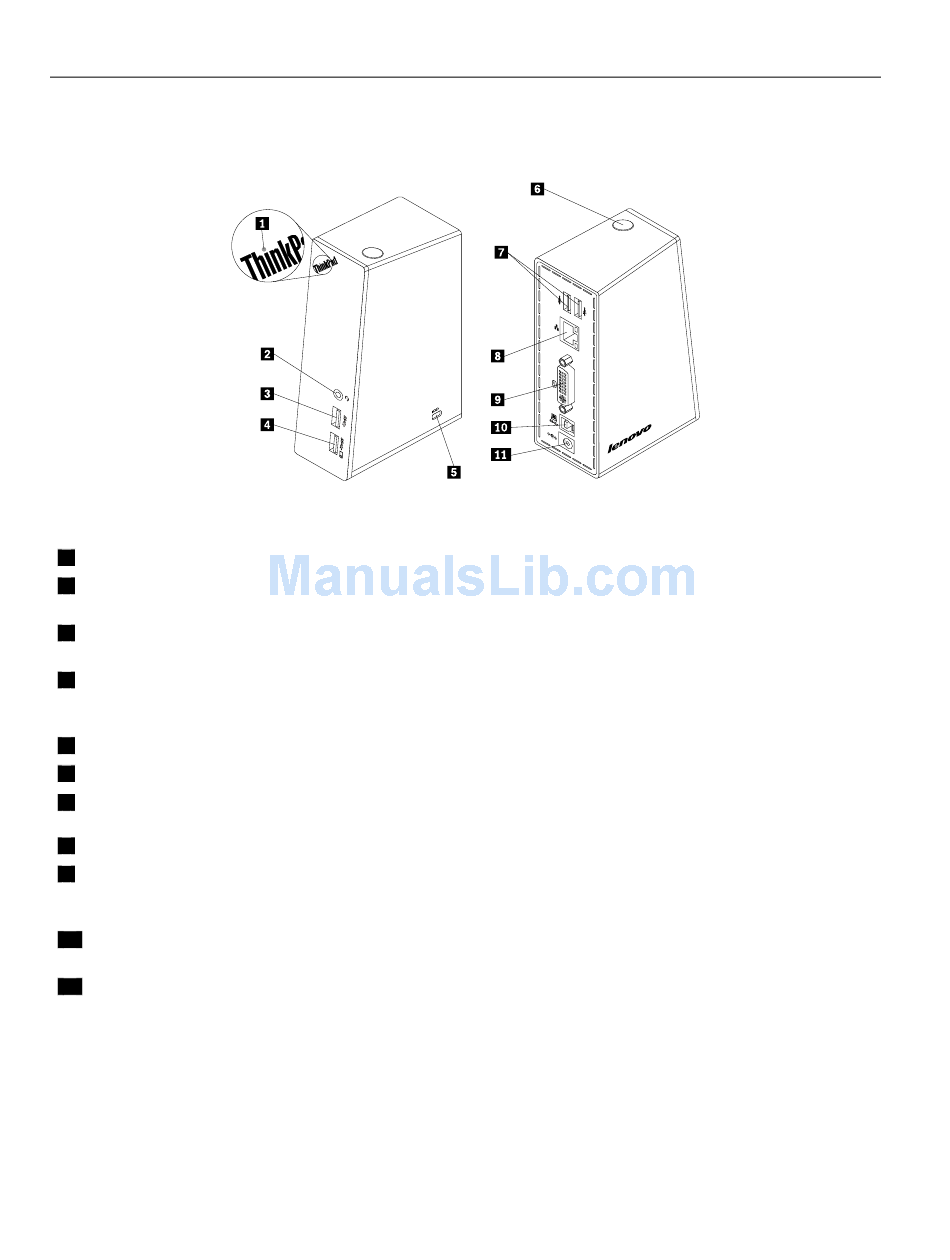

Figure 1. Overview of the dock
1
Power and connection indicator
2
Headset and microphone combo
connector
3
USB 3.0 connector
4
USB 3.0 connector with battery
charging function
5
Security-lock slot
6
Power button
7
USB 2.0 connector
8
Gigabit Ethernet connector
9
DVI-I video output connector
10
USB 3.0 upstream connector
11
Power connector
2
User Guide
Used to indicate whether the dock is turned on normally.
Used to connect a microphone, a headset, or a speaker.
Used to connect USB devices (USB 1.0, USB 1.1, USB 2.0, and USB 3.0
compatible).
Used to connect USB devices (USB 1.0, USB 1.1, USB 2.0, and USB 3.0
compatible). You also can use this connector to charge devices even when the
dock is disconnected from your notebook computer.
Used to secure the dock through a security cable lock.
Used to turn on or turn off the dock.
Used to connect USB devices (USB 1.0, USB 1.1, and USB 2.0 compatible).
Used to connect a local area network (LAN) cable.
Used to connect an external monitor with a DVI cable. You also can connect
a DVI-I to VGA adapter to the DVI-I video output connector, and connect the
external monitor with a VGA cable to the DVI-I to VGA adapter.
Used to connect a notebook computer.
Used to connect the power adapter.
