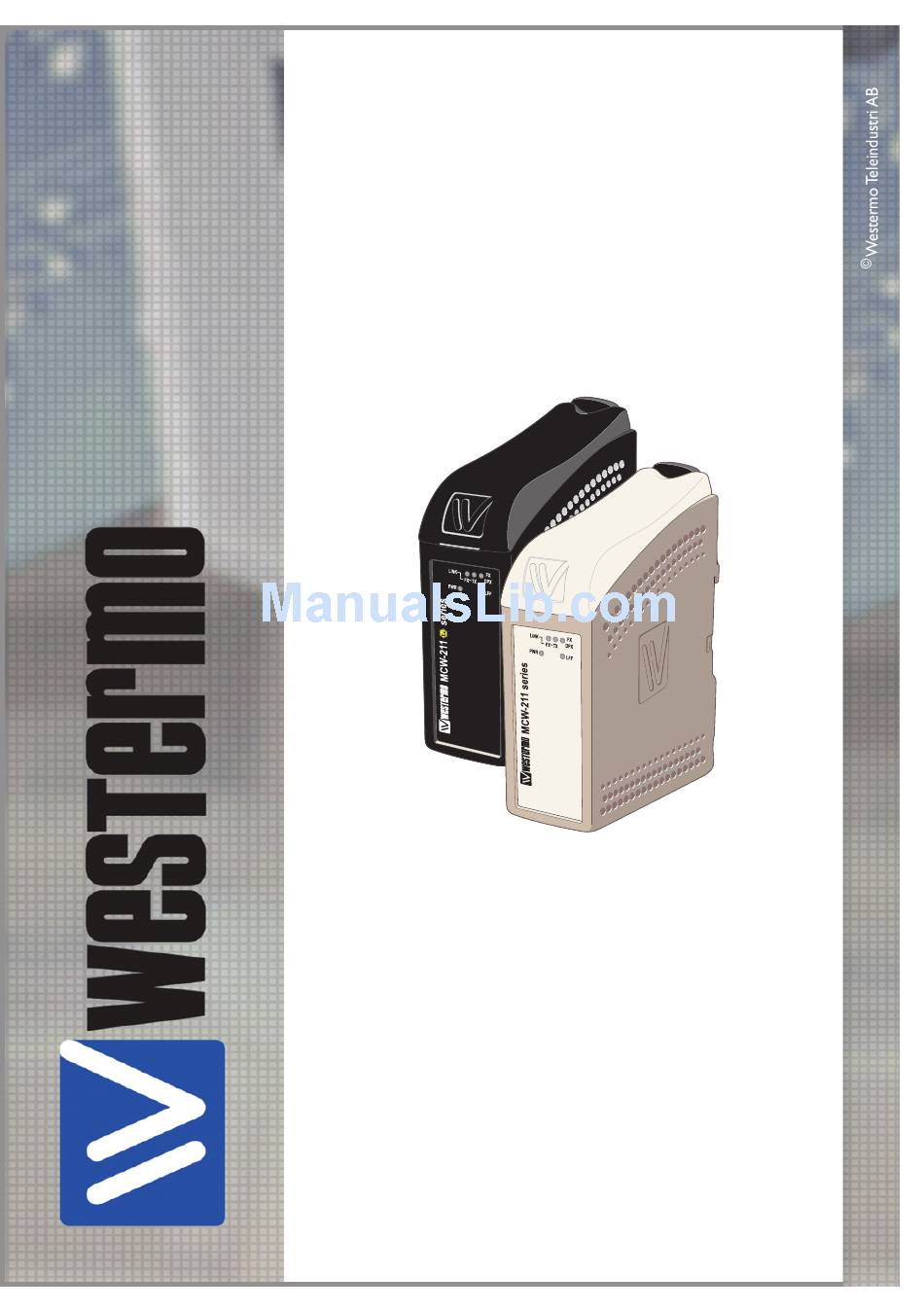

- Page 1 User Guide 6645-2204 MCW-211 S E R I E S Industrial Ethernet Media Converter www.westermo.com...
-
Page 2: Legal Information
Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 3: Before Installation
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical part may be damaged. If the unit is not working properly, contact the place of purchase, nearest Westermo dis- tributor office or Westermo Tech support. - Page 4 ATEX Information (Applicable for MCW-211 Ex only) General This unit is intended for use in Zone 2 hazardous location only. Marking II 3 G Ex nA IIC T4 Gc SPECIAL CONDITION WARNING – DO NOT SEPARATE WHEN ENERGIZED Indicate that this unit complies with relevant European standards that are harmonised with the 94/9/EC Directive (ATEX).
- Page 5 Ratings and safety control drawing Power (12 – 48) VDC; 200 mA –25ºC ≤ Ta ≤ +70ºC Ambient temperature Maximum surface temperature Temperatur class T4 (max 135 ºC ) Degree of protection IP21 Installation spacing Minimum 25 mm above / below and minimum 10 mm left / right Ethernet TX –...
-
Page 6: Special Condition For Safe Use
SPECIAL CONDITION FOR SAFE USE Ambient temperature: This unit is designed for use in extreme ambient temperature conditions according to the following: –25ºC ≤ Ta ≤ +70ºC Installation in an apparatus cabinet: This unit requires installation in an Ex certified apparatus cabinet suitable for the area of use and providing a degree of protection of at least IP54. -
Page 7: Maintenance
Note. Fibre Optic Handling Fibre optic equipment needs special treatment. It is very sensitive to dust and dirt. If the fibre will be disconnected from the modem the protective hood on the transmitter/ receiver must be connected. The protective hood must be kept on during transportation. The fibre optic cable must also be handle the same way. -
Page 8: Declaration Of Conformity
Declaration of Conformity Westermo Teleindustri AB Declaration of conformity The manufacturer Westermo Teleindustri AB SE-640 40 Stora Sundby, Sweden Herewith declares that the product(s) Type of product Model Art no Industrial Ethernet Media Converter MCW-211 series 3645-0001, -0010, -0020, -0030, -0040, -0050... -
Page 9: Type Tests And Environmental Conditions
Type tests and environmental conditions Electromagnetic Compatibility Phenomena Test Description Level EN 61000-4-2 Enclosure contact ± 4 kV Enclosure air ± 8 kV RF field AM modulated IEC 61000-4-3 Enclosure 10 V/m 80% AM (1 kHz), 80 – 2700 MHz Fast transient EN 61000-4-4 Signal ports... -
Page 10: Interface Specifications
Interface specifications Power Rated voltage 12 to 48 VDC Operating voltage 10 to 60 VDC Rated current 200 mA @ 12 VDC 100 mA @ 24 VDC 50 mA @ 48 VDC Rated frequency Inrush current I2t 0.03 A²s @ 12 VDC Startup current* 0.75 A peak Polarity... - Page 11 Location of interface ports and LED’s LED Indicators (for details see page 13) DIP switches are accessible under the lid Ethernet TX – RJ-45 Position Direction* Description In/Out In/Out TD– In/Out – – – – In/Out RD– – – – –...
- Page 12 Fibre optic power budget Model MCW-211-MM MCW-211-SM MCW-211-SM MCW-211-SM SC15 LC15 LC40 Transmitted 1310 nm 1310 nm 1310 nm 1310 nm wavelength Min. output –19 dBm –15 dBm –15 dBm –5 dBm power, transmitter Max. output –12 dBm –8 dBm –8 dBm 0 dBm power,...
-
Page 13: Led Indicators
LED indicators LED indicators are available on the front panel and on the RJ-45 TX connector. Status Description Internal power, initialising OK Slow flash Initialisation progressing Fast flash Initialisation error LINK TX No Ethernet link TX Good Ethernet link TX Flash Ethernet data is transmitted or received on TX interface... -
Page 14: Installation
Installation Mounting / Removal Before mounting or removing the unit: Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. use of wrist strap). Prevent access to hazardous voltages by disconnecting the unit from AC/DC mains supply and all other electrical connections. - Page 15 Configuration DIP switches are accessible under the lid on top of the unit. DIP switches are used to configure the unit. DIP-switch settings Before DIP-switch settings: Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. use of wrist strap). NOTE DIP-switch alterations are only effective after a power on.
-
Page 16: Factory Settings
TX Port settings Flow control setting Auto-negotiation and Flow control auto MDI / MDI-X disabled 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 disabled TX port Auto-negotiation and Flow control auto MDI / MDI-X enabled 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8... - Page 20 9 Chemin de Chilly 91160 CHAMPLAN Phone:+886 2 8911 1710 Tél : +33 1 69 10 21 00 • Fax : +33 1 69 10 21 01 E-mail: info@westermo.com E-mail : infos@westermo.fr Westermo Teleindustri AB have distributors in several countries, contact us for further information.
