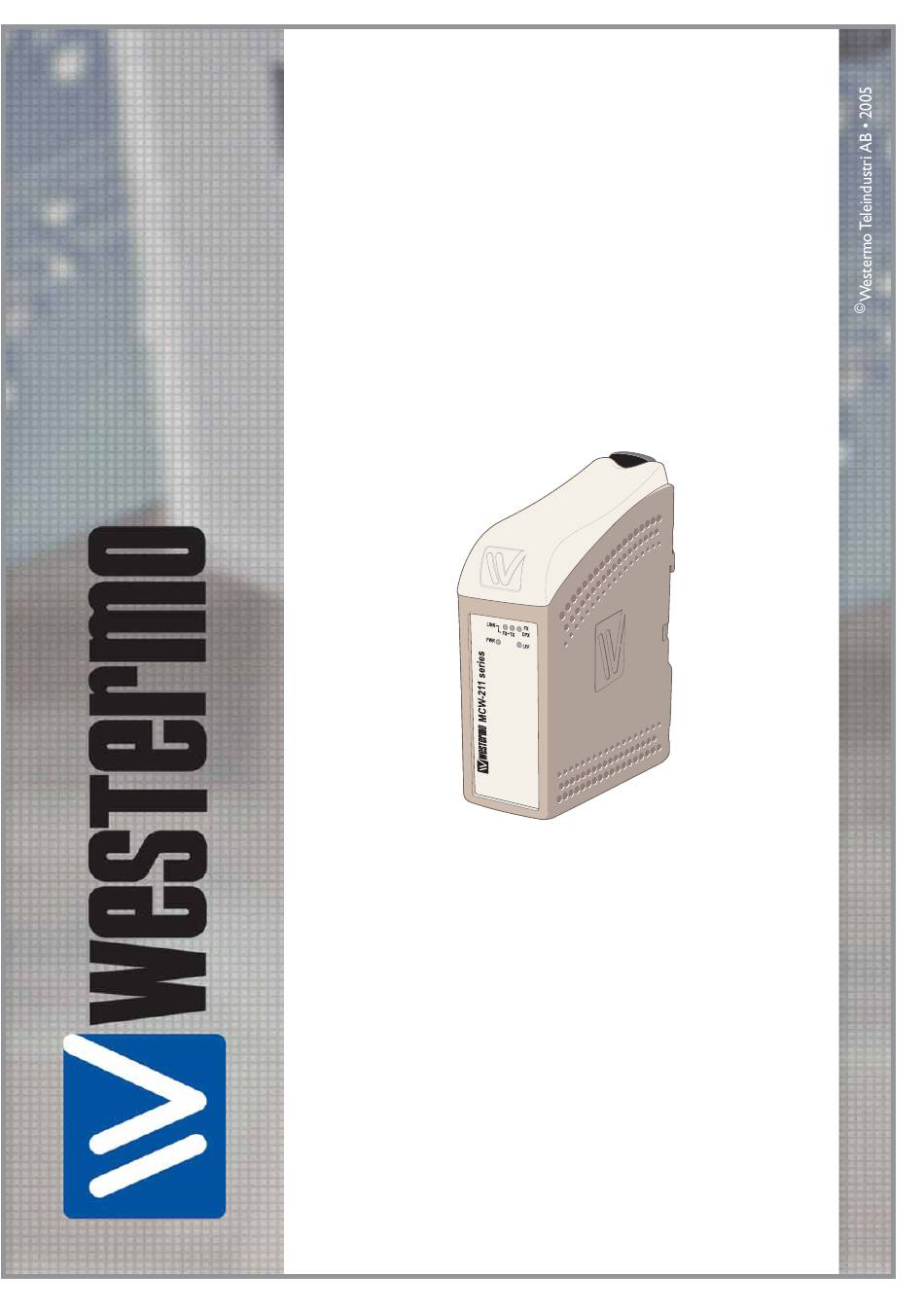

- Page 1 User Guide MCW-211 S E R I E S 6645-2201 Industrial Ethernet Media Converter www.westermo.com...
-
Page 2: Before Installation
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical part may be damaged. If the unit is not working properly, contact the place of purchase, nearest Westermo dis- tributor office or Westermo Tech support. -
Page 3: Functional Description
Functional description Introduction The MCW-211 is an Industrial Ethernet FX/TX Media Converter. The MCW-211 convert data between Ethernet 10/100Base-TX and 100Base-FX. The unit is easy to use and install caused by auto-negotiation of speed and duplex, auto- crossover and auto-polarity.The media converter is transparent for large frames (VLAN or QoS). - Page 4 Declaration of Conformity Westermo Teleindustri AB Declaration of conformity The manufacturer Westermo Teleindustri AB SE-640 40 Stora Sundby, Sweden Herewith declares that the product(s) Type of product Model Art no Installation manual DIN-rail MCW-211-MM-SC2 3645-0001 6645-2201 MCW-211-MM-ST2 3645-0010 MCW-211-SM-SC15 3645-0020...
-
Page 5: Agency Approvals And Standards Compliance
Agency approvals and standards compliance Type Approved Approval / Compliance Agency/ W-mo W-mo EN 61000-6-2, Immunity industrial environments W-mo EN 61000-6-4, Emission industrial environments Safety W-mo EN 60950, IT equipment Type tests and environmental conditions Electromagnetic Compatibility Phenomena Test Description Test levels EN 61000-4-2 Enclosure contact... -
Page 6: Interface Specifications
Interface specifications Power Rated voltage 12 to 48 VDC Operating voltage 10 to 60 VDC Rated current 200 mA @ 12 VDC 100 mA @ 24 VDC 50 mA @ 48 VDC Rated frequency Inrush current I 0.03A s @ 12 VDC Startup current* 0.75A peak Polarity... - Page 7 Ethernet FX Optical specification IEEE std 802.3. 2000 Edition Data rate 100 Mbit/s Duplex Full or half Connection SC, ST or LC Position Direction* Description Product marking Receive port Transmit port * Direction relative this unit Fibre optic power budget Model MCW-211-MM MCW-211-SM...
-
Page 8: Led Indicators
LED indicators LED indicators are available on the front panel and on the RJ-45 TX connector. Status Description Internal power, initialising OK Slow flash Initialisation progressing Fast flash Initialisation error LINK TX OFF No Ethernet link TX Good Ethernet link TX Flash Ethernet data is transmitted or received on TX interface LINK FX OFF... -
Page 9: Installation
Installation Mounting / Removal Before mounting or removing the unit: Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. use of wrist strap). Prevent access to hazardous voltages by disconnecting the unit from AC/DC mains supply and all other electrical connections. - Page 10 Configuration DIP switches are accessible under the lid on top of the unit. DIP switches are used to configure the unit. DIP-switch settings Before DIP-switch settings: Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. use of wrist strap). NOTE DIP-switch alterations are only effective after a power on.
-
Page 11: Flow Control Setting
TX Port settings Flow control setting Auto-negotiation and Flow control auto MDI / MDI-X disabled 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 disabled TX port Auto-negotiation and Flow control auto MDI / MDI-X enabled 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8... - Page 12 Tél : +33 1 69 10 21 00 • Fax : +33 1 69 10 21 01 Phone: +44(0)1489 580 585 • Fax.:+44(0)1489 580586 E-mail : infos@westermo.fr E-Mail: sales@westermo.co.uk Westermo Teleindustri AB have distributors in several countries, contact us for further information.
