Westermo MCW-211 Series User Manual

Industrial ethernet media converter
Hide thumbs Also See for MCW-211 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
www.westermo.com
MCW-211 Series
Industrial Ethernet Media Converter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCW-211 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Westermo MCW-211 Series

Summary of Contents for Westermo MCW-211 Series

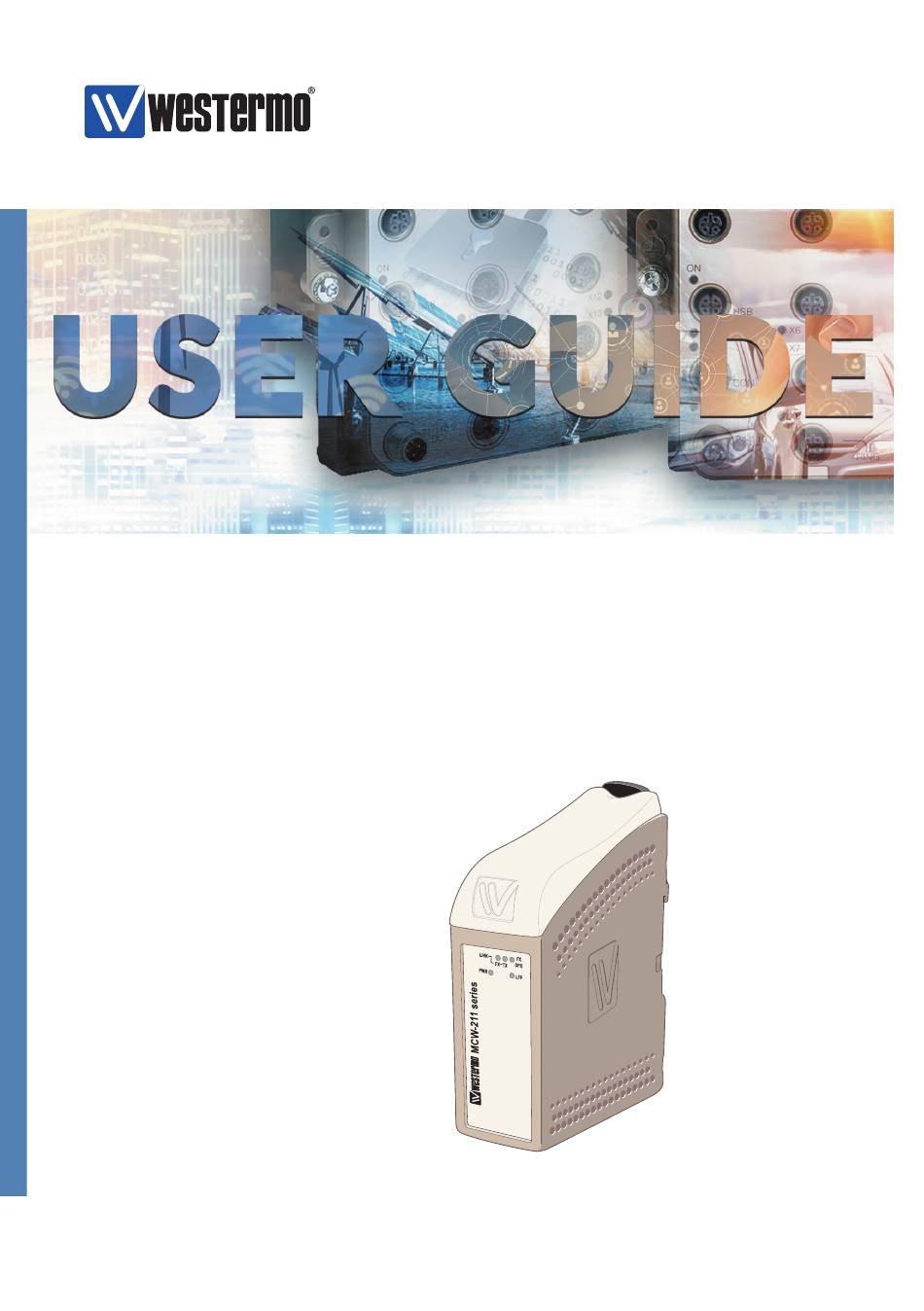

  • Page 1 MCW-211 Series Industrial Ethernet Media Converter...
  • Page 2 6645-2204...

  • Page 3: General Information

    Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused.

  • Page 4: Before Installation

    Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical part may be damaged. If the unit is not working properly, contact the place of purchase, nearest Westermo dis- tributor office or Westermo Tech support.

  • Page 5: Maintenance

    Note. Fibre Optic Handling Fibre optic equipment needs special treatment. It is very sensitive to dust and dirt. If the fibre will be disconnected from the modem the protective hood on the transmitter/ receiver must be connected. The protective hood must be kept on during transportation. The fibre optic cable must also be handle the same way.

  • Page 6: Simplified Eu Declaration Of Conformity

    10/100Base-T/TX: 1 port 100Base-FX: 1 port Simplified EU declaration of conformity Hereby, Westermo declares that the equipment is in compliance with applicable EU directives. The full EU declaration of conformity and other detailed information are available at the respective product page at www.westermo.com.

  • Page 7: Type Tests And Environmental Conditions

    Type tests and environmental conditions Electromagnetic Compatibility Phenomena Test Description Level EN 61000-4-2 Enclosure contact ± 4 kV Enclosure air ± 8 kV RF field AM modulated IEC 61000-4-3 Enclosure 10 V/m 80% AM (1 kHz), 30 – 2700 MHz Fast transient EN 61000-4-4 Signal ports...

  • Page 8: Interface Specifications

    Interface specifications Power Rated voltage 12 to 48 VDC Operating voltage 10 to 60 VDC Rated current 200 mA @ 12 VDC 100 mA @ 24 VDC 50 mA @ 48 VDC Rated frequency Inrush current I2t 0.03 A²s @ 12 VDC Startup current* 0.75 A peak Polarity...
  • Page 9 Location of interface ports and LED’s LED Indicators (for details see page 13) DIP switches are accessible under the lid Ethernet TX – RJ-45 Position Direction* Description In/Out In/Out TD– In/Out – – – – In/Out RD– – – – –...
  • Page 10 Fibre optic power budget Model MCW-211-MM MCW-211-SM MCW-211-SM MCW-211-SM SC15 LC15 LC40 Transmitted 1310 nm 1310 nm 1310 nm 1310 nm wavelength Min. output –19 dBm –15 dBm –15 dBm –5 dBm power, transmitter Max. output –12 dBm –8 dBm –8 dBm 0 dBm power,...

  • Page 11: Led Indicators

    LED indicators LED indicators are available on the front panel and on the RJ-45 TX connector. Status Description Internal power, initialising OK Slow flash Initialisation progressing Fast flash Initialisation error LINK TX No Ethernet link TX Good Ethernet link TX Flash Ethernet data is transmitted or received on TX interface...

  • Page 12: Installation

    Installation Mounting / Removal Before mounting or removing the unit: Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. use of wrist strap). Prevent access to hazardous voltages by disconnecting the unit from AC/DC mains supply and all other electrical connections.
  • Page 13 Configuration DIP switches are accessible under the lid on top of the unit. DIP switches are used to configure the unit. DIP-switch settings Before DIP-switch settings: Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. use of wrist strap). NOTE DIP-switch alterations are only effective after a power on.
  • Page 14 TX Port settings Flow control setting Auto-negotiation and Flow control auto MDI / MDI-X disabled 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 disabled TX port Auto-negotiation and Flow control auto MDI / MDI-X enabled 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8...
  • Page 16 Westermo • SE-640 40 Stora Sundby, Sweden Tel +46 16 42 80 00 Fax +46 16 42 80 01 E-mail: info@westermo.com www.westermo.com REV. D 6645-2204 2018-11 Westermo Network Technologies AB, Sweden...

This manual is also suitable for:

Mcw-211-sm sc15Mcw-211-sm lc15Mcw-211-sm lc40Mcw-211-mm-sc2Mcw-211-mm-st2Mcw-211-mm-lc2 ... Show all
