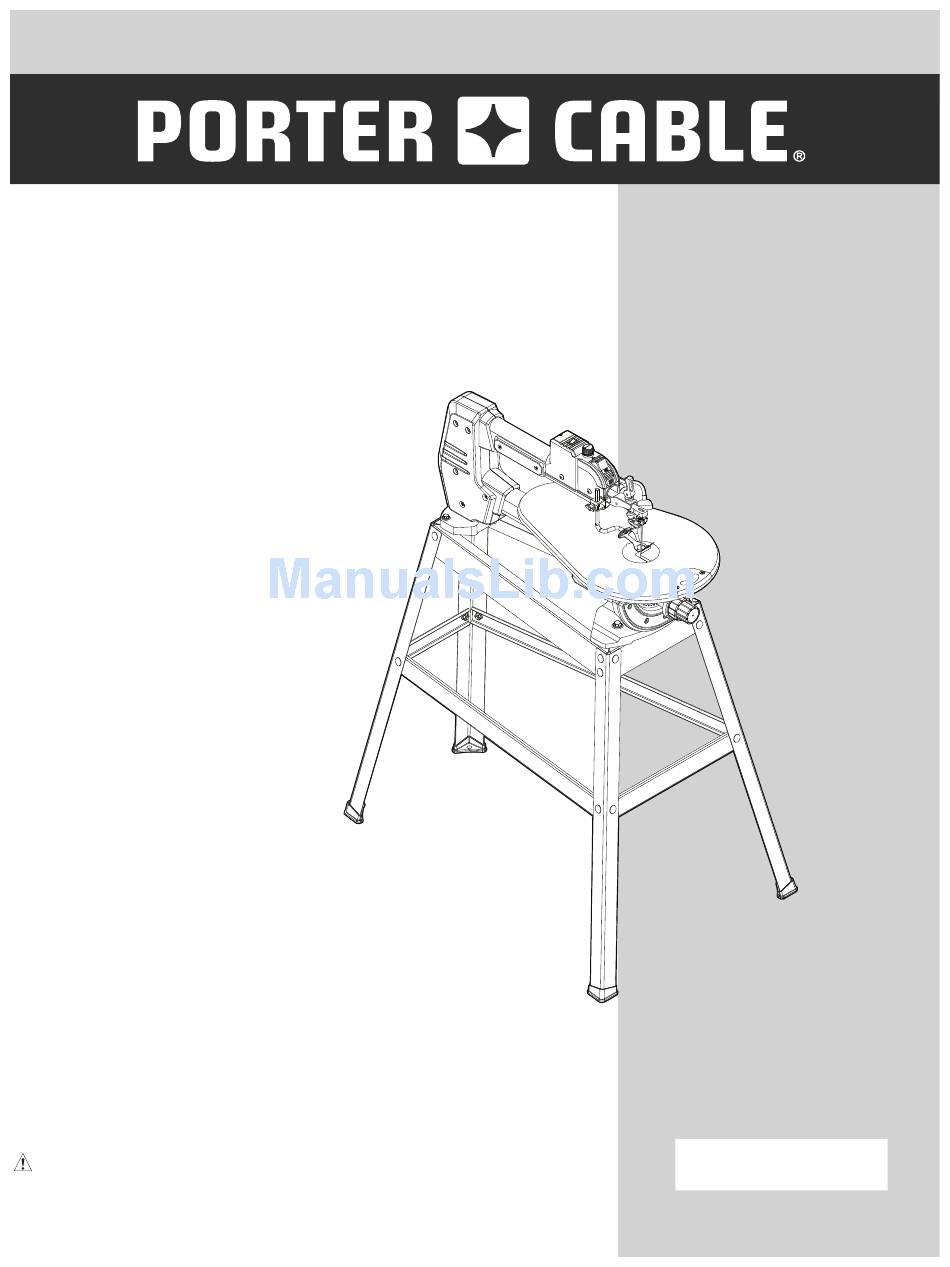

18 IN. (457 MM) VARIABLE SPEED
SCROLL SAW
SCIE SAUTEUSE 457 MM
(18 PO ) À VITESSE VARIABLE
SIERRA CALADORA DE
VELOCIDAD VARIABLE,
DE 457 MM (18 PULG.)
Instruction Manual
Manuel d'instructions
Manual de instrucciones
www.portercable.com
INSTRUCTIVO DE OPERACIÓN, CENTROS DE
SERVICIO Y PÓLIZA DE GARANTÍA.
CATALOG NUMBER
ADVERTENCIA: LÉASE ESTE INSTRUCTIVO
PCB375SS
ANTES DE USAR EL PRODUCTO.
Advertisement
Table of Contents
Related Manuals for Porter-Cable PCB375SS
Summary of Contents for Porter-Cable PCB375SS
- Page 1 SIERRA CALADORA DE VELOCIDAD VARIABLE, DE 457 MM (18 PULG.) Instruction Manual Manuel d’instructions Manual de instrucciones www.portercable.com INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA. CATALOG NUMBER ADVERTENCIA: LÉASE ESTE INSTRUCTIVO PCB375SS ANTES DE USAR EL PRODUCTO.
-
Page 2: Table Of Contents
TABLE Of CONTENTS SECTION PAGE PRODUCT SPECIfICATIONS ........................CALIfORNIA PROPOSITION 65......................... SAfETY GUIDELINES - DEfINITIONS ...................... POWER TOOL SAfETY ..........................SCROLL SAW SAfETY..........................ELECTRICAL REQUIREMENTS AND SAfETY ..................TOOLS NEEDED fOR ASSEMBLY ......................CARTON CONTENTS ..........................UNPACkING YOUR SCROLL SAW ......................kNOW YOUR SCROLL SAW ........................ -
Page 3: California Proposition 65
CALIfORNIA PROPOSITION 65 WARNING Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: ●... -
Page 4: Power Tool Safety
POWER TOOL SAfETY GENERAL SAfETY INSTRUCTIONS resistant lenses. They ARE NOT safety glasses. BEfORE USING THIS POWER TOOL NOTE: Glasses or goggles not in compliance with ANSI Z87. could seriously injure you when they Safety is a combination of common sense, staying alert break. -
Page 5: Scroll Saw Safety
SCROLL SAW SAfETY SPECIfIC SAfETY INSTRUCTIONS fOR 3.HOLD WORKPIECE fIRMLY against the table top. THIS SCROLL SAW 4.NEVER CUT MATERIAL that is too small to be held . READ AND UNDERSTAND all safety instructions safely. and operating procedures throughout the manual. Retain this manual as it contains important 5.DO NOT USE dull or bent blades. -
Page 6: Electrical Requirements And Safety
ELECTRICAL REQUIREMENTS AND SAfETY POWER SUPPLY AND MOTOR SPECIfICATIONS USE only 3-wire extension cords that have three-pronged grounding plugs with three-pole WARNING receptacles that accept the tool’s plug. Repair or replace damaged or worn cords immediately. To avoid electrical hazards, fire hazards, or damage to the tool, use proper circuit protection. - Page 7 This tool is intended for use on a circuit that has a receptacle like the one illustrated in Fig. 1. Fig. 1 shows a three-pronged electrical plug and receptacle that has a grounding conductor. If a properly grounded receptacle is not available, an adapter (Fig. 2) can be used to temporarily connect this plug to a two-contact grounded receptacle.
-
Page 8: Tools Needed For Assembly
TOOLS NEEDED fOR ASSEMBLY CARTON CONTENTS Supplied Not Supplied UNPACKING AND CHECKING CONTENTS Carefully unpack the scroll saw and all its parts, and compare against the list below and the illustration on the next page. With the help of an assistant place the saw 3 mm hex key on a secure surface and examine it carefully. -
Page 9: Unpacking Your Scroll Saw
UNPACKING YOUR SCROLL SAW... -
Page 10: Know Your Scroll Saw
KNOW YOUR SCROLL SAW Variable speed control knob Blade guard foot lock knob Blade tension lever LED work light Blade holder Blade holder lock knob 5 in. plain-end blade Expanded View Stand foot pad front LED work light ON/OFF switch ON/Off switch Blade guard foot Table insert... -
Page 11: Glossary Of Terms
GLOSSARY Of TERMS SCROLL SAW TERMS WOODWORKING TERMS BEVEL SCALE – Represents the degree of table angle BLADE TOOTH SET – The total width the blade will from 0° to 45° when the table is tilted for bevel cutting. cut based on the distance from the outside point of one bent tooth to the outside point of the next bent tooth BLADE GUARD fOOT –... -
Page 12: Assembly And Adjustments
ASSEMBLY AND ADJUSTMENTS Estimated Assembly Time: 25 - 40 Minutes. WARNING ● The stand is designed only for use with a scroll INSTALLING THE STAND (fIG. A) 1. Unpack all parts and group by type and size. Refer saw. to the table of loose parts list on page 8 & 9 for ●... -
Page 13: Plain-End Blade Removal And Installation
fig. E MOUNTING SCROLL SAW TO WORK SURfACE (fIG. C) 1. If mounting the scroll saw to a workbench instead of the provided stand, a solid wood bench is preferred over a plywood board to reduce noise and vibration. . The hardware to mount this saw is NOT supplied with the saw. -
Page 14: Pin-End Blade Removal And Installation
fig. G 3. Tilt the table to 0° and lock the table lock knob (7). ( Fig. H) 4. Insert the other end of the blade into the upper blade holder slot (), then tighten the upper blade holder lock knob (3). ( Fig. I) NOTE: ●... - Page 15 fig. L Pin-end blade removal (fIG. J, K) . To remove the blade, loosen the blade tension by lifting the blade tension lever (1). (Fig. J) fig. J Blade tension lever Release Tighten . Make sure the pins are properly located in the upper (4) and the lower (3) blade holders.
- Page 16 SAWDUST BLOWER (fIG. N) fig. O The sawdust blower () should be positioned to point to the blade and workpiece to blow sawdust out of the line- of-sight when cutting. It is not designed to blow all of the sawdust off the table. fig.
-
Page 17: Operation
OPERATION VARIABLE SPEED CONTROL AND ON/Off SWITCH RECOMMENDATIONS fOR CUTTING 1. When feeding the workpiece into the blade do not CAUTION force the leading edge of the workpiece into the for your own safety, always push the switch blade because the it will deflect the blade, reduce “Off”... - Page 18 fREEHAND CUTTING (fIG. Q) ANGLE CUTTING (fIG. Q, R, S) 1. Lay out desired design, or secure design to the WARNING workpiece (). To avoid injury, always keep your hands off the 2. Raise the blade guard foot (2) by loosening the blade underneath of the table during operating.
- Page 19 6. Remove the workpiece from the blade before Right Bevel Cutting (maximum 15 degrees) turning the scroll saw ON. Set the desired speed 1. Lay out or secure design to workpiece (1). by turning the speed control knob clockwise or 2.
- Page 20 INTERIOR CUTTING (fIG. U) 1. Lay out the design on the workpiece (1). Drill a 1/4 in. (6.4 mm) hole in the workpiece. . Lift the blade tension lever () and remove the blade (3). Refer to BLADE REMOVAL AND INSTALLATION. 3.
-
Page 21: Maintenance
MAINTENANCE LUBRICATION WARNING Ball bearings in the scroll saw are packed with grease at for your own safety, turn the switch off and remove the factory and require no further lubrication. the plug from the power source outlet before maintaining or lubricating your scroll saw. Use only mild soap and a damp cloth to clean the tool. -
Page 22: Accessories And Attachments
Instruction Manual for that Since accessories, other than those offered by accessory. Porter-Cable, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only Porter-Cable recommended accessories should be used with this product. -
Page 23: Troubleshooting Guide
Use only identical replacement parts. for a parts list or to order parts, visit our service website at www.portercable. com. You can also order parts from your nearest Porter-Cable factory Service Center or Porter-Cable Authorized Warranty Service Center. Or, you can call our Customer Care Center at (888) 609-9779. -
Page 24: Parts List
PARTS LIST 18 IN. (457 MM) VARIABLE SPEED SCROLL SAW PARTS LIST I.D. Description Size Q’ty I.D. Description Size Q’ty 0A98 COMPRESSION SPRING 2ECB WIRE ROPE ASS’Y 0AM3 WASHER 2EZ1 CR. RE. TRUSS HD. SCREW M5*0.8-10 0C10 PLAIN-END BLADE 5” 2FBG CR. - Page 25 18 IN. (457 MM) VARIABLE SPEED SCROLL SAW SCHEMATIC...
- Page 26 18 IN. (457 MM) VARIABLE SPEED SCROLL SAW PARTS LIST & SCHEMATIC fOR STAND I.D. Description Size Q’ty 2YPN WARNING LABEL 36FN SIDE BRACKET - UPPER SUPPORT 36FQ FRONT BRACKET - LOWER SUPPORT 36FR REAR BRACKET - LOWER SUPPORT 36FS SIDE BRACKET - LOWER SUPPORT 36FT REAR BRACKET - UPPER SUPPORT...
- Page 27 NOTES...
-
Page 28: Warranty
In addition to the warranty, PORTER-CABLE tools are covered by our: 1 YEAR fREE SERVICE: PORTER-CABLE will maintain the tool and replace worn parts caused by normal use, for free, any time during the first year after purchase.
