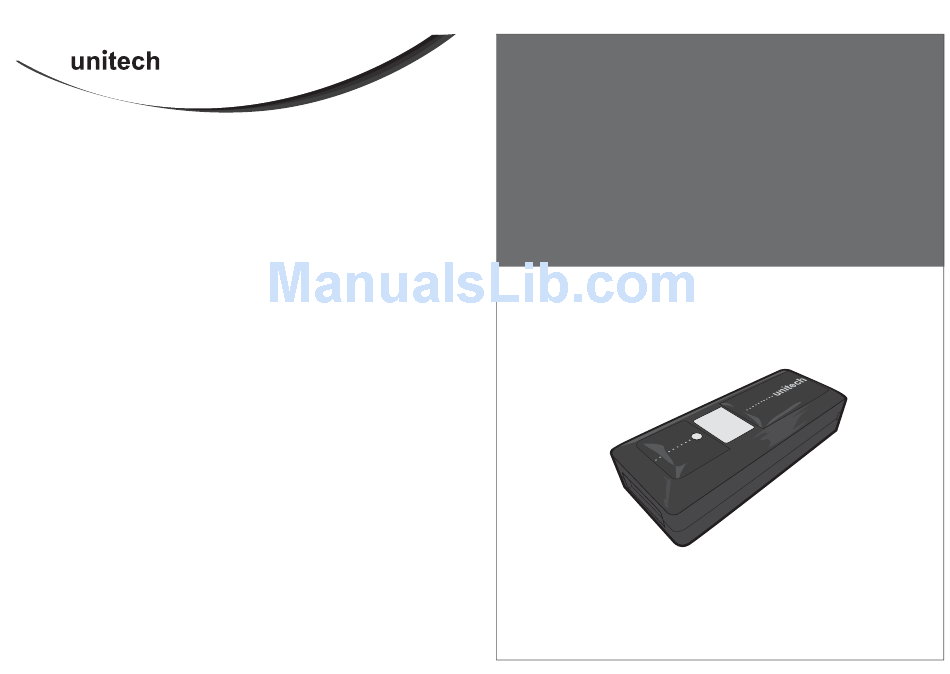

- Page 1 MS910 Wireless Barcode Scanner Quick Guide Full user’s manual is available on the enclosed CD. Version 1.0 400947G...
- Page 2 FCC WARNING STATEMENT WARNING AND CAUTION This equipment has been tested and found to comply with the limits for a Class B digital 1. Take any metals into contact with the terminals in connectors. device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide 2.
-
Page 3: Specifications
OUT OF THE BOX INTRODUCTION Trigger because we care LED Indicator Mini Wireless Mini USB port Exit Window Barcode Reader (w/ Protective Cover) Hard Reset Button SPECIFICATIONS (insert pin into the hole) Light source 625nm visible red LED Scan rate 240 scans/sec Sensor Linear CMOS sensor... -
Page 4: Beeper Indication
BEEPER INDICATION GETTING STARTED Single long beep Power up Single beep Good read Single short beep The scanner reads a Code39 of ASCII in configuration procedure Two beeps Wireless connection Two short beeps The scanner successfully reads a configuration barcode Five beeps Low power... -
Page 5: Getting Connected
GETTING CONNECTED PINCODE SETUP There are two modes of wireless communication: . E042$ STEP 1 . E032$ *.E042$* *.E032$* Pincode Start 1. Press the trigger for 1 second to activate the scanner. 2. Scan [DISCONNECT] STEP 2 3. Scan [SPP]; the scanner will emit 10 beeps. 4. -
Page 6: Numeric Bar Codes
NUMERIC BARCODES - 9 - - 10 -... -
Page 7: Power Off Timeout
POWER OFF TIMEOUT SMARTPHONE CONNECTION Android The timeout before automatic power-off to save power. . B017$ *.B017$* 1. Pair with the scanner via 1 MIN [SPP]. (page 7) 2. Install Bluetooth Connect.apk (available on CD) and enter the program. . B018$ 3. - Page 8 GENERAL SETTINGS READING MODE . A001$ . F002$ TRIGGER DEFAULT . P023$ . F003$ RESET TOGGLE . A007$ . F001$ CHECK FLASH VERSION BEEPER . F005$ CONTINUOUS . F012$ BEEP OFF . F006$ CONTINUOUS AUTO OFF - 13 - - 14 -...
- Page 9 KEYBOARD LAYOUT . C010$ . C014$ ENGLISH ITALIAN (USA) . C018$ . C017$ ENGLISH CZECH (UK) (QWERTY) . C012$ . C022$ CZECH FRENCH (QWERTZ) . C021$ . C011$ GERMAN HUNGARIAN . C009$ . C016$ JAPAN SWISS (106 key) . C013$ .
-
Page 10: Gs1 Databar Expanded
ENABLE SYMBOLOGIES . G010$ . A002$ ENABLE CODE 93 ALL CODE . N017$ . K010$ CODE 32 IATA . L010$ . L014$ UK PLESSEY TELEPEN . L001$ . N032$ GS1 DATABAR . N010$ . N001$ INDUSTRIAL GS1 DATABAR 2 OF 5 LIMITED . -
Page 11: Test Barcodes
TERMINATOR TEST BARCODES . D012$ Code 39 . D011$ CODE-39 TEST Interleaved 2 of 5 . D013$ CR + LF 9876543210 Code 128 . D010$ NONE 12345678 . D015$ SPACE . D014$ - 19 - - 20 -...
