Sena SR10 User Manual

Bluetooth 2-way radio adapter
Hide thumbs Also See for SR10:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Users Guide
www.senabluetooth.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR10 and is the answer not in the manual?

Questions and answers

Related Manuals for Sena SR10

Summary of Contents for Sena SR10

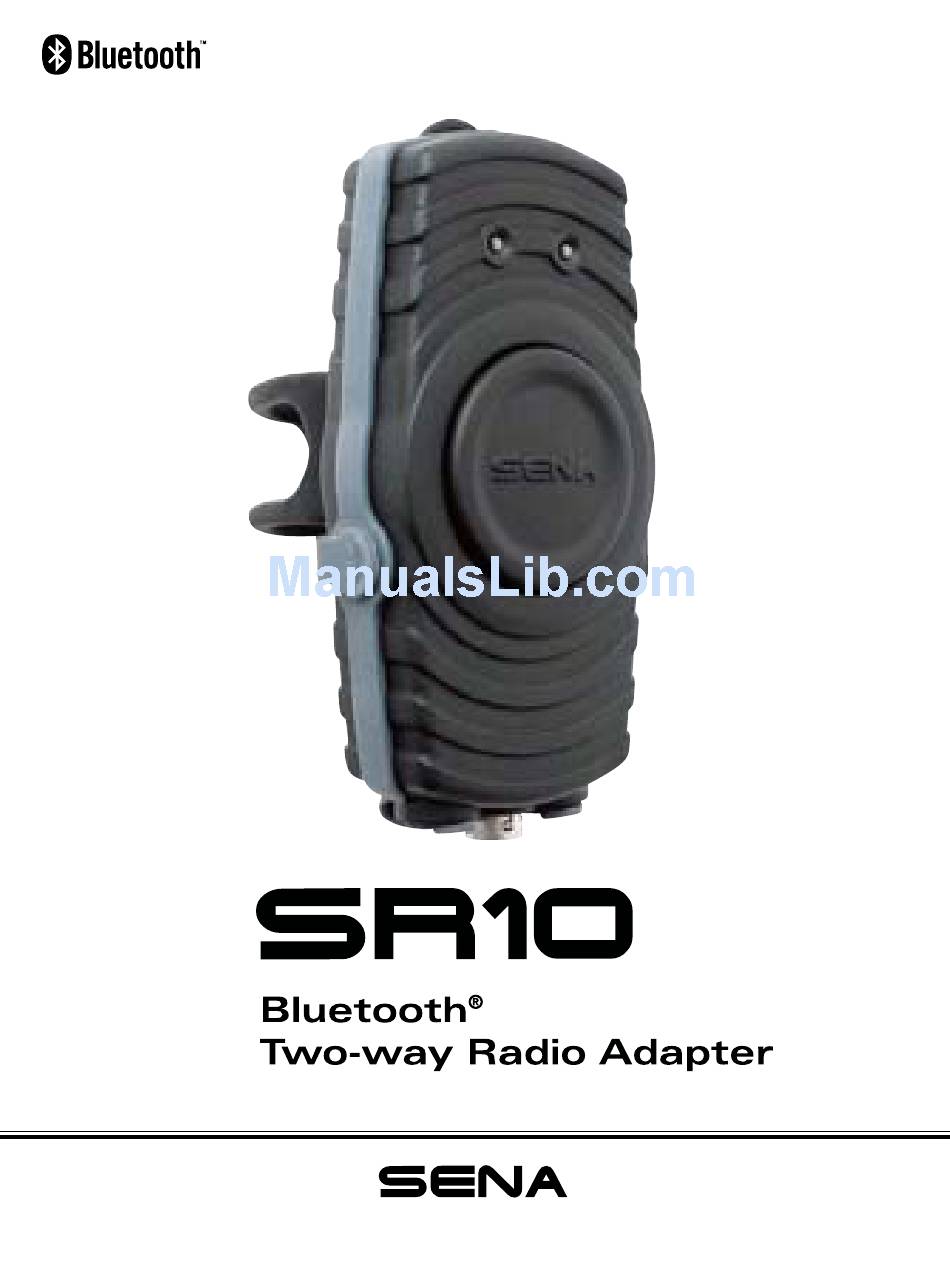

  • Page 1 Users Guide www.senabluetooth.com...

  • Page 2: Table Of Contents

    POWERING ON/OFF AND CHARGING • Powering On • Powering Off • Charging • Low Battery Warning PAIRING THE SR10 WITH BLUETOOTH DEVICES • Bluetooth Headset Pairing • Bluetooth Mobile Phone Pairing USING THE SR10 • Using Two-way Radios • Installing Wired PTT Button •...
  • Page 3 • Fault Reset QUICK REFERENCE BATTERY INFORMATION MAINTENANCE AND CARE DISPOSAL CERTIFICATION AND SAFETY APPROVALS • FCC Compliance Statement • FCC RF Exposure Statement • FCC Caution • CE Declaration of Conformity • Industry Canada Statement • Bluetooth License WAIVER AND GENERAL RELEASE •...

  • Page 4: Introduction

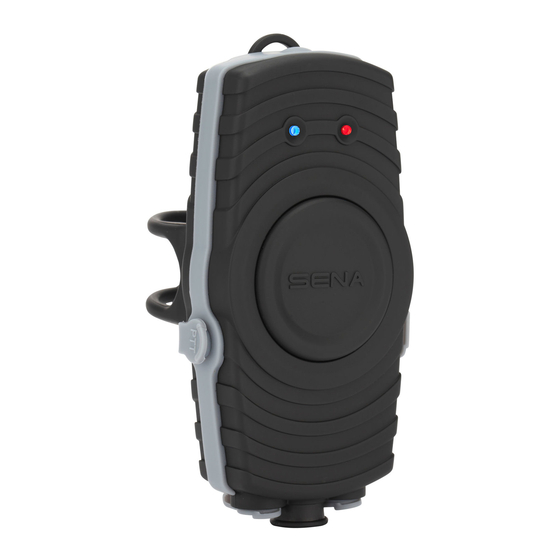

    INTRODUCTION Thank you for choosing the SENA SR10. The SR10 is a Class 1 Bluetooth two-way radio adapter and mobile phone hands-free gateway based on Bluetooth 2.1+EDR technology. Users can connect various two-way radios in the market with the SR10 and connect wirelessly to a variety of Bluetooth communication headsets.
  • Page 5 The SR10 can cover such a variety of applications including motorcycle CB communications, outdoor sports activities, event security, hunting, motorsports pit crew and other forms of intercom communications. Please read this user’s guide carefully before using the SR10. Also refer to www.senabluetooth.com for the latest version of the user’s guide and additional information related to SENA Bluetooth products.
  • Page 6 Technical Specifications: • Bluetooth v2.1+EDR, Class1 • Supporting profiles: Headset Profile, Hand-Free Profile (HFP) • Operation time: 12 hours • Standby time: 10 days • Batter charging time: 3.5 hours • Lithium polymer battery • Dimensions: 108 mm x 52 mm x 29 mm (4.3 in x 2.0 in x 1.1 in) •...

  • Page 7: Package Contents

    PACKAGE CONTENTS • Main Unit Pairing Button • Bluetooth Headset Pairing Mode • Mobile Phone Pairing Mode PTT Button • Two-way Radio Activation • Audio channel forced open DC Power Charging & Firmware Upgrade Port AUX2 • Mobile Phone, GPS Navigation, Radar/Laser Detector Mini-DIN port for two-way radio devices...
  • Page 8 • DC Power Charger • USB Power Cable • 3.5mm Audio Jack Cable • Wired PTT Button Extension • Belt Clip Kit • Handlebar Mounting Kit...

  • Page 9: Installing The Sr10

    INSTALLING THE SR10 • Installing on the Handle Bar 1. Place the rubber on the back of the main unit. 2. Put the joint pad on top of the rubber, and tighten the screw. 3. Place the main unit on the handle bar, wind the rubber band, and hang it on the hook.

  • Page 10: Powering On/Off And Charging

    LED light turns on. • Powering Off Press pairing button and PTT button at the same time for about 1 second to turn the power off. The Red LED light turns on for about 3 seconds. The SR10 is now powered off.

  • Page 11: Charging

    • Charging The red LED light is visible while charging. It takes about 3.5 hours to be completely charged. When it is completely charged, the LED turns to blue. • Low Battery Warning When the battery is running low, the red LED light will flash.

  • Page 12: Pairing The Sr10 With Bluetooth Devices

    1. Turn on the Bluetooth Headset and enter pairing mode, following your Bluetooth Headset manual. 2. Turn on the SR10 and press and hold the pairing button for 5 seconds until the LED flashes red and blue alternatively. 3. When the pairing is successful, the blue LED flashes slowly.

  • Page 13: Using The Sr10

    USING THE SR10 • Using Two-way Radios 1. When SR10 is turned on and connected with a hand held two-way radio, the audio from the two-way radio will be directly sent to your Bluetooth Headset. You can use the Bluetooth headset as a hands-free device for the two-way radio.

  • Page 14: Ports And Cables

    • Ports and Cables The SR10 has one main port and two AUX ports for wired connection with other devices. Below is a list of compatible cables and devices: • Main: Mini-DIN two-way radio cable * • AUX1: 3.5mm 3-pole audio jack cable for GPS, radar detectors or laser detector ** •...

  • Page 15: Using Mobile Phone

    • Audio Channel Open and Close The SR10 has to have an audio channel to the Bluetooth headset to redirect audio from the connected devices; two-way radio, mobile phone, GPS or radar detector. As soon as an incoming audio...
  • Page 16 Users can open and close the audio channel manually. To open or close an audio channel manually, double tap the PTT button on the SR10 or the wired PTT button extension. It works in toggle mode. When the incoming audio input level from the connected devices...

  • Page 17: Reset To Factory Default Settings

    SR10 returns to standby mode. • Fault Reset If the SR10 is not working properly or is in a faulty status for any reason, you may reset by pushing the small reset button at the top of the SR10 main unit.

  • Page 18: Quick Reference

    QUICK REFERENCE • Buttons Button Description Duration Pairing button + Power-on Solid blue PTT button Power-off 1 sec Solid red Pairing Bluetooth headset 5 sec Blue & red button pairing alternatively flashing Mobile phone 8 sec Red flashing pairing Factory reset 12 sec Solid red Factory reset...

  • Page 19: Battery Information

    The battery can be charged and discharged hundreds of times, but it will eventually wear out. Recharge the battery only with SENA approved chargers designated for this device. Use of an unapproved charger may present a risk of fire, explosion, leakage, or other hazard.

  • Page 20: Maintenance And Care

    MAINTENANCE AND CARE The SR10 should be treated with care and the following suggestions will help you protect your warranty coverage. 1. Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged.

  • Page 21: Disposal

    DISPOSAL The crossed-out wheel bin symbol on the product, literature, or packaging reminds you that all electrical and electronic products, batteries, and accumulators must be taken to separate collection at the end of their working life. This requirement applies to the European Union and other locations where separate collection systems are available.

  • Page 22: Certification And Safety Approvals

    CERTIFICATION AND SAFETY APPROVALS • FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: - This device may not cause harmful interference, and - This device must accept any interference received, including interference that may cause undesired operation.

  • Page 23: Fcc Rf Exposure Statement

    try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

  • Page 24: Ce Declaration Of Conformity

    • CE Declaration of Conformity This product is CE marked according to the provisions of the R&TTE Directive (99/5/EC). Hereby, SENA declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information please consult http://www.senabluetooth.com.

  • Page 25: Bluetooth License

    • Bluetooth License The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by SENA is under license. Other trademarks and trade names are those of their respective owners The SR10 is compliant with and adopts the Bluetooth® Specification 2.1+EDR and has successfully passed all interoperability tests that are...

  • Page 26: Waiver And General Release

    If you do not accept all terms of this agreement, you should immediately return the product for a full refund. By using the SR10, you agree to be bound to this agreement and forfeit the right to sue. Using a communication device...
  • Page 27 Device under any circumstances or conditions and irrespective of jurisdiction. SENA will not be responsible for any physical damages, irrespective of reasons, conditions or circumstances, including malfunctioning of the Device, and all risks associated with operating it rest solely and entirely with the user of this Device, irrespective of whether the Device is used by the original purchaser or any third party.
  • Page 28 SENA hereby notifies you that using this Device may also be in contravention to local, federal, state or national laws or regulations, and that any use of the Device is entirely at your sole risk and responsibility. 1. You, your heirs, legal representatives, successors or assigns,...
  • Page 29 further confirm that you will not consume any alcohol that may affect your alertness or any mind-altering substance, and will not carry, use or consume these substances before or during the use of the Device. 4. You fully acknowledge our warnings and understand that: (a) risks and dangers exist in using the Device while in traffic, including but not limited to injury or illness, strains, fractures, partial and/or total paralysis, death or other ailments that could cause serious...

  • Page 30: Two-Year Limited Warranty

    (a) any misapplication or misuse of the Product; (b) failure of Customer to adhere to any of SENA’ s specifications or instructions; (c) neglect of, abuse of, or accident to, the Product; or (d) any associated or complementary equipment or software not furnished by SENA.

  • Page 31: Limitation Of Liability

    SENA, and to use the original shipping container or equivalent. • Limitation of Liability EXCEPT AS EXPRESSLY PROVIDED HEREIN, SENA MAKES NO WARRANTY OF ANY KIND, EXPRESSED OR IMPLIED, WITH RESPECT TO ANY EQUIPMENT, PARTS OR SERVICES PROVIDED PURSUANT...

  • Page 32: Return For Full Refund

    • Return for Full Refund IF YOU ARE UNWILLING TO ACCEPT AND AGREE TO THE ABOVE CONDITIONS, YOU MAY RETURN THIS DEVICE TO SENA FOR A FULL REFUND, PROVIDED THAT YOU DO SO NO LATER THAN 14 BUSINESS DAYS FOLLOWING THE PURCHASE OF THE DEVICE AND SUBJECT TO THE WRAPPING BEING INTACT.

  • Page 33: Warning

    WARNING SENA informs that using this device in public traffic may not be authorized by the law. Please check your local law and use this device only out of public traffic such as private properties or closed circuits. SENA denies any liability should you choose not...
  • Page 34 V1.0.0 www.senabluetooth.com...
