- Page 1 SR10 ® Bluetooth Two-way Radio Adapter SENA Users Guide www.senabluetooth.com...
-
Page 2: Table Of Contents
| SR10 CONTENTS INTRODUCTION ........................3 PACKAGE CONTENTS ......................4 INSTALLING THE SR10 ......................5 POWERING ON/OFF AND CHARGING .................. 6 Powering On ........................6 Powering Off ........................6 Charging ..........................6 Low Battery Warning ......................6 PAIRING THE SR10 WITH BLUETOOTH DEVICES ............... 7 Bluetooth Headset Pairing .................... -
Page 3: Introduction

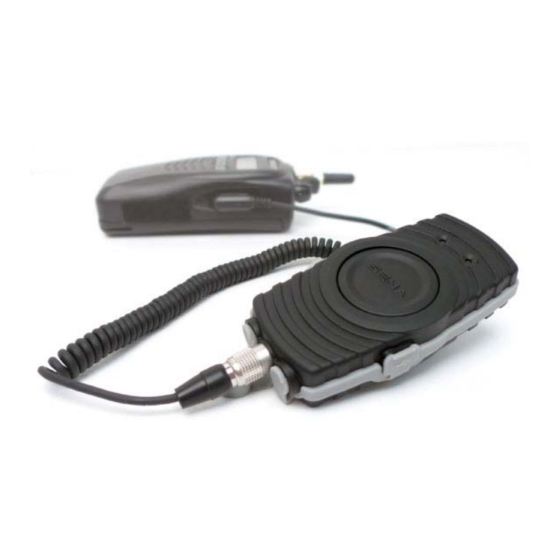

| SR10 INTRODUCTION Thank you for choosing the SENA SR10, Bluetooth Two-way Radio adapter. The SR10 is a Class 1 Bluetooth Two-way Radio adapter based on Bluetooth 2.1+EDR technology. You can connect various 2-way radios that are in the market today with the SR10 and connect wirelessly to a variety of Bluetooth communication headsets. -
Page 4: Package Contents
| SR10 PACKAGE CONTENTS Main Unit Pairing Button Bluetooth Headset Pairing Mode Mobile Phone Pairing Mode PTT Button 2-way Radio Activation Power On/Off Button DC Power Charging Port AUX2 Mobile Phone, GPS Navigation, Radar Detector AUX1 ... -
Page 5: Installing The Sr10
| SR10 INSTALLING THE SR10 Installing on the Handle Bar 1. Place the rubber on the back of the main unit. 2. Put the joint pad on top of the rubber, and tighten the screw. 3. Place the main unit on the handle bar, wind the rubber band, and hang it on the hook. -
Page 6: Powering On/Off And Charging
| SR10 POWERING ON/OFF AND CHARGING To power on and off the adapter, you don’t need to press and hold any button for several seconds. Just short press the Pairing Button and the PTT Button simultaneously, and you will get quick on-and-off convenience. Powering On Press and hold the Pairing and the PTT button at the same time for about 1 second to turn the power on. -
Page 7: Pairing The Sr10 With Bluetooth Devices
| SR10 PAIRING THE SR10 WITH BLUETOOTH DEVICES Before pairing with Bluetooth devices, SR10 must be in Pairing mode. SR10 can be switched to pairing mode by pressing the pairing button for 3 seconds. When SR10 is in pairing mode, the blue LED light will flash, and SR10 is now ready to pair with other devices. -
Page 8: Using The Sr10
| SR10 USING THE SR10 Using 2-way Radio Devices When SR10 is turned on and connected with the 2-way radio device, the audio from the 2-way radio will be directly sent to your Bluetooth Headset. To talk using the 2-way radio through SR10, press and hold the PTT button or wired PTT button until you finish talking. -
Page 9: Reset To Factory Default Settings
| SR10 For Wired Connection Mobile phones must be connected to the AUX2 port for wired connection. Other instructions are the same as for the wireless connection. Reset to Factory Default Settings To restore the SR10 to factory default settings, press and hold the Pairing Button for 12 seconds until the LED shows solid red and blue. -
Page 10: Optional Accessories
| SR10 OPTIONAL ACCESSORIES To connect with two-way radio devices, device-specific optional accessory cables are required. The SR10 does not include these optional cables in its package; you need to purchase them separately. Two-way Radio Cables (6 types) Kenwood with twin-pin connector ... -
Page 11: Quick Reference
| SR10 QUICK REFERENCE Button Description Duration Pairing Power-on Solid blue button + PTT Power-off 2 sec Solid red button Blue & Red Bluetooth Headset pairing 3 sec alternatively Pairing flashing Mobile phone pairing 6 sec Red flashing button Factory reset 12 sec Solid red 2-way radio transferring a... -
Page 12: Battery Information
The battery can be charged and discharged hundreds of times, but it will eventually wear out. Recharge the battery only with SENA approved chargers designated for this device. Use of an unapproved charger may present a risk of fire, explosion, leakage, or other hazard. -
Page 13: Maintenance And Care
| SR10 MAINTENANCE AND CARE The SR10 should be treated with care and the following suggestions will help you protect your warranty coverage. Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged. Do not store the device in hot areas. -
Page 14: Disposal
| SR10 DISPOSAL The crossed-out wheel bin symbol on the product, literature, or packaging reminds you that all electrical and electronic products, batteries, and accumulators must be taken to separate collection at the end of their working life. This requirement applies to the European Union and other locations where separate collection systems are available. -
Page 15: Certification And Safety Approvals
| SR10 CERTIFICATION AND SAFETY APPROVALS FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. -
Page 16: Ce Declaration Of Conformity
® The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by SENA is under license. Other trademarks and trade names are those of their respective owners ® The SR10 is compliant with and adopts the Bluetooth Specification 2.1+EDR and has... -
Page 17: Waiver And General Release
(including attorneys fees) and holding SENA harmless for any bodily injuries, harm or death as well as losses or damages in goods, to any Vehicles including your own, or to any property or asset that belong to you or to third parties, any of which may result from using the Device under any circumstances or conditions and irrespective of jurisdiction. - Page 18 | SR10 damages to or in respect to any person or property however caused, WHETHER ARISING FROM THE NEGLIGENCE OR OTHERWISE, and which may hereafter accrue to you on some future date as a result of said use, to the fullest extent permitted by law. You fully understand and assume the risks in using the Device, including risk of negligent acts or omissions by others.
-
Page 19: Two-Year Limited Warranty
Product and is not assignable or transferable to any subsequent purchaser/end-user. This warranty is limited to the repair and/or replacement, at SENA’s discretion, of defective or non-conforming Product, and SENA shall not be responsible for the failure of the Product to perform specified functions, or any other non- conformance caused by or attributable to: (a) any misapplication or misuse of the Product;... -
Page 20: Return For Full Refund
Return for Full Refund IF YOU ARE UNWILLING TO ACCEPT AND AGREE TO THE ABOVE CONDITIONS, YOU MAY RETURN THIS DEVICE TO SENA FOR A FULL REFUND, PROVIDED THAT YOU DO SO NO LATER THAN 14 BUSINESS DAYS FOLLOWING THE PURCHASE OF THE DEVICE AND SUBJECT TO THE WRAPPING BEING INTACT. -
Page 21: Warning
| SR10 WARNING SENA informs that using this device in public traffic may not be authorized by the law. Please check your local law and use this device only out of public traffic such as private properties or closed circuits. If the simultaneous use of both ear speakers while riding a motorcycle is prohibited by your local law, please use only a single ear speaker while riding.
